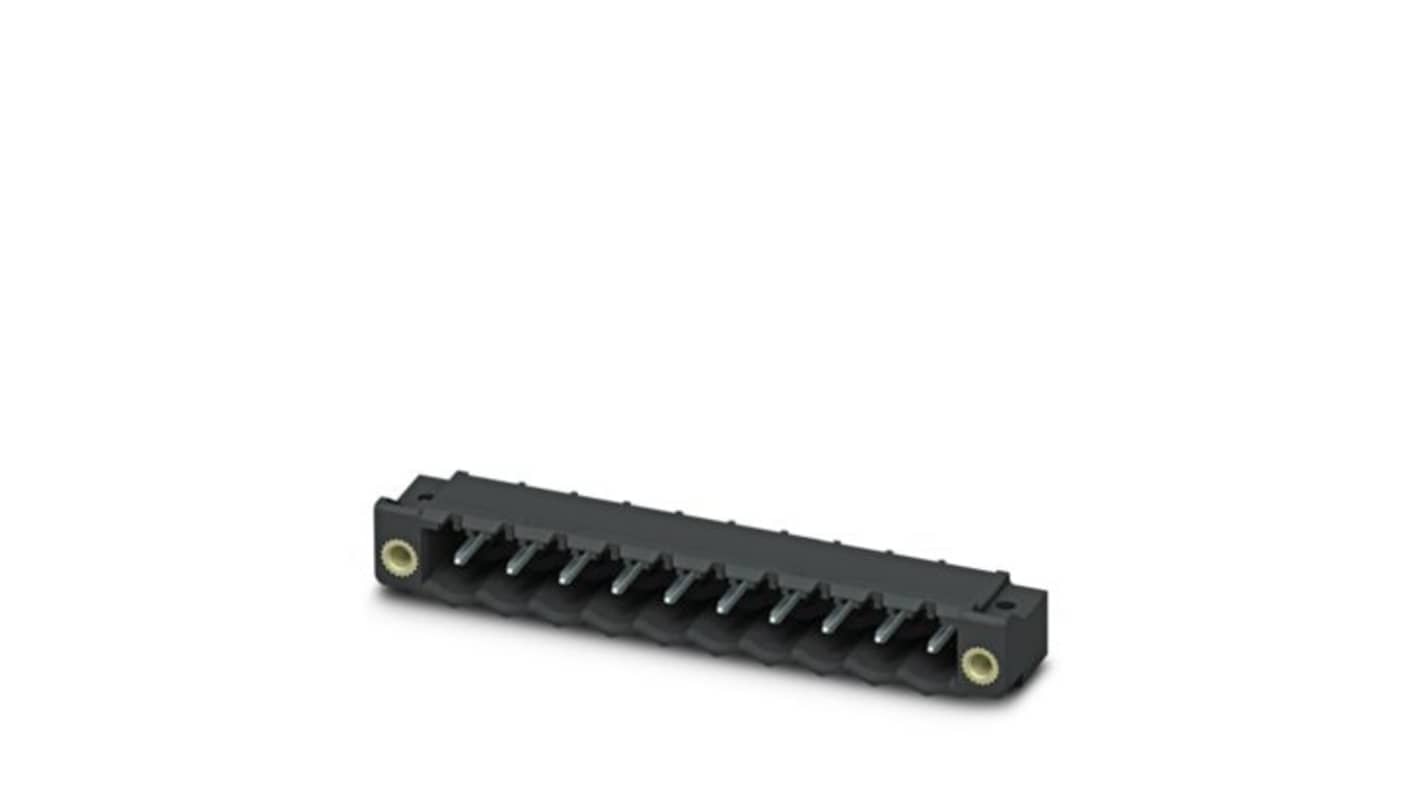

Phoenix Contact Wave Soldering Mount PCB Header, 10 Contact(s), 5.08 mm Pitch, 1 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£310.99

(exc. VAT)

£373.19

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£310.99£6.22

*price indicative

RS Stock No.:
638-513
Mfr. Part No.:
1792708
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Current

12A

Pitch

5.08mm

Number of Contacts

10

Housing Material

Liquid Crystal Polymer

Number of Rows

1

Shrouded/Unshrouded

Unshrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Termination Type

Solder

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Contact Gender

Male

Tail Pin Length

2.6mm

Mating Pin Length

2.6mm

Standards/Approvals

cULus Recognised, IEC 60068-2-27:2008-02, IEC 60068-2-6:2007-12, IEC 60068-2-70:1995-12, IEC 60068-2-82/JEDEC JESD 201, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, VDE

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Header is engineered for optimal integration into surface mount technology processes, making it an ideal choice for compact device designs. This innovative connector supports a multitude of applications with its ten potential connections, providing a reliable interface for various electronic components. The product features a robust black housing made from LCP, ensuring durability and performance in demanding environments. Designed to accommodate linear pinning layouts, it offers excellent mechanical stability through its lock-and-release threaded flange.

Constructed with high quality materials for ensuring longevity and reliability

Supports reflow soldering methods enhancing assembly efficiency

Provides excellent mechanical stability with its screwable flange design

Meets stringent environmental compliance standards making it eco friendly
