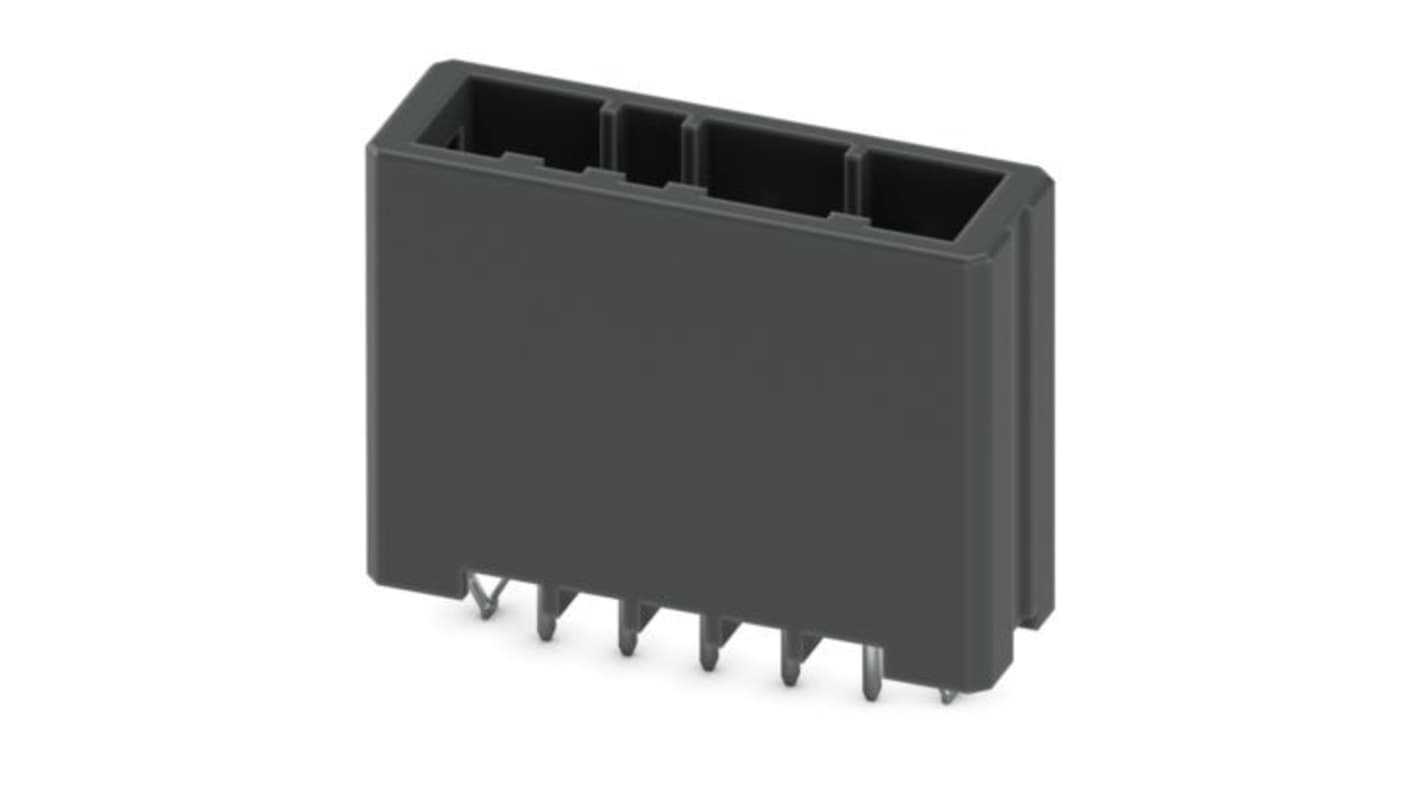

Phoenix Contact Wave Soldering Mount PCB Header, 5 Contact(s), 3.81 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 638-163
- Mfr. Part No.:
- 1341129
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£81.04
(exc. VAT)
£97.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £81.04 | £1.621 |
*price indicative
- RS Stock No.:
- 638-163
- Mfr. Part No.:
- 1341129
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | CONNEXIS | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 3.81mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.8mm | |
| Standards/Approvals | DIN EN 61984, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, UL 94 V0, UL E118976-20240617 | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Pitch 3.81mm | ||
Current 8A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System CONNEXIS | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 3.81mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Mating Pin Length 3.8mm | ||
Standards/Approvals DIN EN 61984, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, UL 94 V0, UL E118976-20240617 | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Header stands out in the connectors marketplace, designed to facilitate efficient assembly with its innovative snap-in locking mechanism. Tailored for seamless integration, it features advanced materials that ensure compliance with stringent WEEE and RoHS regulations. The robust 3.81 mm pitch design, paired with a versatile pin layout, allows for optimal space utilisation on your circuit boards. Engineered for durability, the housing incorporates PBT insulating material that demonstrates excellent thermal stability and flammability resistance.
Compatible with CONNEXIS connector systems for flexible integration options
Excellent thermal properties facilitate a wide range of operating temperatures
Meets international standards for safety and environmental compliance
