3M 2500 Series Right Angle, Straight Surface Mount, Through Hole PCB Header, 14 Contact(s), 2.54mm Pitch, 2 Row(s),

View all PCB Headers
Bulk discount available

Subtotal (1 unit)*

£0.67

(exc. VAT)

£0.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1,212 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£0.67
10 - 24£0.62
25 +£0.54

*price indicative

RS Stock No.:
628-331
Mfr. Part No.:
Y2514-6002-SH 14P ST HDR 0.112 GF
Brand:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Series

2500

Pitch

2.54mm

Number of Contacts

14

Number of Rows

2

Body Orientation

Right Angle, Straight

Shrouded/Unshrouded

Shrouded

Mounting Type

Surface Mount, Through Hole

COO (Country of Origin):
VN

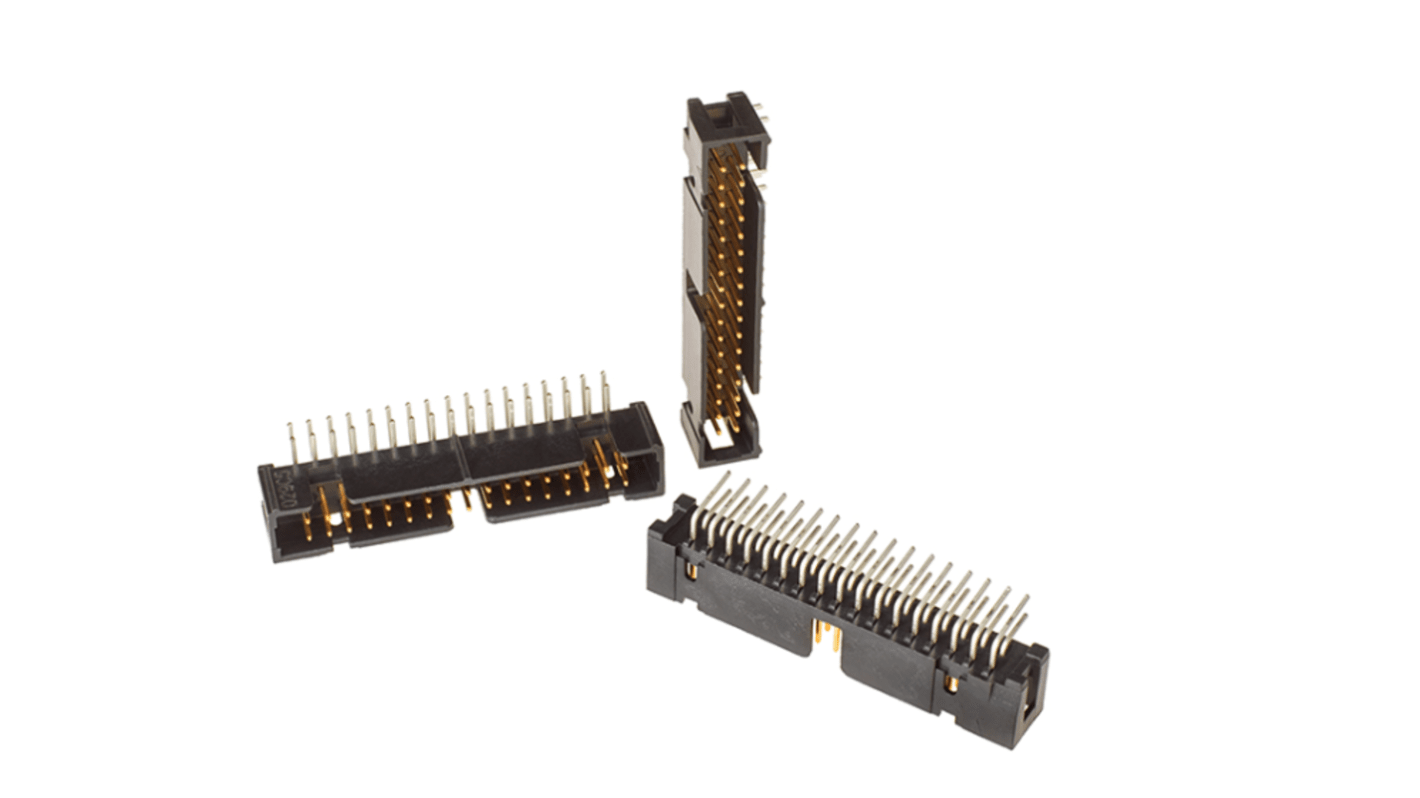

The 3M Four-wall header features a low-profile, space-saving design with center slot polarization that prevents mis-insertions and reduces insertion time. It includes an optional retainer clip for securing sockets and enhancing connection reliability in vibration-prone environments. The through-hole version is suitable for reflow soldering using paste-in-hole techniques, while exposed solder tails on the right-angle version allow for easier cleaning and lower repair costs.

High temperature insulator suitable for no lead soldering operations
Straight surface mount version available
