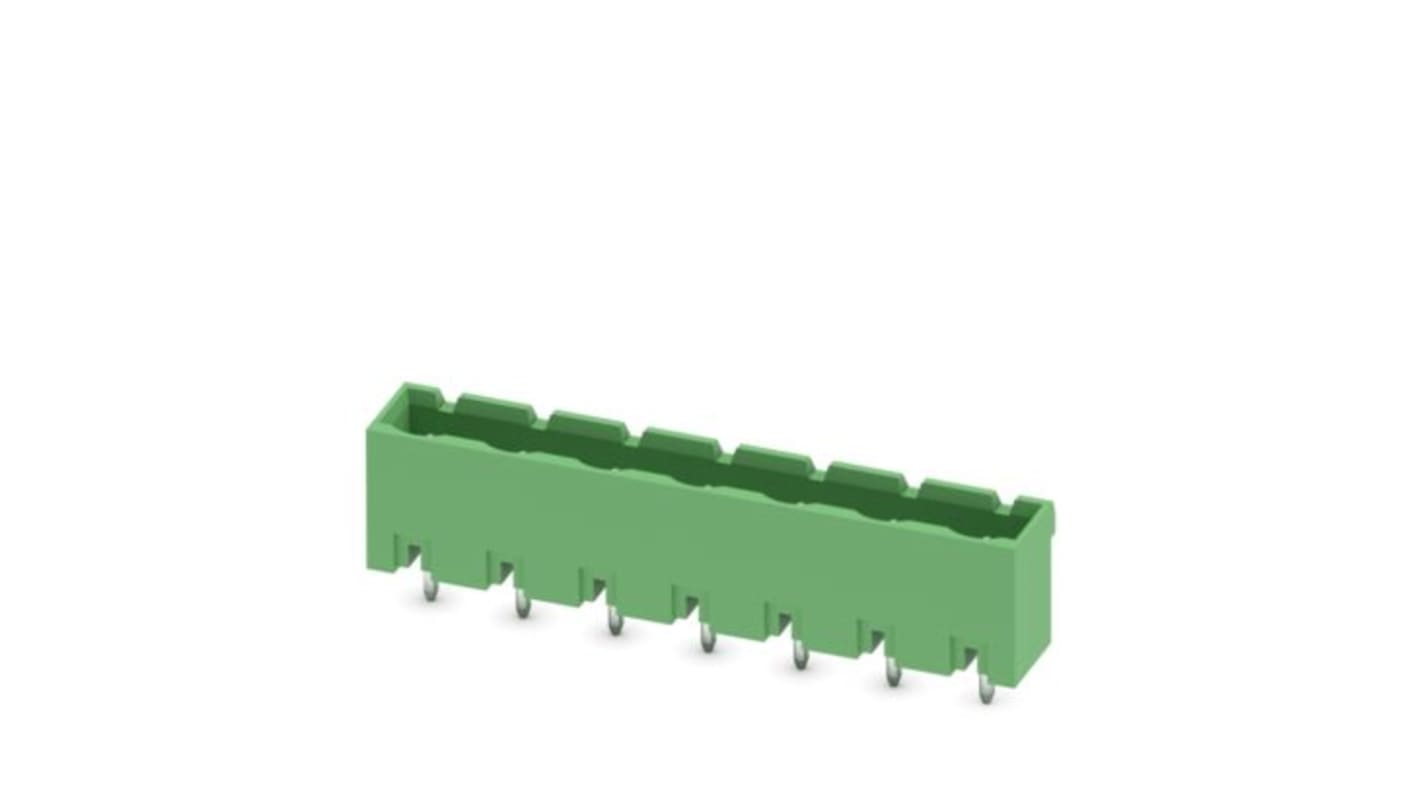

Phoenix Contact GMSTBVA 2/ 5-G Series Straight Wave Soldering Mount PCB Header, 7 Contact(s), 7.5 mm Pitch, 1 Row(s),
- RS Stock No.:
- 609-145
- Mfr. Part No.:
- 1766712
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£165.08
(exc. VAT)
£198.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £165.08 | £1.651 |
*price indicative
- RS Stock No.:
- 609-145
- Mfr. Part No.:
- 1766712
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | GMSTBVA 2/ 5-G | |
| Current | 12A | |
| Pitch | 7.5mm | |
| Number of Contacts | 7 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON MSTB 2.5 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Row Pitch | 7.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.9mm | |
| Contact Gender | Male | |
| Standards/Approvals | CSA, cULus Recognised, VDE | |
| Mating Pin Length | 3.9mm | |
| Voltage | 63 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series GMSTBVA 2/ 5-G | ||
Current 12A | ||
Pitch 7.5mm | ||
Number of Contacts 7 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON MSTB 2.5 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Row Pitch 7.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.9mm | ||
Contact Gender Male | ||
Standards/Approvals CSA, cULus Recognised, VDE | ||
Mating Pin Length 3.9mm | ||
Voltage 63 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header is designed for versatility and reliability in a wide range of applications. With a nominal cross section of 2.5 mm² and a striking green colour, it expertly combines functionality with aesthetic appeal. Its robust design supports a nominal current of 12 A and can handle rated voltages of up to 630 V, making it suitable for demanding environments. The wave soldering mounting method and linear pinning layout enhance its reliability, ensuring strong, stable connections.
Non flammable materials ensure enhanced safety and durability
Simple integration into existing systems thanks to standard alignment
Corrosion resistant materials extend the lifespan of the product
Environmentally friendly complying with RoHS and REACH regulations
