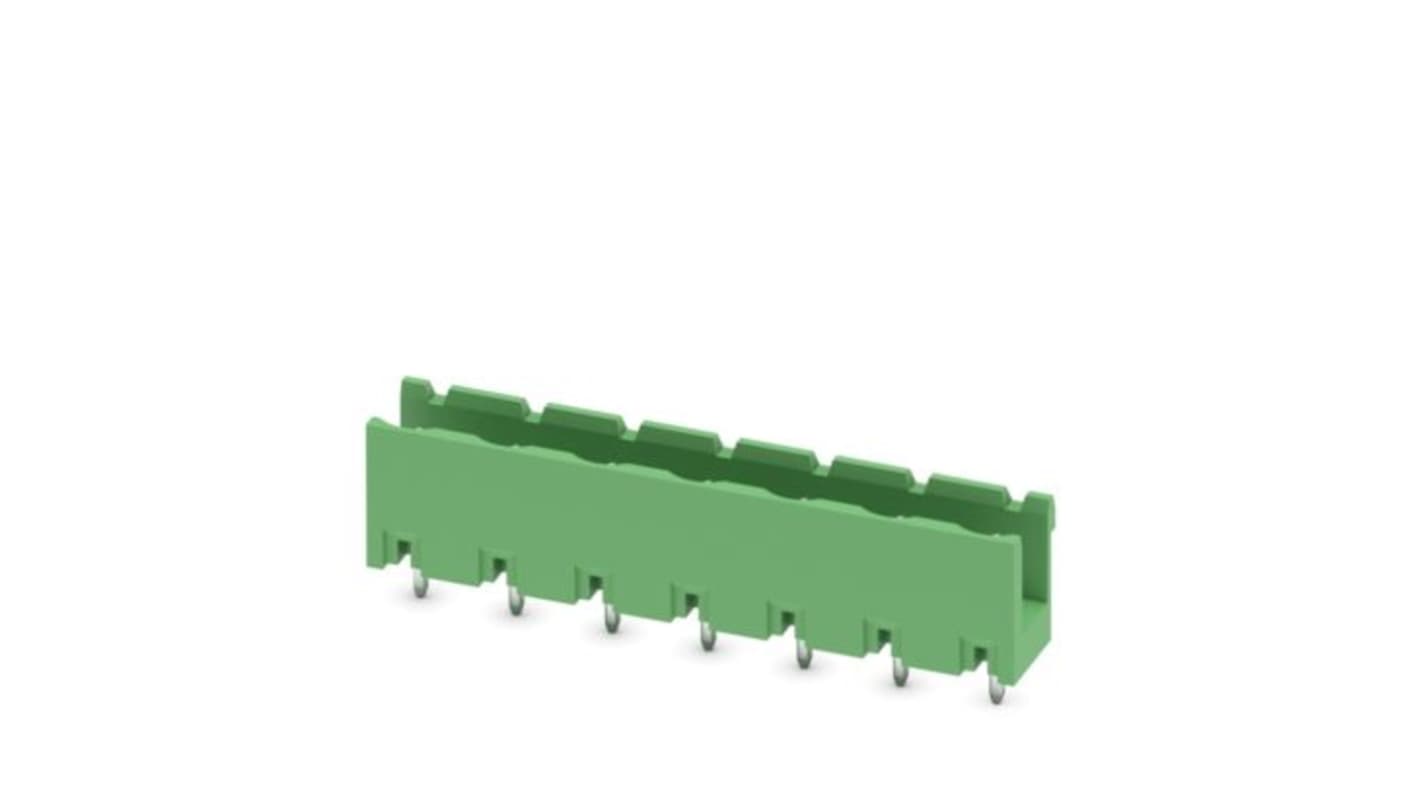

Phoenix Contact Straight Wave Soldering Mount PCB Header, 7 Contact(s), 7.62 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 607-153
- Mfr. Part No.:
- 1766615
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£165.08
(exc. VAT)
£198.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £165.08 | £3.302 |
*price indicative
- RS Stock No.:
- 607-153
- Mfr. Part No.:
- 1766615
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Pitch | 7.62mm | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Nickel, Tin | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 7.62mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.9mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.9mm | |
| Standards/Approvals | CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931013, VDE approval of drawings Approval ID: 40050648 | |
| Voltage | 63 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Pitch 7.62mm | ||
Current 12A | ||
Housing Material Polyamide | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Nickel, Tin | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 7.62mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.9mm | ||
Contact Gender Male | ||
Mating Pin Length 3.9mm | ||
Standards/Approvals CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931013, VDE approval of drawings Approval ID: 40050648 | ||
Voltage 63 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header is expertly designed for seamless integration into high-performance electronic systems. With a focus on reliability and efficiency, the component supports a nominal current of 12 A and a rated voltage of 630 V, making it ideal for a variety of applications. Its robust construction features a green body, ensuring both durability and easy identification on crowded circuit boards.
Incorporates a reliable locking mechanism to secure connections during operation
Capable of enduring extreme temperatures making it suitable for diverse environments
Tested to pass rigorous mechanical and electrical specifications ensuring lasting reliability
Designed for compatibility with COMBICON mating connectors for versatile applications
