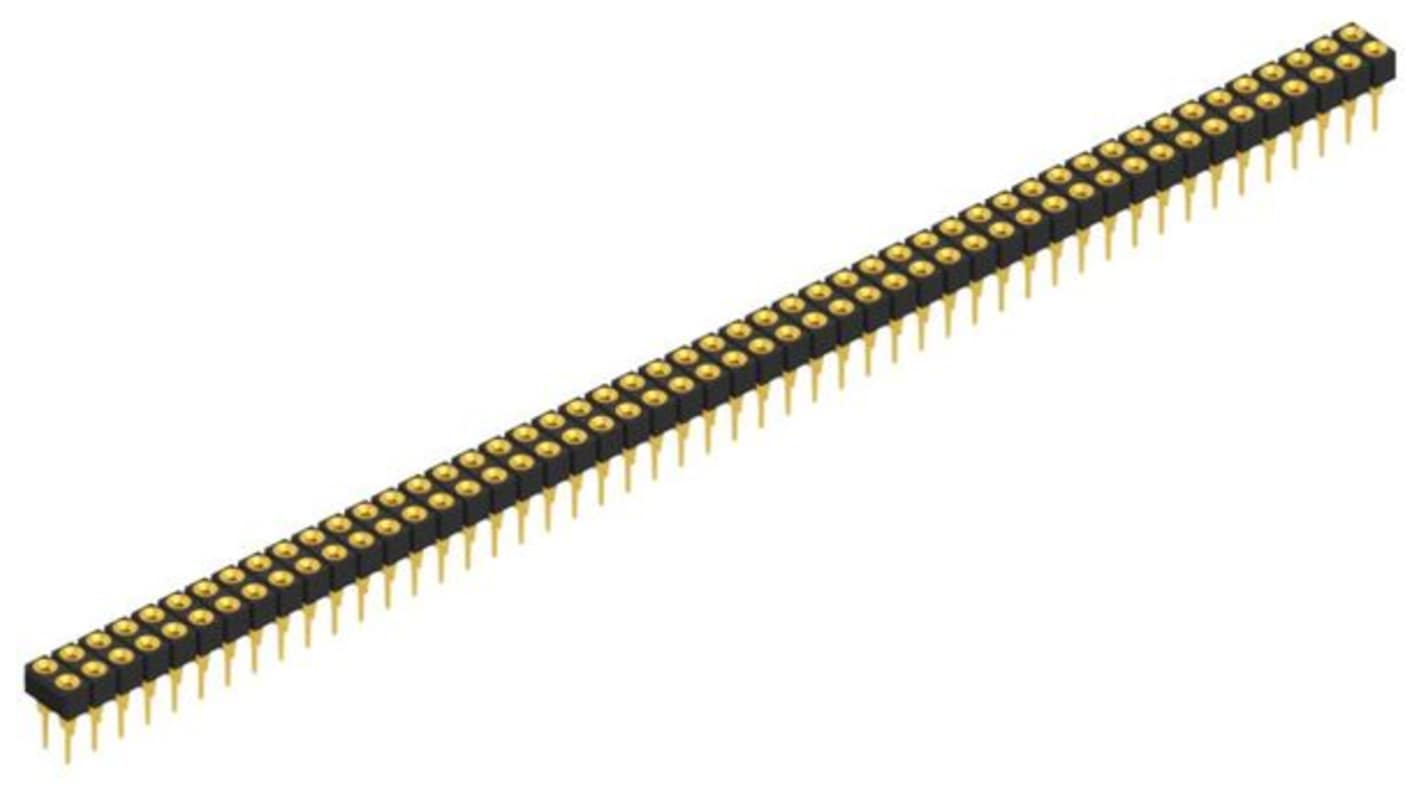

Fischer Elektronik MK Series Straight Through Hole PCB Connector, 100 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 577-662
- Mfr. Part No.:
- MK 201 100 G
- Brand:
- Fischer Elektronik
Subtotal (1 pack of 10 units)*
£101.32
(exc. VAT)
£121.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £101.32 | £10.132 |
*price indicative
- RS Stock No.:
- 577-662
- Mfr. Part No.:
- MK 201 100 G
- Brand:
- Fischer Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fischer Elektronik | |
| Product Type | PCB Connector | |
| Series | MK | |
| Current | 1.5A | |
| Pitch | 2.54mm | |
| Housing Material | Polyamide 4.6 | |
| Number of Contacts | 100 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Connector System | Through Hole | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Zinc Alloy | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 163°C | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS Status: Exempt, UL 94 V-0 | |
| Mating Pin Length | 4.2mm | |
| Voltage | 60 V | |
| Select all | ||
|---|---|---|
Brand Fischer Elektronik | ||
Product Type PCB Connector | ||
Series MK | ||
Current 1.5A | ||
Pitch 2.54mm | ||
Housing Material Polyamide 4.6 | ||
Number of Contacts 100 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Connector System Through Hole | ||
Contact Plating Tin Plated | ||
Contact Material Copper Zinc Alloy | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 163°C | ||
Contact Gender Female | ||
Standards/Approvals RoHS Status: Exempt, UL 94 V-0 | ||
Mating Pin Length 4.2mm | ||
Voltage 60 V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Fischer Elektronik Female Headers with a pitch of 2.54 mm are made from CuSn-alloy for excellent electrical conductivity. They are designed to withstand a temperature range of -40°C to +163°C (with a tolerance of 260°C for 10 seconds) and are classified under UL 94 V-0 for flammability, ensuring safe and reliable performance in demanding environments.
THT connection
1.5 A nominal current
