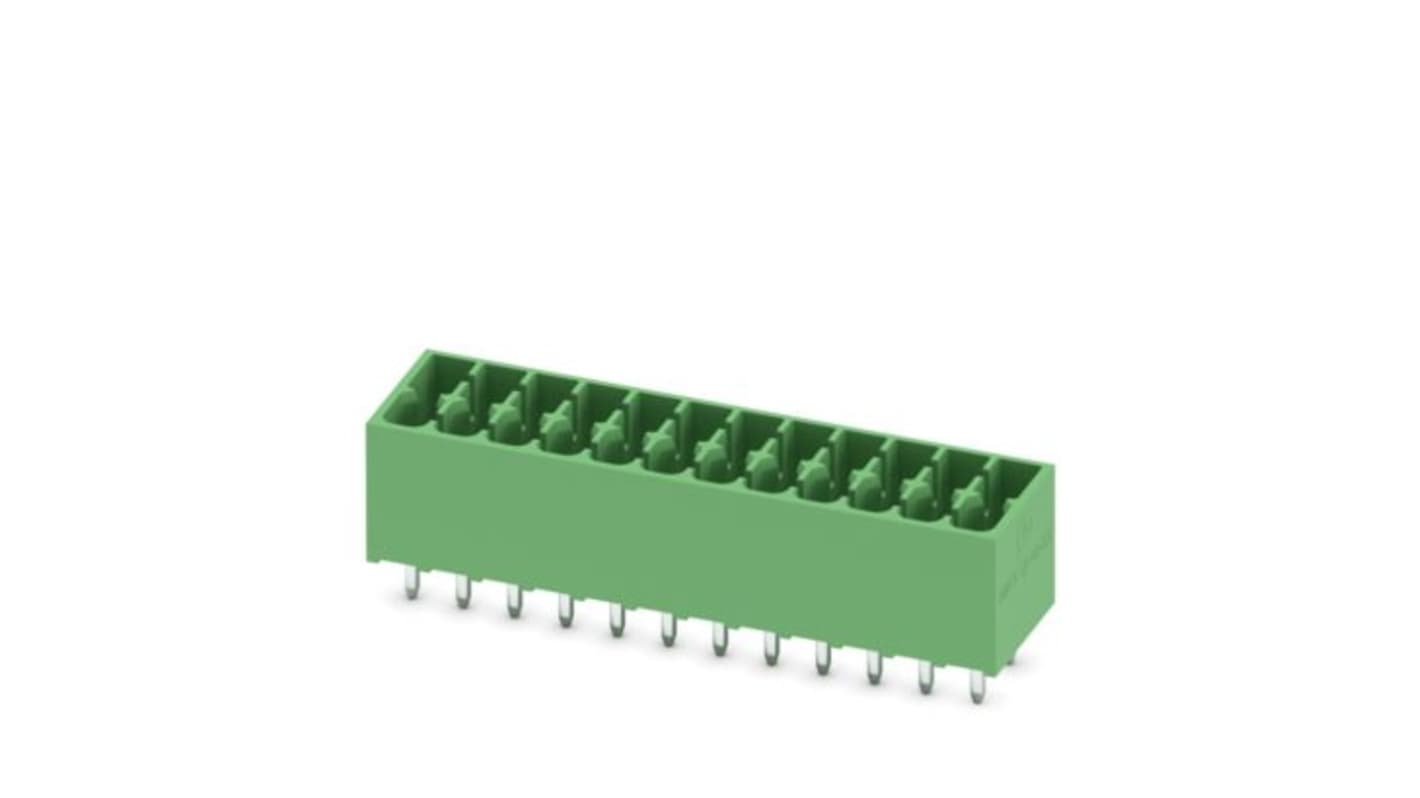

Phoenix Contact Wave Soldering Mount PCB Header, 24 Contact(s), 3.5 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 567-167
- Mfr. Part No.:
- 1053853
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£449.65
(exc. VAT)
£539.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £449.65 | £8.993 |
*price indicative
- RS Stock No.:
- 567-167
- Mfr. Part No.:
- 1053853
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.5mm | |
| Number of Contacts | 24 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | COMBICON DFMC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Pin | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | cULus Recognised, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60664-1, ISO 6988, UL 94 V0 | |
| Mating Pin Length | 3.5mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.5mm | ||
Number of Contacts 24 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System COMBICON DFMC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Pin | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals cULus Recognised, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60664-1, ISO 6988, UL 94 V0 | ||
Mating Pin Length 3.5mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Header is designed for high-performance connectivity, ensuring efficiency in a compact form factor. Manufactured with precision, it allows for reliable pin connections within a range of industrial applications. Its robust construction meets demanding electrical requirements, facilitating seamless integration into various electronic systems. The PCB header features a configuration that has been specifically engineered for wave soldering, ensuring ease of installation while maintaining a secure connection.
Conducts reliable electrical performance with minimal contact resistance
Facilitates vertical connections enabling multi row arrangements
Manufactured in accordance with international safety standards
