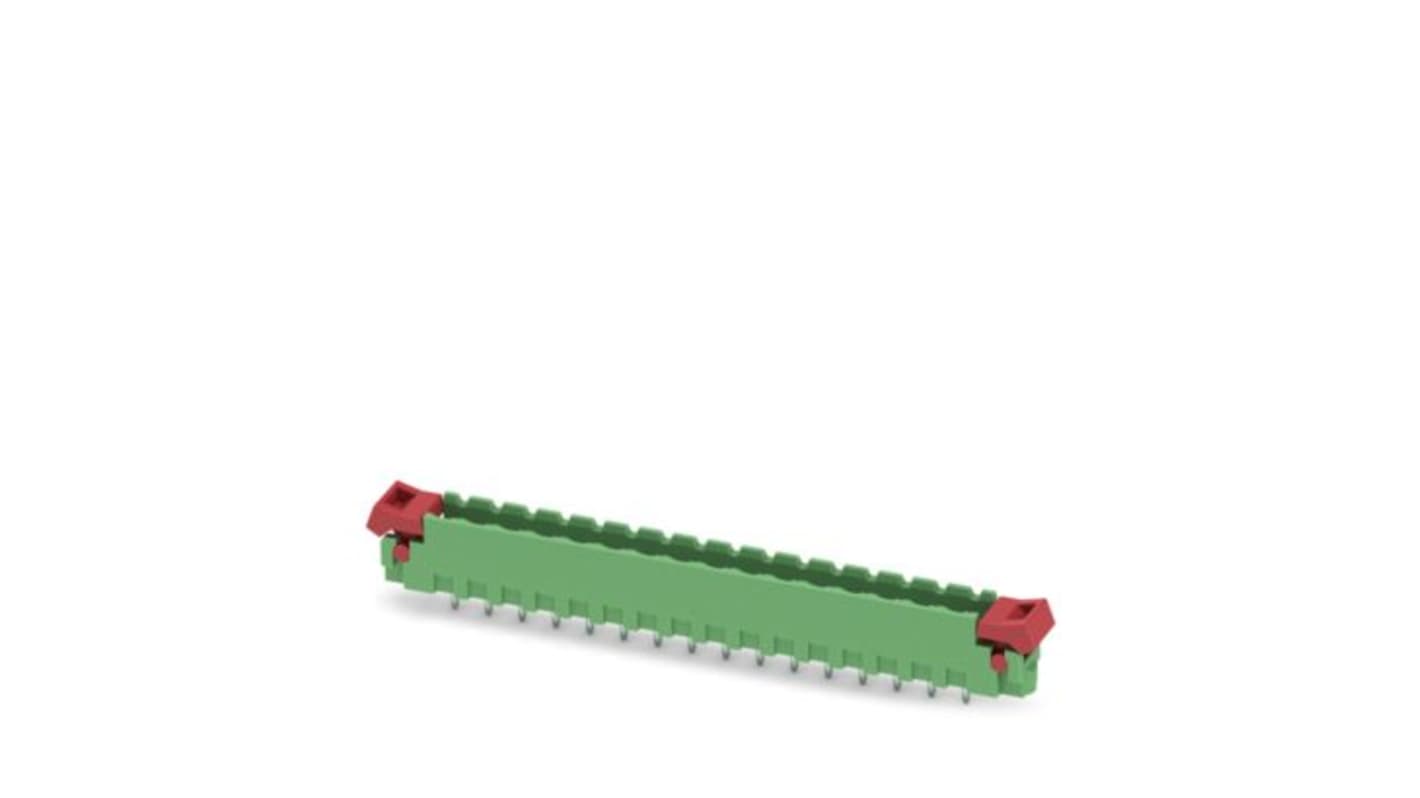

Phoenix Contact Straight Solder Mount PCB Header, 16 Contact(s), 5.08mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 566-268
- Mfr. Part No.:
- 1808609
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£339.44
(exc. VAT)
£407.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £339.44 | £6.789 |
*price indicative
- RS Stock No.:
- 566-268
- Mfr. Part No.:
- 1808609
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pitch | 5.08mm | |
Number of Contacts | 16 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Solder Mount | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pitch 5.08mm | ||
Number of Contacts 16 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Solder Mount | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header is designed to meet rigorous connectivity standards. This component excels in high-performance applications, ensuring reliable electrical connections with a nominal current rating of 12 A and a rated voltage of up to 320 V. Housed in a robust green PBT casing, it combines longevity and durability, making it ideal for various environments. With a pitch of 5.08 mm and a streamlined pin layout, it ensures easy installation and maintenance.
Wave soldering mounting type enhances assembly reliability
Utilises a high quality copper alloy contact material for superior conductivity
Green housing offers a distinguishing aesthetic while ensuring visibility
Standard pin strip configuration supports modular design
Excellent thermal performance across a range of operating temperatures
Minimal contact resistance contributes to efficient energy management
Utilises a high quality copper alloy contact material for superior conductivity
Green housing offers a distinguishing aesthetic while ensuring visibility
Standard pin strip configuration supports modular design
Excellent thermal performance across a range of operating temperatures
Minimal contact resistance contributes to efficient energy management
