Phoenix Contact MSTBV Series Vertical Wave Soldering Mount PCB Header, 5 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded

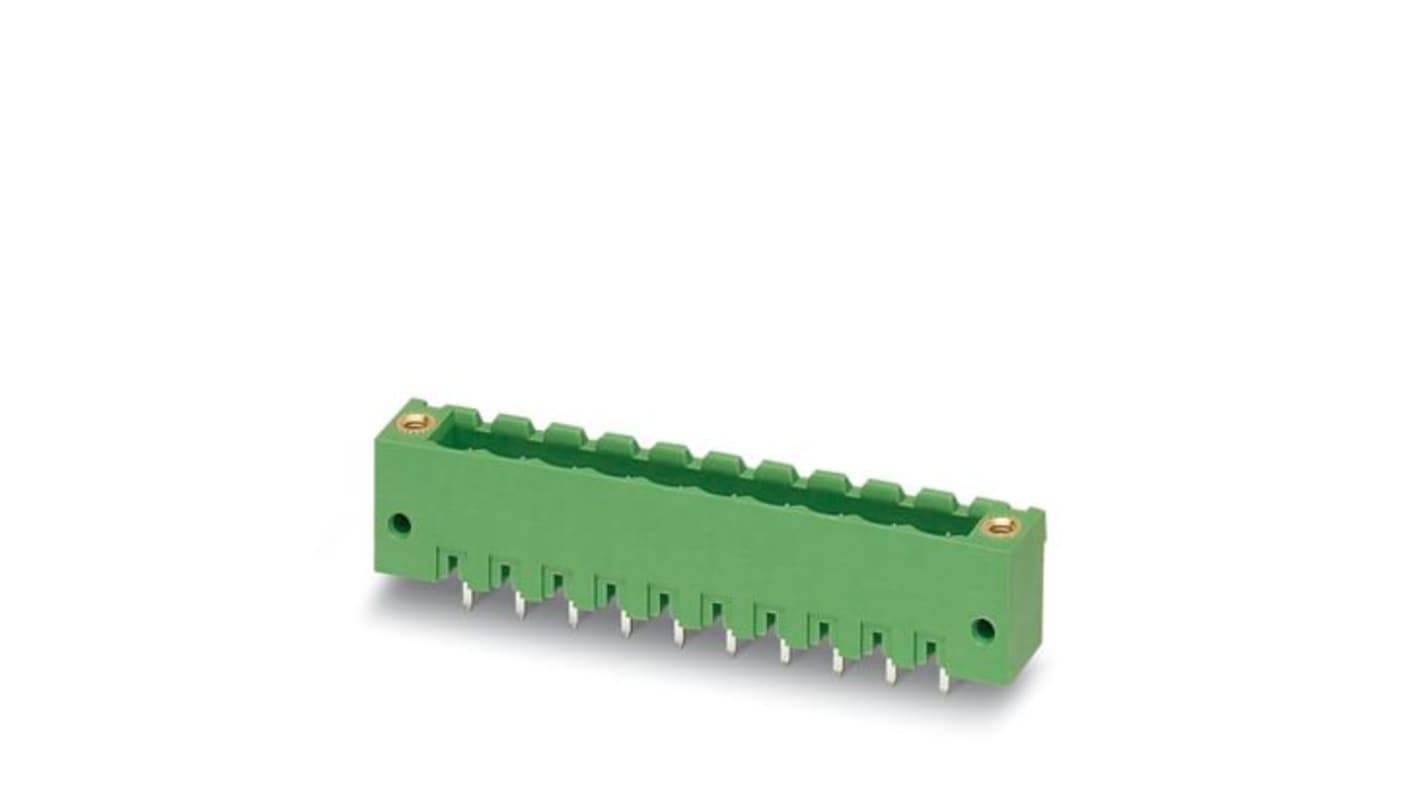

Image representative of range

View all PCB Headers
Unavailable
RS will no longer stock this product.
RS Stock No.:
558-800
Mfr. Part No.:
1776919
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MSTBV

Current

12A

Pitch

5mm

Number of Contacts

5

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Row Pitch

5mm

Termination Type

Solder

Tail Pin Length

3.9mm

Maximum Operating Temperature

105°C

Contact Gender

Male

Standards/Approvals

CSA, cULus, DNV GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, VDE

Mating Pin Length

3.9mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header is an outstanding solution for versatile device design, offering seamless integration with various connection technologies. Its Compact form factor and green colour ensure both functionality and aesthetic appeal on the PCB. Designed for wave soldering, this header boasts a robust construction with linear pinning, securing reliable electrical connections across multiple layers. The unique features of this product allow for flexibility in device architecture, enabling efficient use of space while maintaining superior performance. Enhanced with screw locking mechanisms and a threaded flange, it guarantees secure installation, making it a preferred choice for professionals seeking efficient and reliable connectivity solutions.

Provides maximum flexibility in device design with a single header for multiple connection technologies

Facilitates worldwide use thanks to its well-known mounting principle

Enables vertical connection for multi-row arrangements on the PCB

Utilises a standard plug-in system for increased compatibility with various connectors

Demonstrates a high contact resistance rating for efficient electrical performance

Robust construction ensuring longevity and reliability in various operating conditions

Complies with international standards, ensuring safety and performance

Designed for easy assembly with a consistent pin layout for straightforward integration
