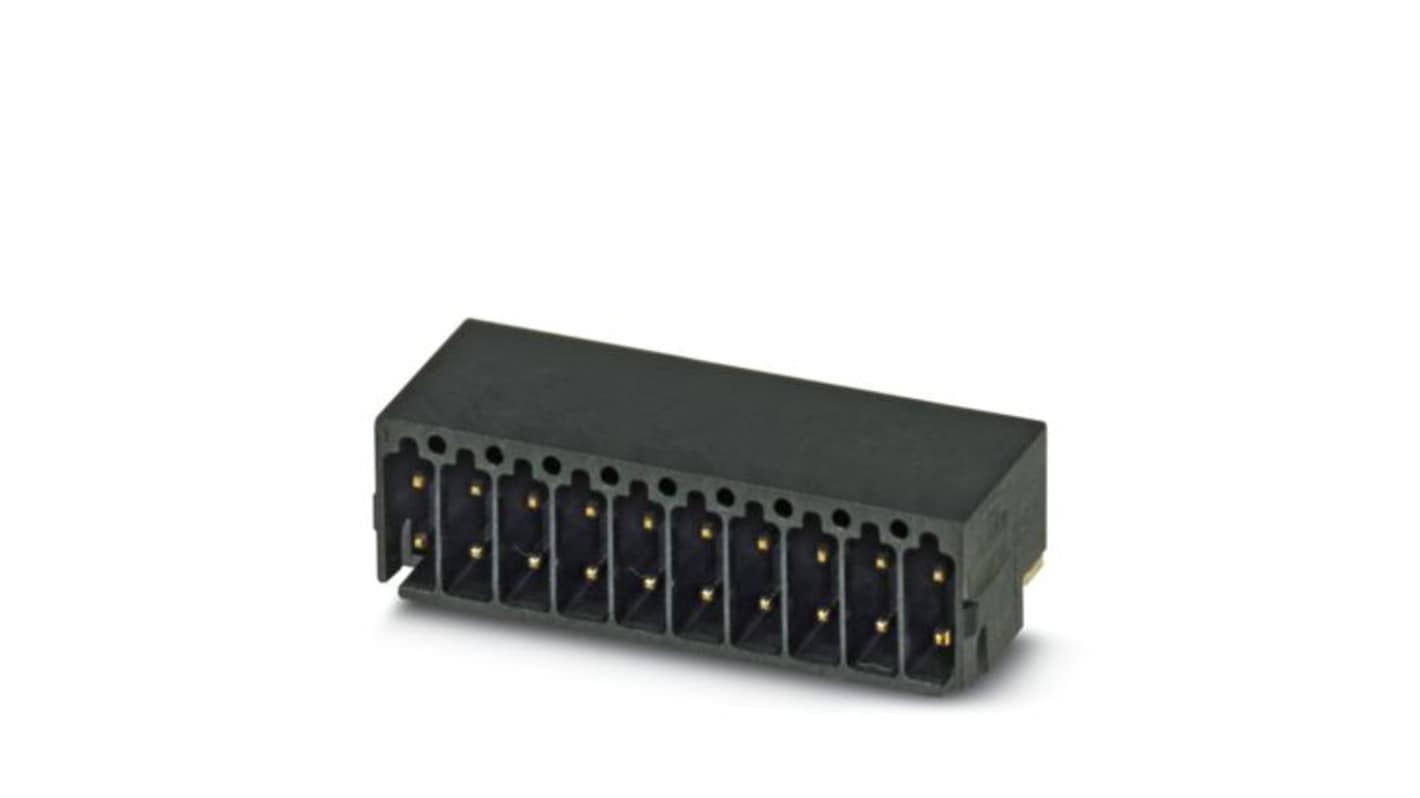

Phoenix Contact DMC Series Straight Surface PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 558-577
- Mfr. Part No.:
- 1845056
- Brand:
- Phoenix Contact
Subtotal (1 pack of 300 units)*
£669.09
(exc. VAT)
£802.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £669.09 | £2.23 |
*price indicative
- RS Stock No.:
- 558-577
- Mfr. Part No.:
- 1845056
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DMC | |
| Current | 6A | |
| Pitch | 2.54mm | |
| Number of Contacts | 10 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON DFMC 0.5 | |
| Mount Type | Surface | |
| Contact Plating | Gold Plated | |
| Contact Material | Copper Alloy | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DMC | ||
Current 6A | ||
Pitch 2.54mm | ||
Number of Contacts 10 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON DFMC 0.5 | ||
Mount Type Surface | ||
Contact Plating Gold Plated | ||
Contact Material Copper Alloy | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB header is designed to integrate seamlessly into SMT processes, offering enhanced performance and reliability for modern electronic applications. Engineered for superior contact quality, it features gold-plated contacts that ensure stable transfer quality over extended periods. With a compact design that accommodates high contact density, this product meets the demands of contemporary circuit board designs. Whether you're assembling complex electronic devices or standard applications, this header stands out for its robust capabilities and technical specifications, making it a reliable choice for engineers and manufacturers alike.
Gold-plated contacts support long-term stability and reliability
Customised for smooth integration in the SMT process
Higher contact density achieved through multi-level conductor connection
Designed with standard linear pad geometry for efficient soldering
Environmental compliance with WEEE and RoHS standards
Facilitates efficient assembly with a SMD soldering mount type
Durable housing material capable of withstanding harsh conditions
Rated for a wide range of ambient temperatures, ensuring versatile use
