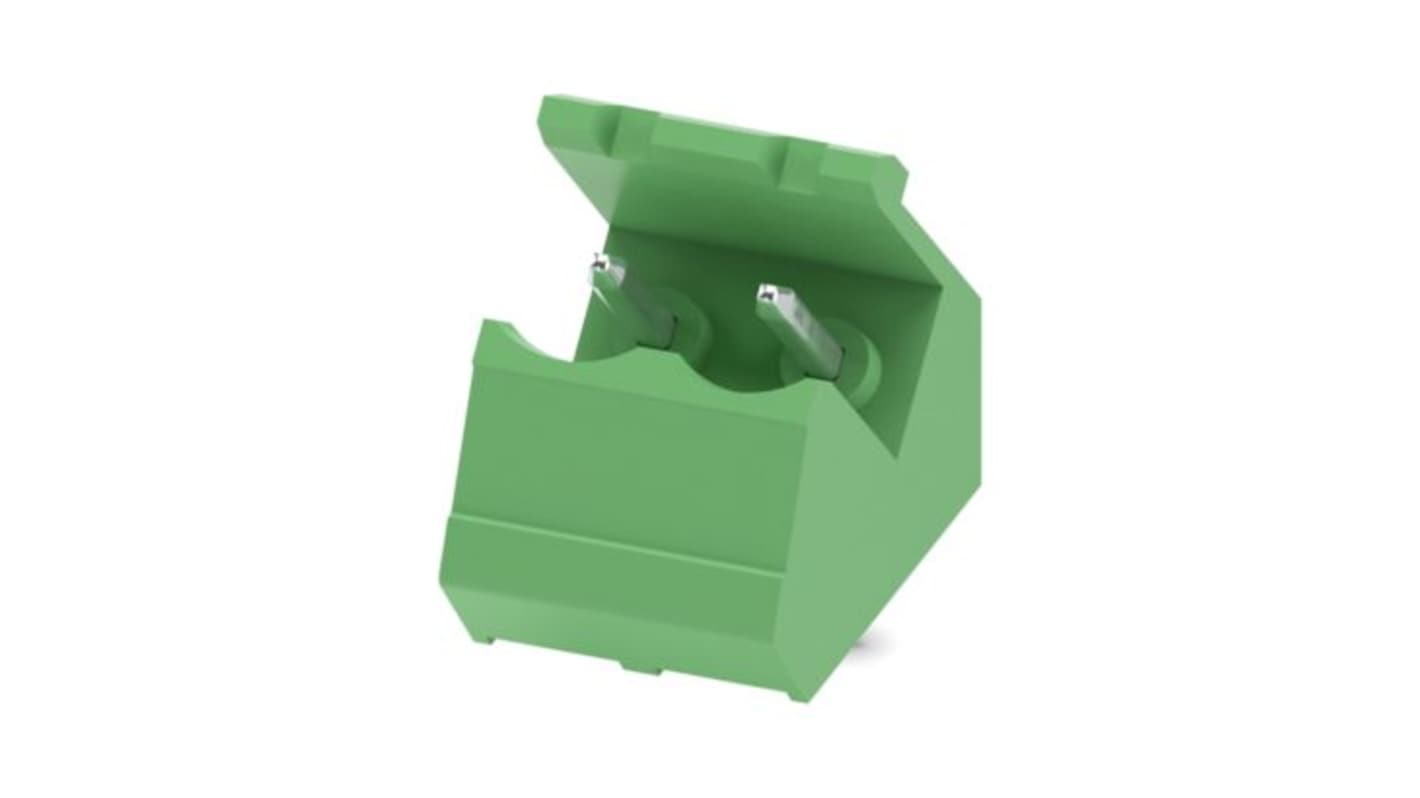

Phoenix Contact SMSTB Series Wave Soldering Mount PCB Header, 2 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 100 units)*

£48.07

(exc. VAT)

£57.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£48.07£0.481

*price indicative

RS Stock No.:
558-038
Mfr. Part No.:
1769463
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SMSTB

Product Type

PCB Header

Pitch

5.08mm

Current

12A

Housing Material

Polyamide

Number of Contacts

2

Number of Rows

1

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

5.08mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Contact Gender

Male

Tail Pin Length

3.5mm

Maximum Operating Temperature

100°C

Mating Pin Length

3.5mm

Standards/Approvals

CSA 13631-2585951, cULus E60425-19931011, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE 40050648

Voltage

32 V

COO (Country of Origin):
PL
The Phoenix Contact PCB header from the SMSTB 2.5/-G series is engineered for exceptional flexibility in device design, accommodating multiple connection technologies within a single header. With a compact pitch of 5.08 mm, this robust solution is suitable for applications requiring reliable connections and space efficiency. It ensures both functionality and performance, backed by a well-established mounting principle that facilitates worldwide usability. The product’s combination of high-quality materials and compliant characteristics makes it ideal for various industrial applications, delivering reliable performance under diverse environmental conditions.

Supports a nominal current of 12 A, ensuring dependable connectivity

Rated for a voltage of 320 V, providing versatility for various applications

Green, environmentally friendly insulating material enhances sustainability

Compact dimensions allow for dense circuit layouts without sacrificing performance

WEEE/RoHS-compliant, ensuring adherence to environmental regulations

Wave soldering capability simplifies assembly processes in manufacturing

Designed for a linear pinning layout, promoting ease of use in PCB configuration

Offers effective insulation resistance, maintaining operational integrity over time

Built to withstand a wide range of ambient temperatures, ensuring reliability in challenging environments
