Phoenix Contact MCV Series Wave Soldering Mount PCB Header, 5 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 557-513
- Mfr. Part No.:
- 1963780
- Brand:
- Phoenix Contact

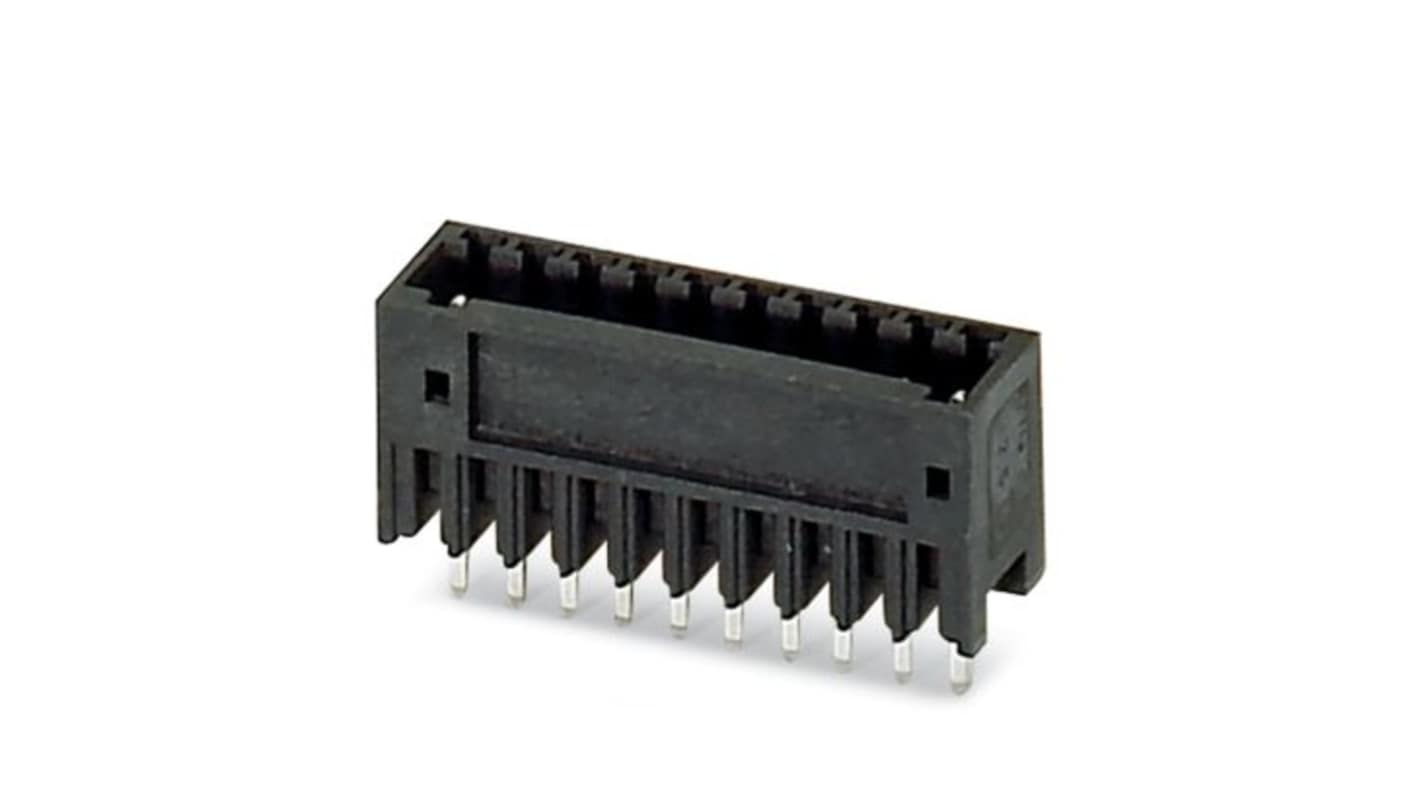

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 557-513
- Mfr. Part No.:
- 1963780
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | MCV | |
| Current | 4A | |
| Pitch | 2.5mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | Plug in systemCOMBICON FK MC 0,5 | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.5mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.5mm | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, VDE report | |
| Mating Pin Length | 3.5mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series MCV | ||
Current 4A | ||
Pitch 2.5mm | ||
Housing Material Polyamide | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System Plug in systemCOMBICON FK MC 0,5 | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.5mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.5mm | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, VDE report | ||
Mating Pin Length 3.5mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header is expertly designed for seamless integration into your SMT soldering processes. With a contemporary pitch of just 2.5mm, this robust component provides an effective solution for PCB applications requiring reliable and efficient connectivity. It supports a nominal current of 4A and a rated voltage of up to 160V, demonstrating its capacity to handle varied electrical demands in Compact spaces. Constructed from Durable materials and conforming to stringent regulations, the PCB header offers superior performance while ensuring compliance with environmental standards. This makes it an Ideal choice for professionals seeking dependable connectivity solutions that can withstand thermal and mechanical stress, all while promoting ease of installation and application versatility.
Optimised for through hole reflow technology
Black insulating material enhances aesthetic appeal and functionality
Designed to handle multi-row arrangements on PCBs effortlessly
Supports a moisture sensitivity level of MSL 3 for enhanced reliability
Pin layout allows for simple alignment during installation
Constructed from RoHS-compliant materials for environmental safety
Meets IEC and UL standards for enhanced safety and performance
Offers excellent resistance to corrosion and rust for longevity
Weight consideration ensures a lightweight profile without compromising strength
Available in a bulk packing unit, catering to large-scale projects
