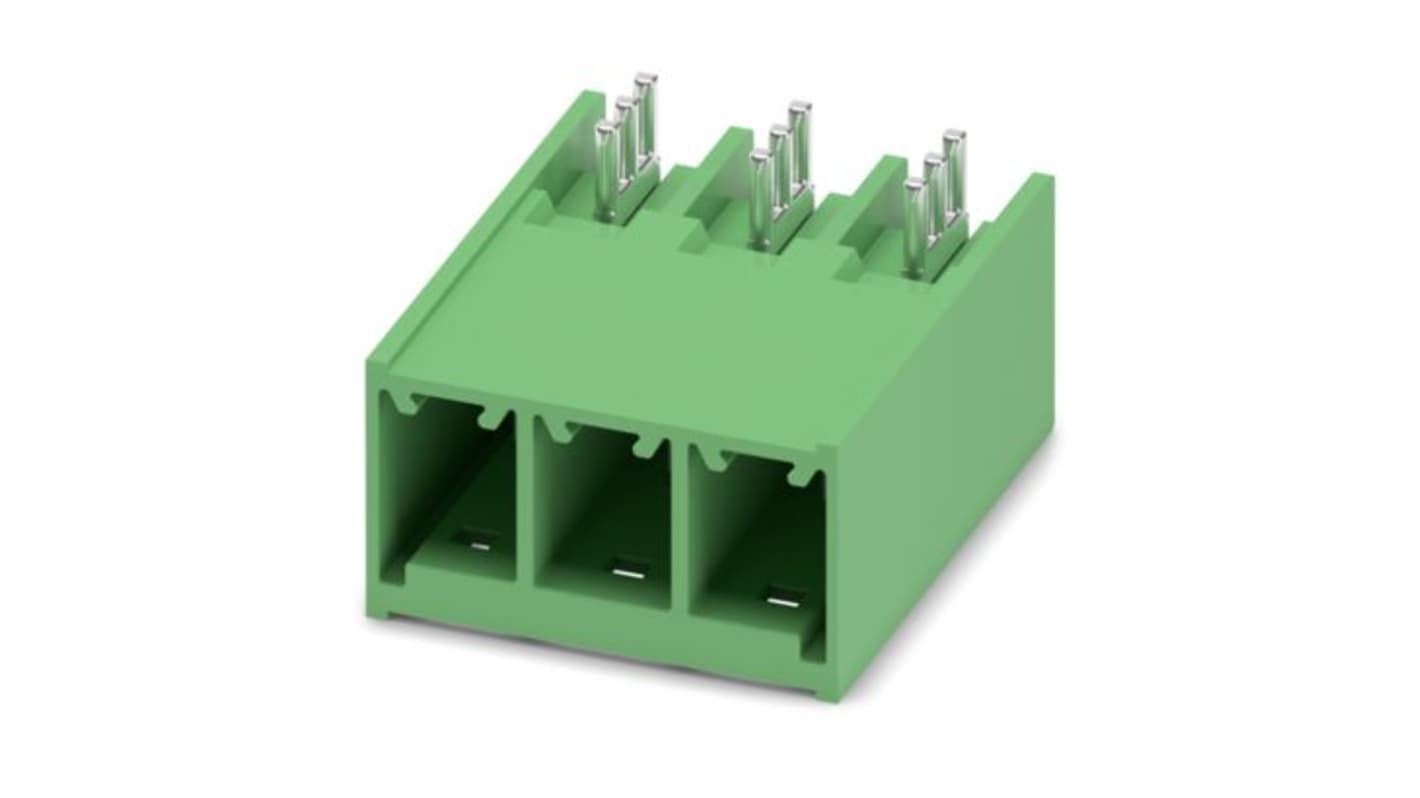

Phoenix Contact PC Series Straight Solder Mount PCB Header, 3 Contact(s), 7.62mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 556-068
- Mfr. Part No.:
- 1055247
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£205.65
(exc. VAT)
£246.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £205.65 | £4.113 |
*price indicative
- RS Stock No.:
- 556-068
- Mfr. Part No.:
- 1055247
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | PC | |
Pitch | 7.62mm | |
Number of Contacts | 3 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Solder Mount | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series PC | ||
Pitch 7.62mm | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Solder Mount | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Header connector is engineered for reliable performance in a variety of industrial applications. Designed with meticulous attention to detail, it accommodates a nominal cross-section of 6 mm² and supports a maximum current of 41 A, making it a robust choice for demanding connectivity tasks. The connector's green housing not only ensures compatibility with design aesthetics but also adheres to strict compliance standards. With a rated voltage of 630 V in various categories, it offers flexibility while ensuring operational safety.
Devised for quick installation with a wave soldering method
Features a linear pin layout ensuring straightforward connectivity
Designed to withstand extreme ambient temperatures ensuring reliability
Accommodates multiple potential configurations for diverse application needs
Features a linear pin layout ensuring straightforward connectivity
Designed to withstand extreme ambient temperatures ensuring reliability
Accommodates multiple potential configurations for diverse application needs
