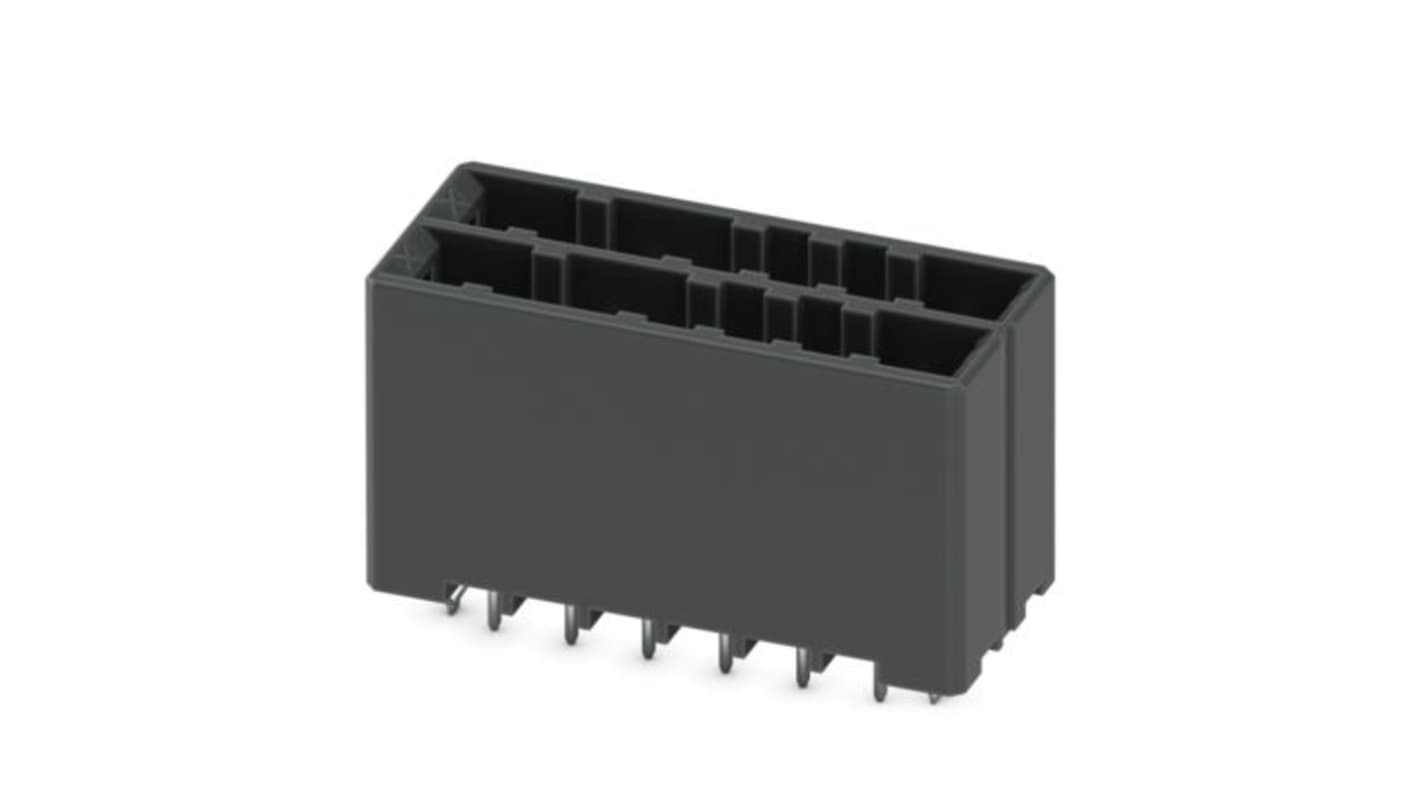

Phoenix Contact DD32H Series Vertical Wave Soldering PCB Header, 12 Contact(s), 5.08mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 520-877
- Mfr. Part No.:
- 1378278
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£292.39
(exc. VAT)
£350.87
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £292.39 | £5.848 |
*price indicative
- RS Stock No.:
- 520-877
- Mfr. Part No.:
- 1378278
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | DD32H | |
Pitch | 5.08mm | |
Number of Contacts | 12 | |
Number of Rows | 2 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Wave Soldering | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series DD32H | ||
Pitch 5.08mm | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Wave Soldering | ||
- COO (Country of Origin):
- CN
The Phoenix Contact DD32H 2.2/12-V-5.08-XX PCB header offers a highly efficient solution for connecting multiple components on printed circuit boards. Designed with versatility in mind, this product features a compact profile with a pitch of 5.08 mm, making it suitable for a range of applications. Its innovative design allows for reliable crimp connections and easy wave soldering, which simplifies installation and enhances productivity. Each header conforms to international standards, ensuring safety and reliability in various operational environments. The black housing adds a touch of robustness, while the intuitive snap-in locking mechanism provides added security against accidental disconnections, making it a preferred choice among professionals seeking durability and performance in their electrical connections.
Offers a linear pin layout for simplified PCB design
Allows for easy and quick module replacement to minimise downtime
Features a robust housing that ensures longevity in challenging environments
Delivers high current capacity, making it ideal for demanding applications
Designed for snap-in locking, allowing for secure connections without additional hardware
RoHS compliant, ensuring compliance with environmental regulations
Supports a wide temperature range suitable for various operating conditions
Conforms to DIN EN 61984 standards for added reliability in electrical safety
Allows for easy and quick module replacement to minimise downtime
Features a robust housing that ensures longevity in challenging environments
Delivers high current capacity, making it ideal for demanding applications
Designed for snap-in locking, allowing for secure connections without additional hardware
RoHS compliant, ensuring compliance with environmental regulations
Supports a wide temperature range suitable for various operating conditions
Conforms to DIN EN 61984 standards for added reliability in electrical safety
