Phoenix Contact PC Series Wave Soldering Mount PCB Header, 8 Contact(s), 7.62 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 520-824
- Mfr. Part No.:
- 1720741
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£595.81
(exc. VAT)
£714.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £595.81 | £11.916 |
*price indicative
- RS Stock No.:
- 520-824
- Mfr. Part No.:
- 1720741
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | PC | |
| Product Type | PCB Header | |
| Current | 32A | |
| Pitch | 7.62mm | |
| Number of Contacts | 8 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON PC 5 hybrid | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 7.62mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 4.2mm | |
| Contact Gender | Male | |
| Mating Pin Length | 4.2mm | |
| Standards/Approvals | cULus Recognised, IEC 61984, UL Recognised, WEEE/RoHS-compliant | |
| Voltage | 63 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series PC | ||
Product Type PCB Header | ||
Current 32A | ||
Pitch 7.62mm | ||
Number of Contacts 8 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON PC 5 hybrid | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 7.62mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 4.2mm | ||
Contact Gender Male | ||
Mating Pin Length 4.2mm | ||
Standards/Approvals cULus Recognised, IEC 61984, UL Recognised, WEEE/RoHS-compliant | ||
Voltage 63 V | ||
- COO (Country of Origin):
- DE

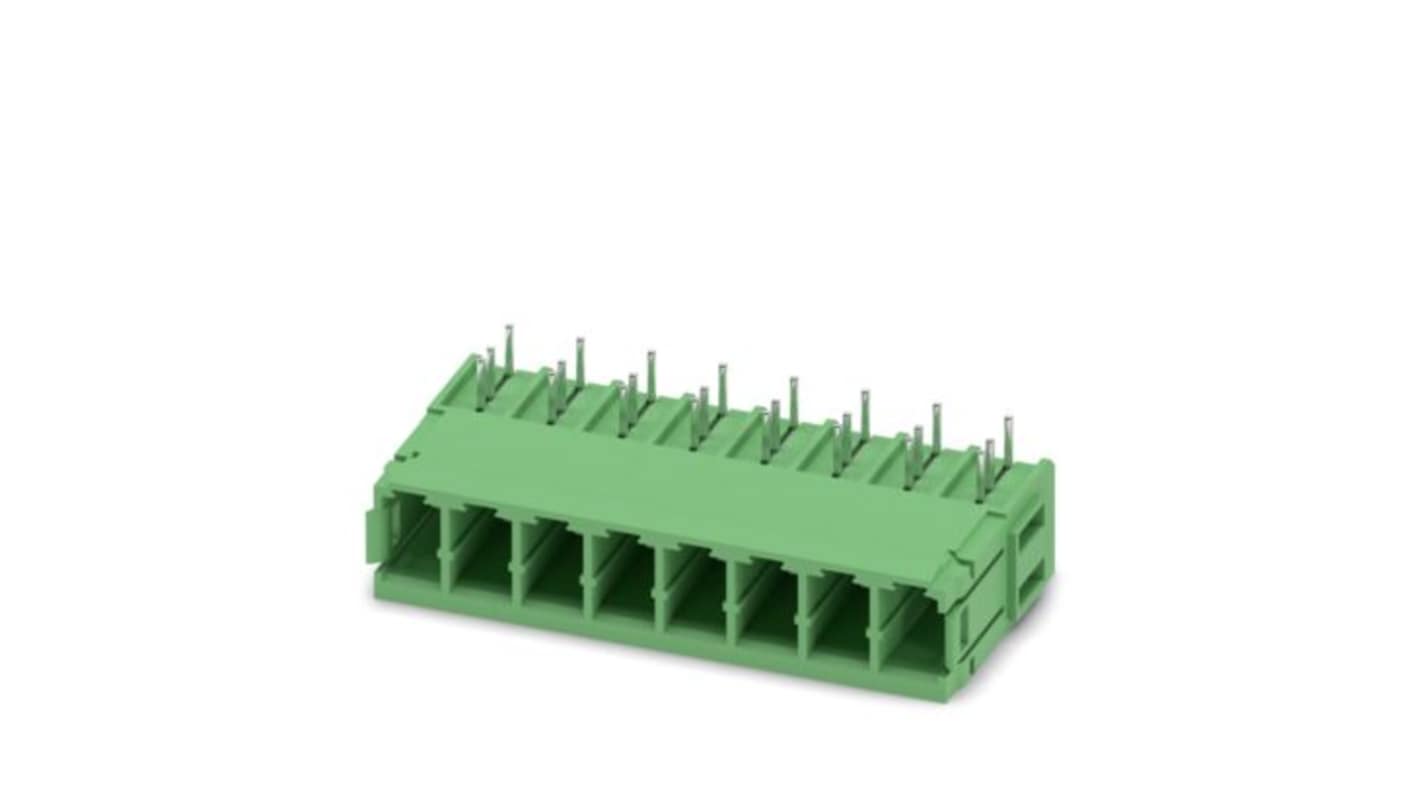

The Phoenix Contact PC 5/8-GU-7.62 PCB header is a robust and versatile connector designed specifically for reliable electrical connections in various applications. With a nominal current of 32 A and a rated voltage of 630 V, this connector is ideal for demanding environments requiring high performance and durability. Its green, RoHS-compliant housing and hot-dip tin-plated contacts ensure a long-lasting solution, while its wave soldering design simplifies the assembly process. The flexible pin layout accommodates a range of applications, making it suitable for connectors with different connection technologies.
Expertly engineered for exceptional electrical performance and reliability
Green housing design aligns with environmental sustainability standards
Features a flexible pin layout, facilitating use across multiple applications
WEEE/RoHS-compliant, ensuring safety and reduced environmental impact
User-friendly packaging—sold in units of 50 for convenience
Optimised for wave soldering, speeding up production processes
Designed to support a variety of device designs, enhancing versatility
