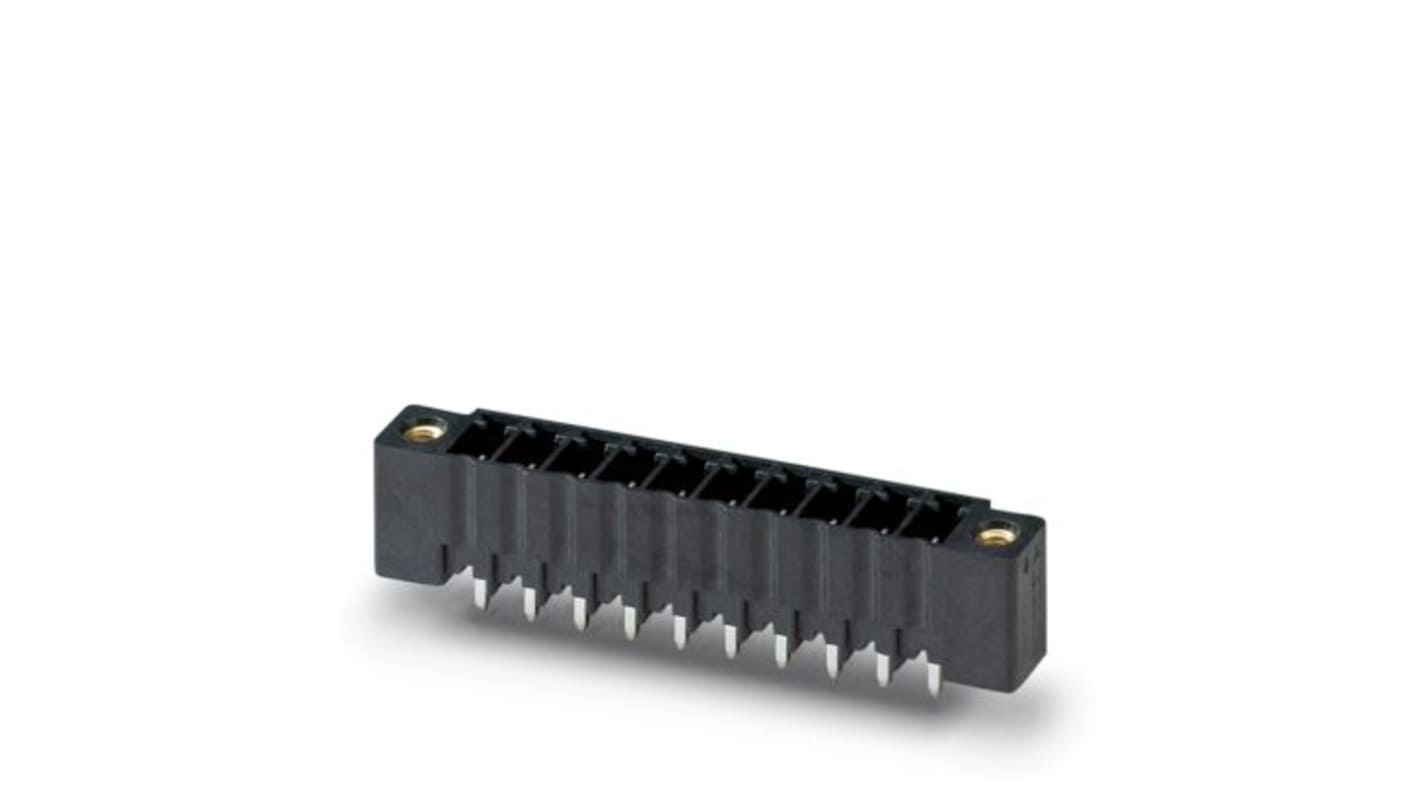

Phoenix Contact MCV Series Straight Through Hole PCB Header, 19 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£521.50

(exc. VAT)

£625.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£521.50£10.43

*price indicative

RS Stock No.:
518-884
Mfr. Part No.:
1829030
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MCV

Product Type

PCB Header

Pitch

3.81mm

Current

8A

Housing Material

Liquid Crystal Polymer

Number of Contacts

19

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MC 1.5

Mount Type

Through Hole

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Minimum Operating Temperature

-40°C

Row Pitch

3.81mm

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

100°C

Tail Pin Length

2mm

Standards/Approvals

cULus Recognised, IEC 60068-2-70, IEC 60068-2-82/JEDEC JESD 201, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60664-1, ISO 6988, UL 94 V0, VDE

Mating Pin Length

2mm

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact MCV 1.5/19-GF-3.81 P20 THR is an innovative PCB header designed for seamless integration into electronic applications. Featuring a compact yet robust construction, it accommodates a variety of connection technologies while ensuring high-performance standards. The design allows for vertical connections, making it ideal for multi-row arrangements on PCBs. With its black housing, this component not only meets aesthetic requirements but also adheres to stringent engineering specifications. Designed specifically for through-hole reflow technology, it offers flexibility in device design and is optimised for modern manufacturing processes.

Screwable flange enhances mechanical stability

Compatible with both THR soldering and wave soldering methods

Moisture sensitivity level rated at MSL 1 ensures reliability in diverse environments

Application flexibility allows use in multiple device configurations

Vertical connection feature simplifies PCB arrangements

Flammability rating of V0 ensures safety under extreme conditions

WEEE/RoHS compliance supports environmentally-friendly practices

Tin-plated contact material reduces resistance for improved performance

Lightweight design facilitates easier handling and integration

Effective insulation resistance prevents electrical failures
