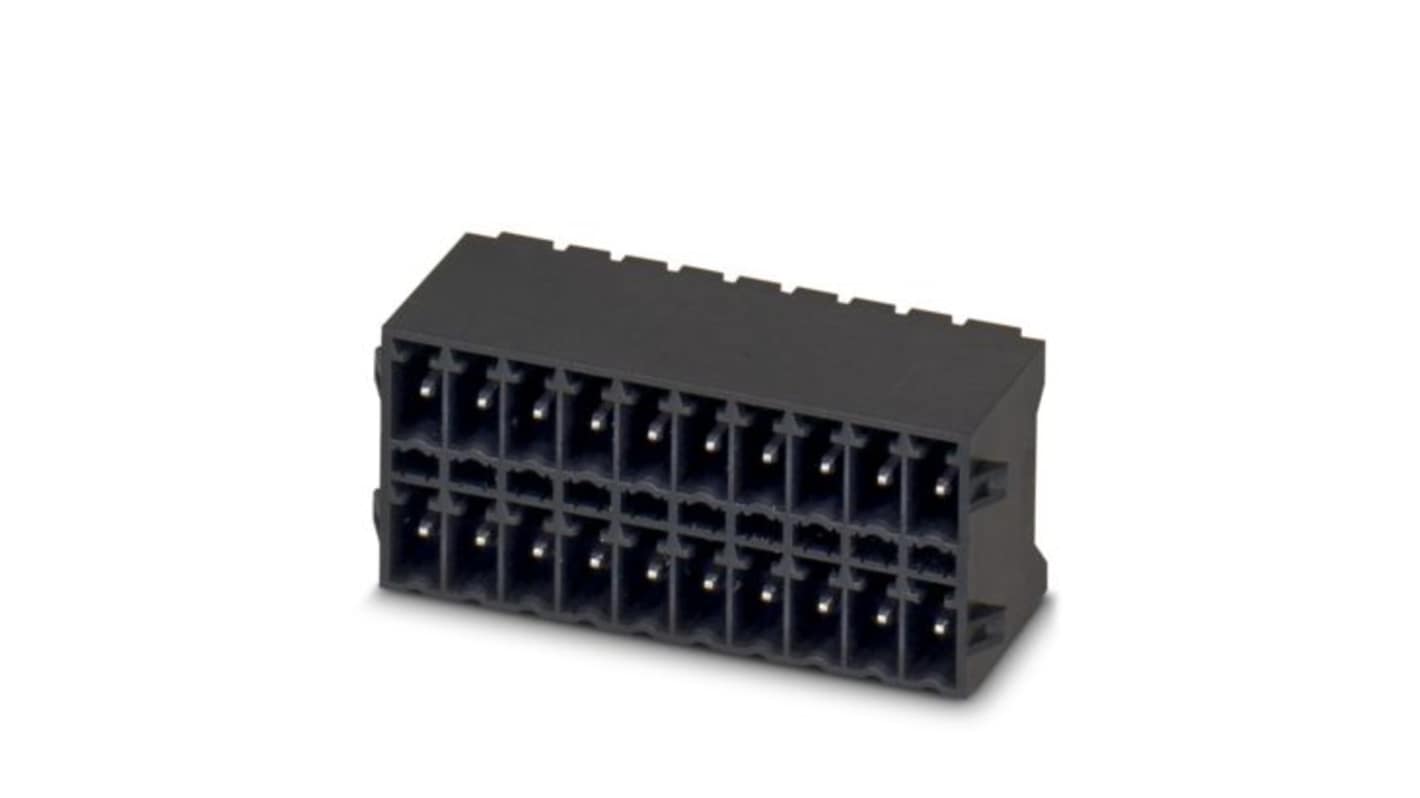

Phoenix Contact MCDN Series Straight Solder PCB Header, 10 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 55 units)*

£361.53

(exc. VAT)

£433.84

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£361.53£6.573

*price indicative

RS Stock No.:
518-761
Mfr. Part No.:
1953237
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MCDN

Pitch

3.5mm

Current

8A

Housing Material

Liquid Crystal Polymer

Number of Contacts

10

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Solder

Connector System

COMBICON FMC 1

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Termination Type

Solder

Row Pitch

3.5mm

Tail Pin Length

1.4mm

Maximum Operating Temperature

100°C

Contact Gender

Male

Mating Pin Length

14mm

Standards/Approvals

cULus Recognised, DIN EN 61760-1, IEC 60068-2-58, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE approval

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Headers have a nominal cross-section of 1.5 mm² and come in a black colour. They support a nominal current of 8 A and a rated voltage of 160 V (III/2). The contact surface is made of tin (Sn), with a pin-type connection. These headers feature 10 potentials, 2 rows, and 5 positions, offering a total of 10 connections. They belong to the MCDN 1.5/-G1-RN-THR product range and have a pitch of 3.5 mm. The mounting method supports both THR soldering and wave soldering.

Designed for integration into the SMT soldering process

Intuitive locking mechanism prevents accidental disconnection

Conductor connection on several levels enables higher contact density
