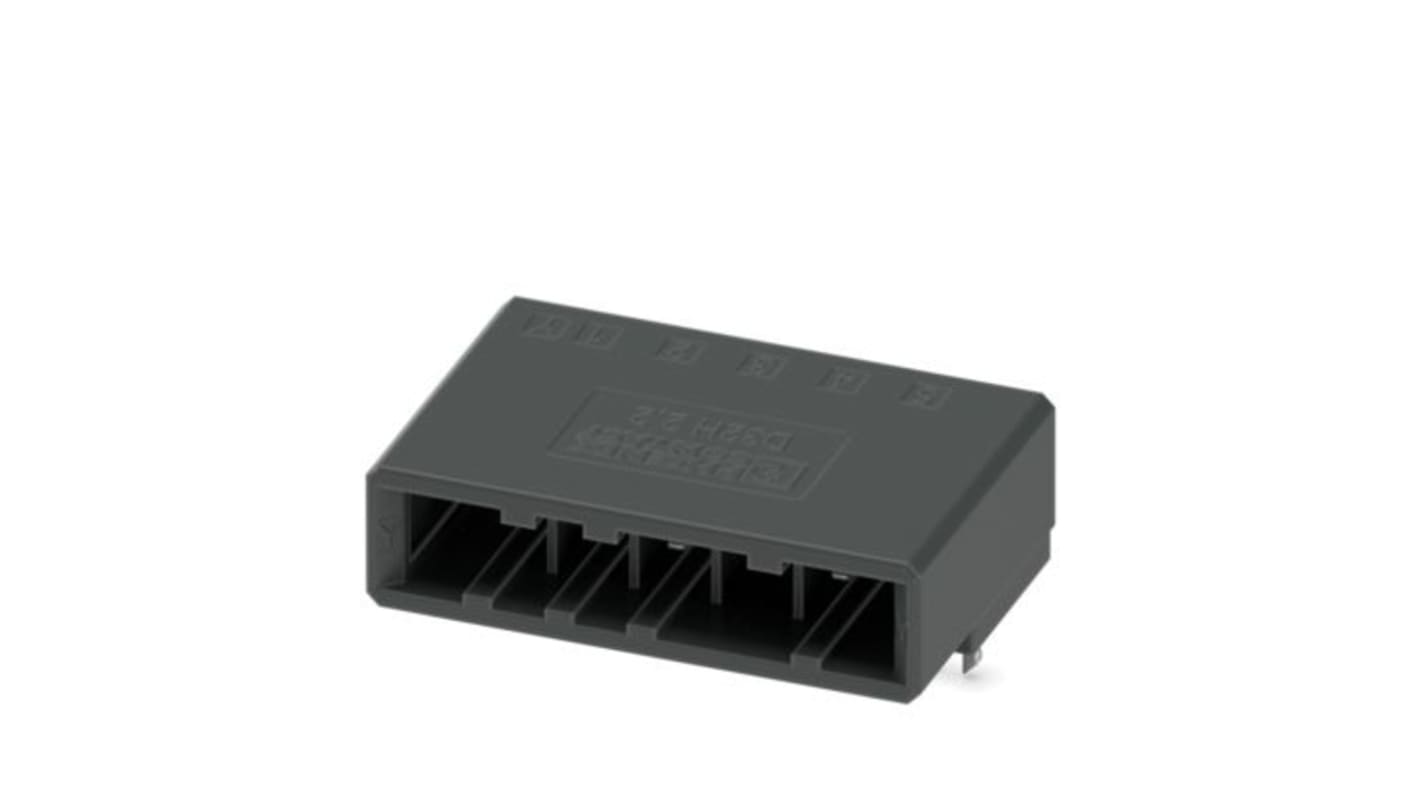

Phoenix Contact D32H Series Wave Soldering Mount PCB Header, 5 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£141.89

(exc. VAT)

£170.27

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£141.89£2.838

*price indicative

RS Stock No.:
517-209
Mfr. Part No.:
1378283
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

D32H

Product Type

PCB Header

Pitch

5.08mm

Current

8A

Housing Material

Polybutylene Terephthalate

Number of Contacts

5

Number of Rows

1

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

CONNEXIS

Contact Material

Copper Alloy

Termination Type

Crimp

Row Pitch

5.08mm

Minimum Operating Temperature

-55°C

Contact Gender

Male

Tail Pin Length

3.8mm

Maximum Operating Temperature

105°C

Standards/Approvals

CHINA RoHS, DIN EN 61984, EU REACH, EU RoHS, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60664-1, ISO 6988, JEDEC JESD 201, UL 94 V0, UL Recognised Approval ID: E118976-20240617

Mating Pin Length

3.8mm

Voltage

32 V

COO (Country of Origin):
CN
The Phoenix Contact PCB header from the D32H series is engineered for reliable performance in a variety of applications. With its robust design and versatile crimp connection method, it ensures secure fastening and high durability, making it a perfect choice for demanding electrical environments. Its compact structure allows for efficient use of space while ensuring that the nominal current capacity reaches 8 A. The innovative snap-in locking mechanism offers intuitive operation and prevents accidental disconnection, which enhances overall safety in your electronic assemblies. Laced with several technical advantages, including compliance with multiple industry standards, this connector makes a dependable choice for engineers looking to optimise their designs and increase operational efficiency.

Designed for wave soldering, enhancing the assembly process

Linear pinning offers a simplified PCB layout

Black housing aligns with aesthetic preferences for modern designs

Multiple electrical safety certifications ensure compliance with global standards

Lightweight construction aids in reducing the overall weight of the assembly

RoHS and WEEE compliance demonstrates commitment to environmental standards
