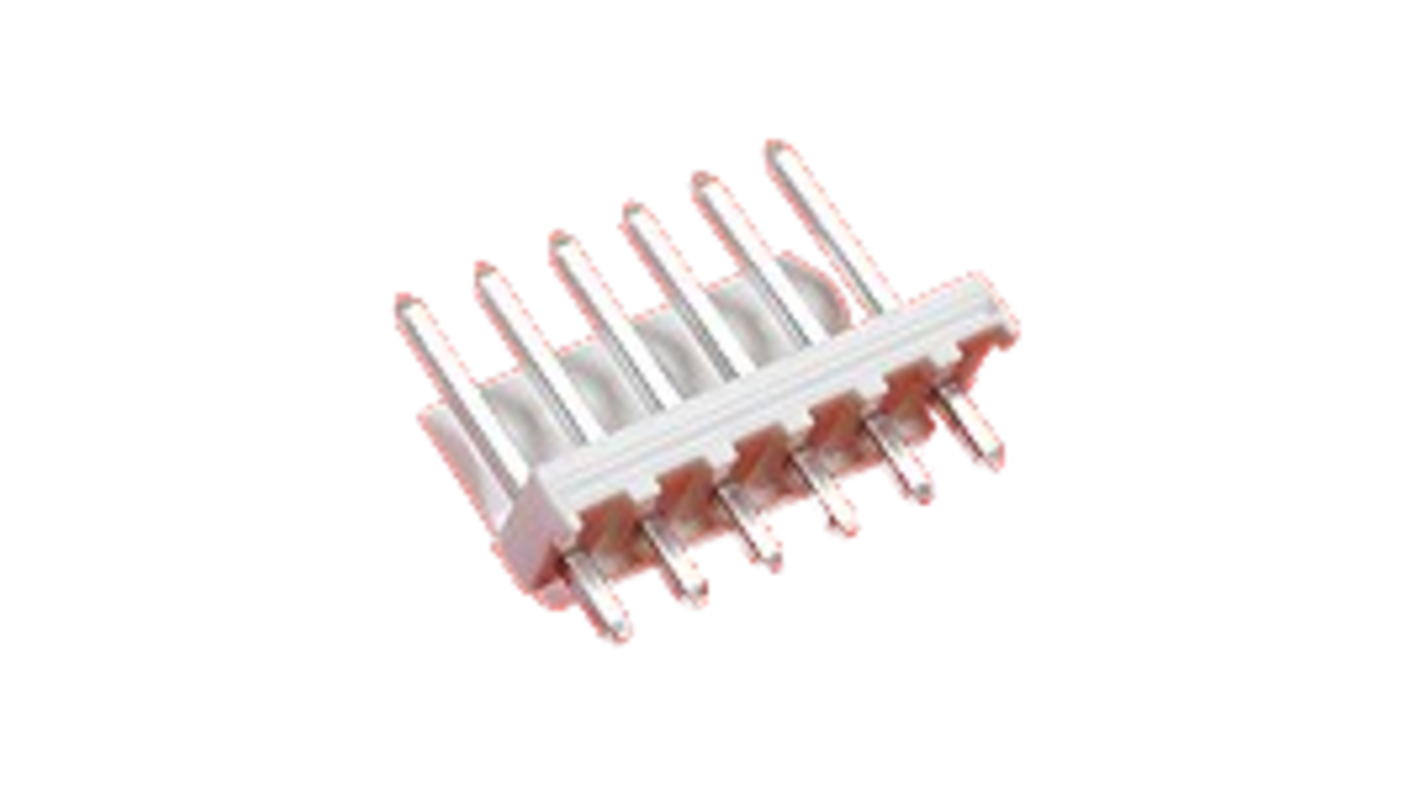

Molex 41791 Series Vertical Through Hole PCB Header, 12 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 507-672
- Mfr. Part No.:
- 41791-0859
- Brand:
- Molex
Subtotal (1 pack of 80 units)*
£182.39
(exc. VAT)
£218.87
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £182.39 | £2.28 |
*price indicative
- RS Stock No.:
- 507-672
- Mfr. Part No.:
- 41791-0859
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 41791 | |
| Product Type | PCB Header | |
| Pitch | 3.96mm | |
| Current | 7A | |
| Number of Contacts | 12 | |
| Housing Material | Polyester | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Row Pitch | 3.96mm | |
| Tail Pin Length | 3.56mm | |
| Standards/Approvals | 94V-0, CSA LR19980, UL E29179 | |
| Voltage | 600 Vrms | |
| Distrelec Product Id | 304-62-208 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 41791 | ||
Product Type PCB Header | ||
Pitch 3.96mm | ||
Current 7A | ||
Number of Contacts 12 | ||
Housing Material Polyester | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Row Pitch 3.96mm | ||
Tail Pin Length 3.56mm | ||
Standards/Approvals 94V-0, CSA LR19980, UL E29179 | ||
Voltage 600 Vrms | ||
Distrelec Product Id 304-62-208 | ||
- COO (Country of Origin):
- IN
The TE Connectivity KK 396 Header, Vertical, Friction Lock is engineered to deliver robust connections in high-performance applications. This PCB header is designed to accommodate up to 12 circuits, featuring a secure friction lock mechanism for reliability. Its gold plating ensures excellent conductivity, making it ideal for power and wire-to-board applications. With a compact vertical orientation, the product is well-suited for space-constrained environments, providing an efficient solution for various electronic designs. The header also boasts compliance with key industry standards, ensuring quality and safety for your projects. Its carefully selected materials, including durable polyester and brass, guarantee longevity and dependability across a wide temperature range. Whether for industrial or consumer electronics, this header promises to meet the demands of modern connectivity.
Designed for vertical integration optimising space in circuit layouts
Friction lock feature enhances connector security during operation
Utilises gold plating for superior conductivity and reliability
Manufactured with high quality polyester and brass materials for durability
Accommodates a maximum of 12 circuits catering to diverse connectivity needs
Engineered to support through hole termination interface for ease of installation
Meets strict compliance standards for enhanced safety and environmental responsibility
