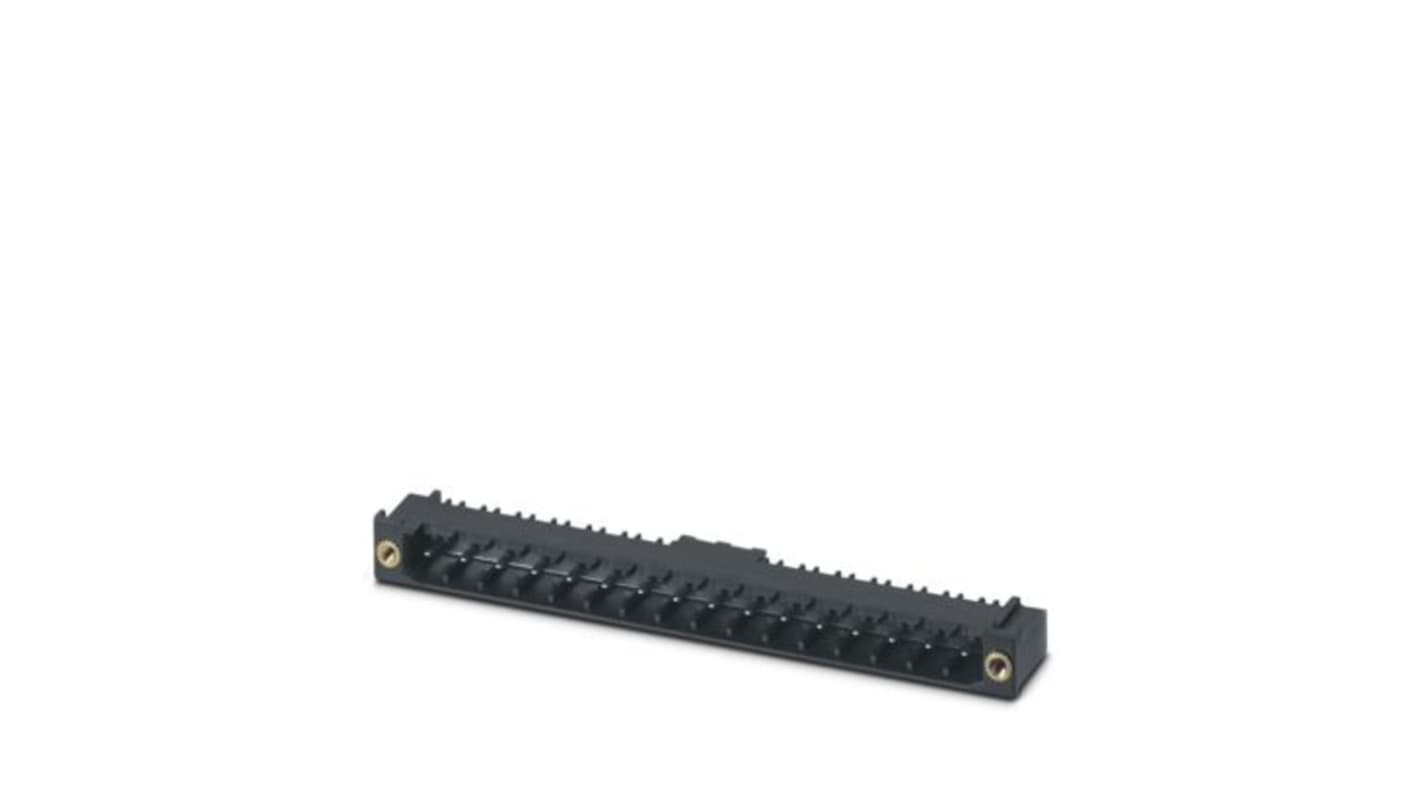

Phoenix Contact CC Series Straight Through Hole PCB Header, 24 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 52 units)*

£551.64

(exc. VAT)

£661.97

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£551.64£10.608

*price indicative

RS Stock No.:
497-026
Mfr. Part No.:
1836900
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

CC

Pitch

5mm

Current

12A

Housing Material

Liquid Crystal Polymer

Number of Contacts

24

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Through Hole

Connector System

COMBICON MSTB 2

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

5mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Tail Pin Length

2mm

Contact Gender

Male

Maximum Operating Temperature

100°C

Standards/Approvals

cULus Recognised

Mating Pin Length

2mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header, designed for seamless integration into the SMT soldering process, stands out with its maximum flexibility, accommodating various connection technologies. Engineered for convenience, it features an automatic locking mechanism and an intuitive release system, ensuring that users can engage and disengage effortlessly. With a careful balance of robust engineering and innovative design, this product meets the demands of high-performance applications. Its impressive specifications include a rating for both electrical and mechanical stability, making it a reliable choice for your projects. Moreover, the component is crafted to endure stringent processing conditions while complying with international standards, confirming its readiness for diverse deployment scenarios.

Equipped with a lock-and-release locking system for secure connections

Constructed with a screwable flange for enhanced mechanical stability

Facilitates device design flexibility with compatibility for multiple connection technologies

Complies with WEEE/RoHS regulations, ensuring an eco-friendly choice

Capable of withstanding various soldering processes, including reflow and wave soldering

Offers a moisture sensitivity level of MSL 1, promoting reliability in operation

Dimensions are optimised for easy integration into existing designs

Supports a broad operating temperature range, catering to diverse environments

Features a tin-plated copper alloy contact for excellent conductivity
