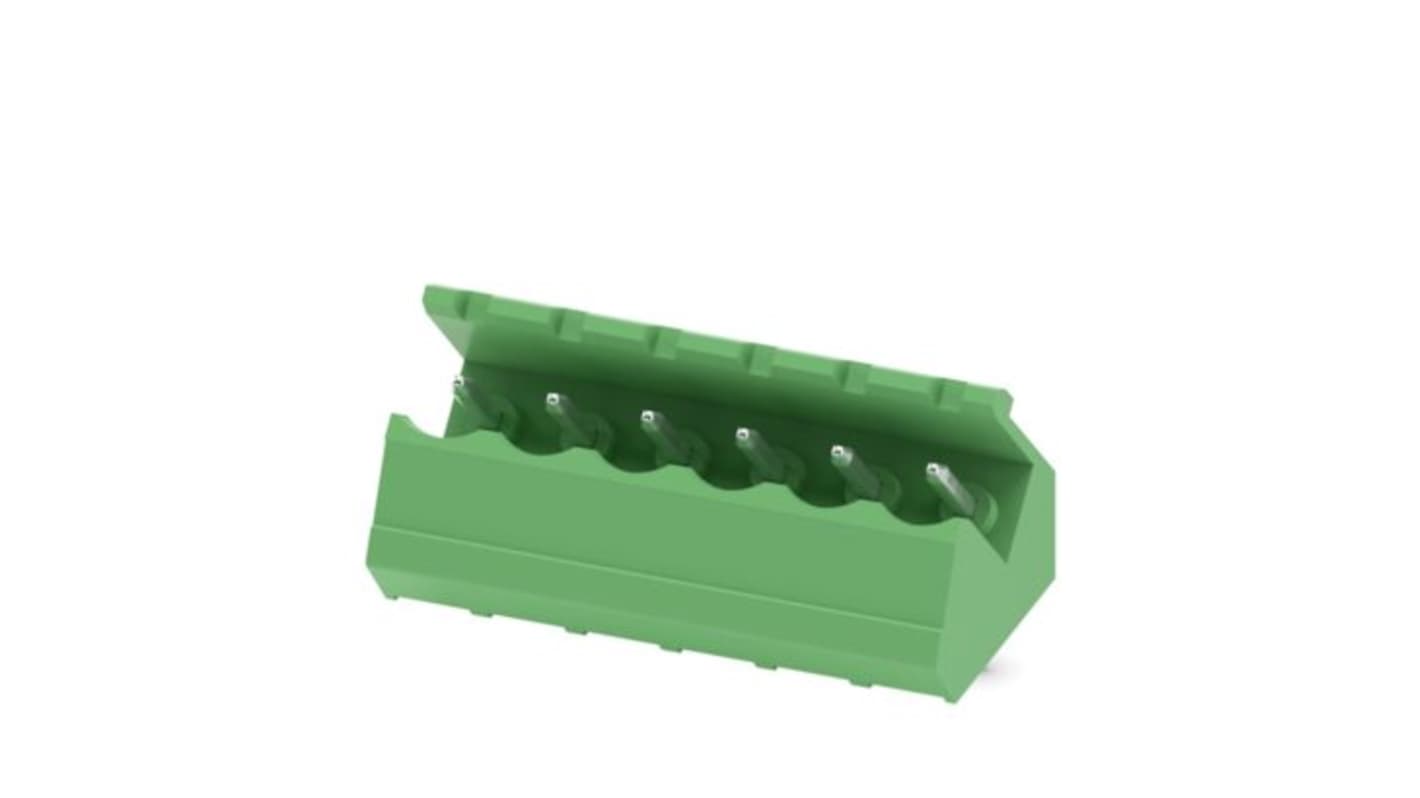

Phoenix Contact SMSTB Series Angled Wave Soldering PCB Header, 6 Contact(s), 5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 492-796
- Mfr. Part No.:
- 1769272
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£140.49
(exc. VAT)
£168.59
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £140.49 | £2.81 |
*price indicative
- RS Stock No.:
- 492-796
- Mfr. Part No.:
- 1769272
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SMSTB | |
Pitch | 5mm | |
Number of Contacts | 6 | |
Number of Rows | 1 | |
Body Orientation | Angled | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Wave Soldering | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SMSTB | ||
Pitch 5mm | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Body Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Wave Soldering | ||
- COO (Country of Origin):
- PL
The Phoenix Contact SMSTB 2.5/6-G PCB header is designed to enhance your device's flexibility with its versatile connection technologies. Engineered for efficiency, it accommodates various configurations, allowing seamless integration into your applications. With a nominal cross-section of 2.5 mm² and a pitch of 5 mm, this PCB header guarantees reliable electrical connections and optimal performance in demanding environments. Its robust construction is complimented by a user-friendly design, providing ease of mounting through wave soldering. The green housing reflects its quality, ensuring it meets stringent standards for compliance and safety. Ideal for a variety of electronic devices, this product epitomises quality and reliability, making it a definitive choice for engineers seeking dependable solutions.
Offers maximum flexibility in device design through compatibility with various connection technologies
Angled connection facilitates multi-row arrangement on PCBs, improving layout efficiency
Constructed with a tin-plated contact material for enhanced conductivity
Optimised for wave soldering, simplifying the assembly process
Complies with IEC standards, ensuring safe and reliable operation
Lightweight design contributes to overall device efficiency without compromising integrity
Provides a nominal current of 12 A, suitable for a range of applications
Features a robust locking mechanism that secures connections during operation
Angled connection facilitates multi-row arrangement on PCBs, improving layout efficiency
Constructed with a tin-plated contact material for enhanced conductivity
Optimised for wave soldering, simplifying the assembly process
Complies with IEC standards, ensuring safe and reliable operation
Lightweight design contributes to overall device efficiency without compromising integrity
Provides a nominal current of 12 A, suitable for a range of applications
Features a robust locking mechanism that secures connections during operation
