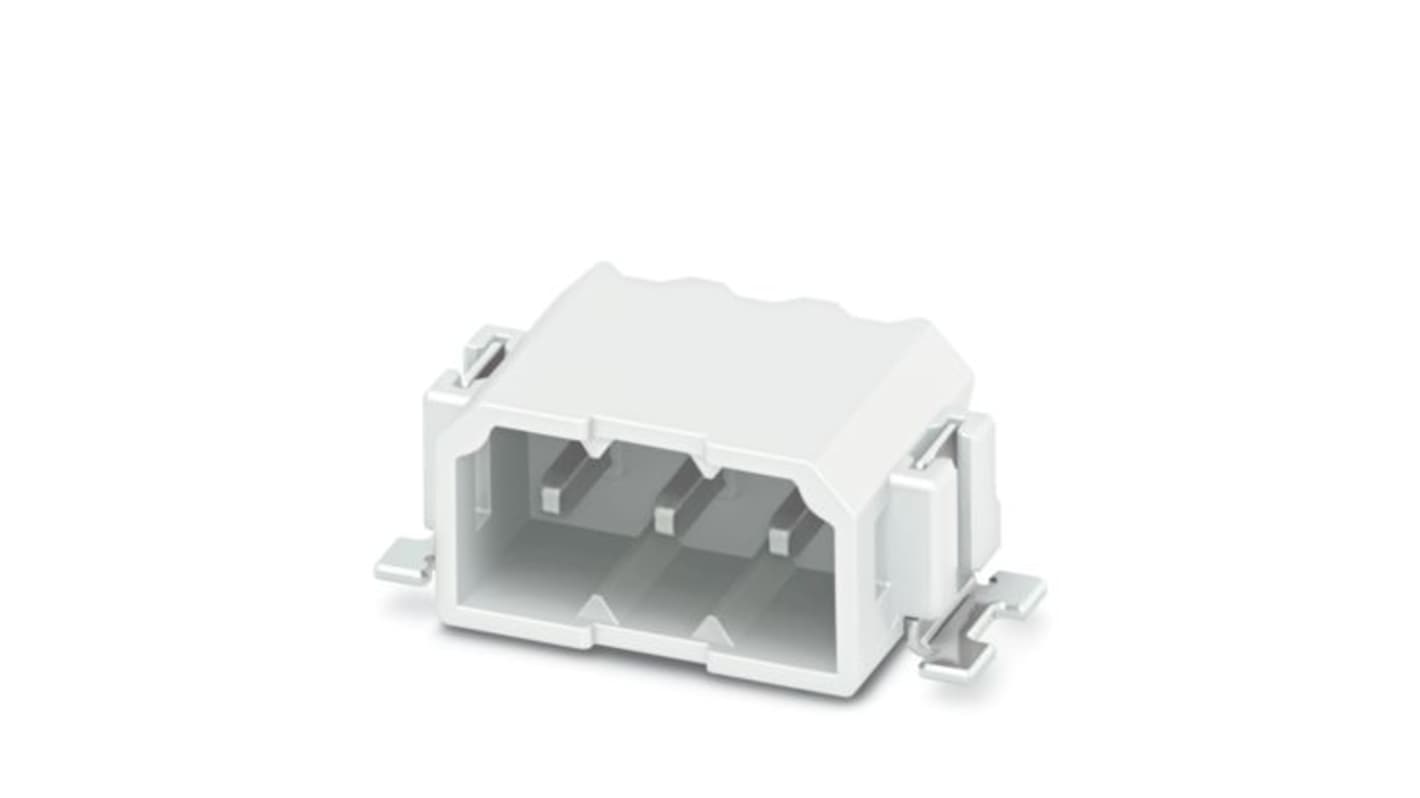

Phoenix Contact PTSM Series Straight Surface PCB Header, 7 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 492-754
- Mfr. Part No.:
- 1814964
- Brand:
- Phoenix Contact
Subtotal (1 pack of 600 units)*
£839.68
(exc. VAT)
£1,007.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £839.68 | £1.399 |
*price indicative
- RS Stock No.:
- 492-754
- Mfr. Part No.:
- 1814964
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | PTSM | |
| Product Type | PCB Header | |
| Pitch | 2.5mm | |
| Current | 6A | |
| Housing Material | Polyamide | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON PTSM | |
| Mount Type | Surface | |
| Contact Plating | Tin, Nickel | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.5mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CSA, cULus, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, UL 94 V0, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series PTSM | ||
Product Type PCB Header | ||
Pitch 2.5mm | ||
Current 6A | ||
Housing Material Polyamide | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON PTSM | ||
Mount Type Surface | ||
Contact Plating Tin, Nickel | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.5mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CSA, cULus, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, UL 94 V0, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- IN
The Phoenix Contact expertly designed PCB header tailored for modern electronic applications. This component showcases a robust signal white finish, ensuring a stable appearance even after soldering. Its compact dimensions and 2.5 mm pitch make it ideal for seamless integration into SMD soldering processes. With a nominal current capability of 6 A and a rated voltage of 160 V, this PCB header is engineered to meet the demands of various connectivity needs while ensuring reliability and performance. Additionally, it is supplied in tape-on-reel packaging for automated mounting, optimising production efficiency. The combination of its innovative design and reliable materials makes it an essential choice for professionals seeking durability and quality in their electronic components.
Stable colour during welding and operation
Designed for compatibility with automated SMT processes
Provided in tape-on-reel packaging for easy handling
Features additional solder anchors to reduce mechanical strain
Compliant with WEEE and RoHS regulations for environmental safety
Constructed from high-quality materials ensuring longevity
Tested to meet strict durability and performance standards
Suitable for a wide range of applications in electronics
