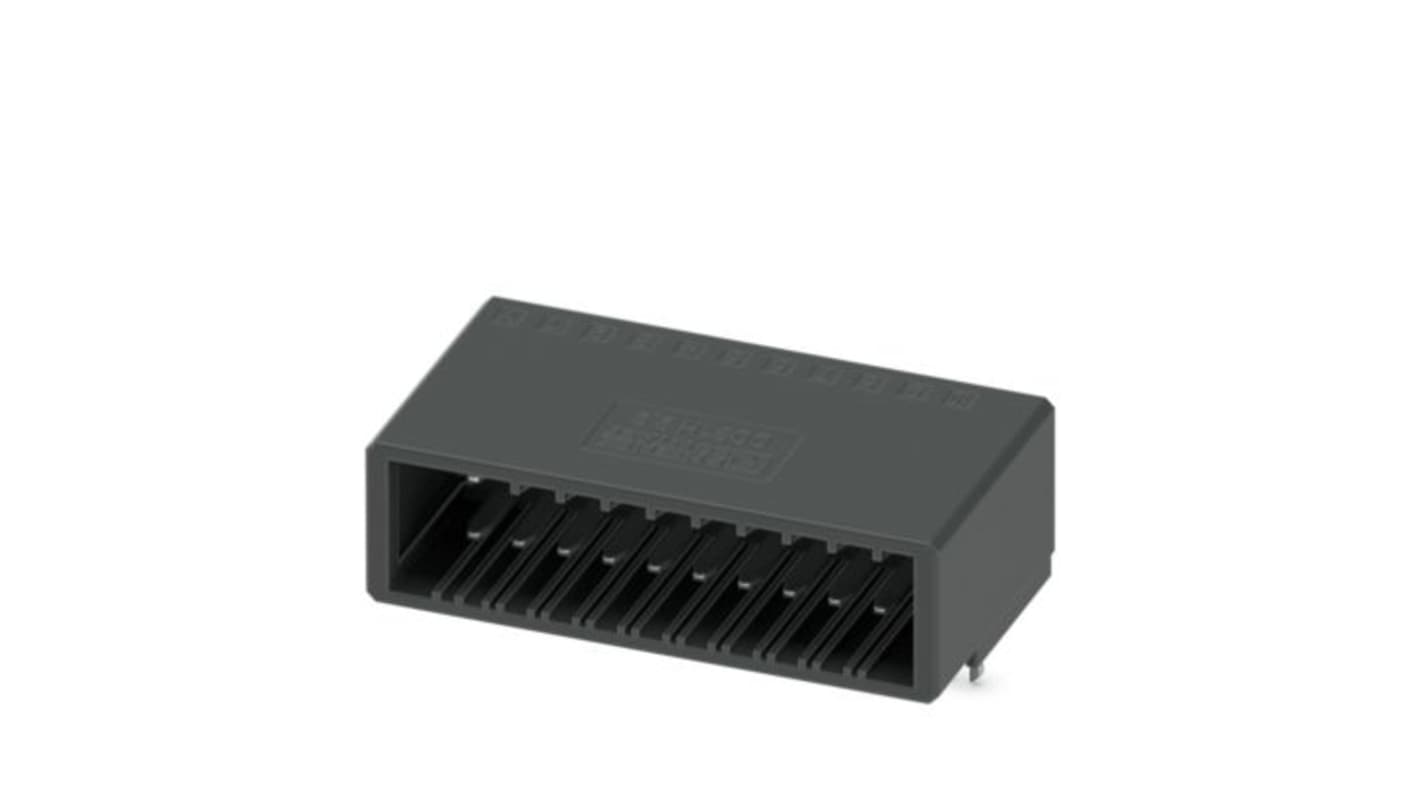

Phoenix Contact DD31H Series Wave Soldering Mount PCB Header, 20 Contact(s), 3.81 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 489-211
- Mfr. Part No.:
- 1341395
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£322.49
(exc. VAT)
£386.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £322.49 | £6.45 |
*price indicative
- RS Stock No.:
- 489-211
- Mfr. Part No.:
- 1341395
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DD31H | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.81mm | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | CONNEXIS | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.8mm | |
| Standards/Approvals | cULus Recognised, DIN EN 61984, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, JEDEC JESD 201, UL 94 V0, UL Recognised | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DD31H | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.81mm | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System CONNEXIS | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Mating Pin Length 3.8mm | ||
Standards/Approvals cULus Recognised, DIN EN 61984, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, JEDEC JESD 201, UL 94 V0, UL Recognised | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header is an essential component designed for efficiency and reliability in electronic applications. This product features a dual-row configuration with 20 positions, ensuring ample connectivity for various circuits. Built with high-quality materials, it supports a nominal current of 8 A and a rated voltage of 160 V, making it ideal for a broad range of uses. Its compact design allows for effective space utilisation on printed circuit boards, while the intuitive snap-in locking mechanism ensures secure connections, reducing the risk of accidental disconnections. This product's compliance with international standards such as DIN EN 61984 highlights its reliability and functional safety. With easy mounting via wave soldering and a user-friendly plug-in design, this PCB header allows for straightforward installation and maintenance, making it an excellent choice for both professional and hobbyist projects.
Compact design allows for high packing density on PCBs
Intuitive locking mechanism prevents accidental disconnections
Compatible with various connector patterns for versatile applications
Constructed from durable materials that ensure longevity and performance
Designed for easy PCB replacement with plug-in modules
Meets stringent international compliance standards for safety and reliability
Optimised for simple wave soldering installation
Offers a robust current-carrying capacity for demanding applications
