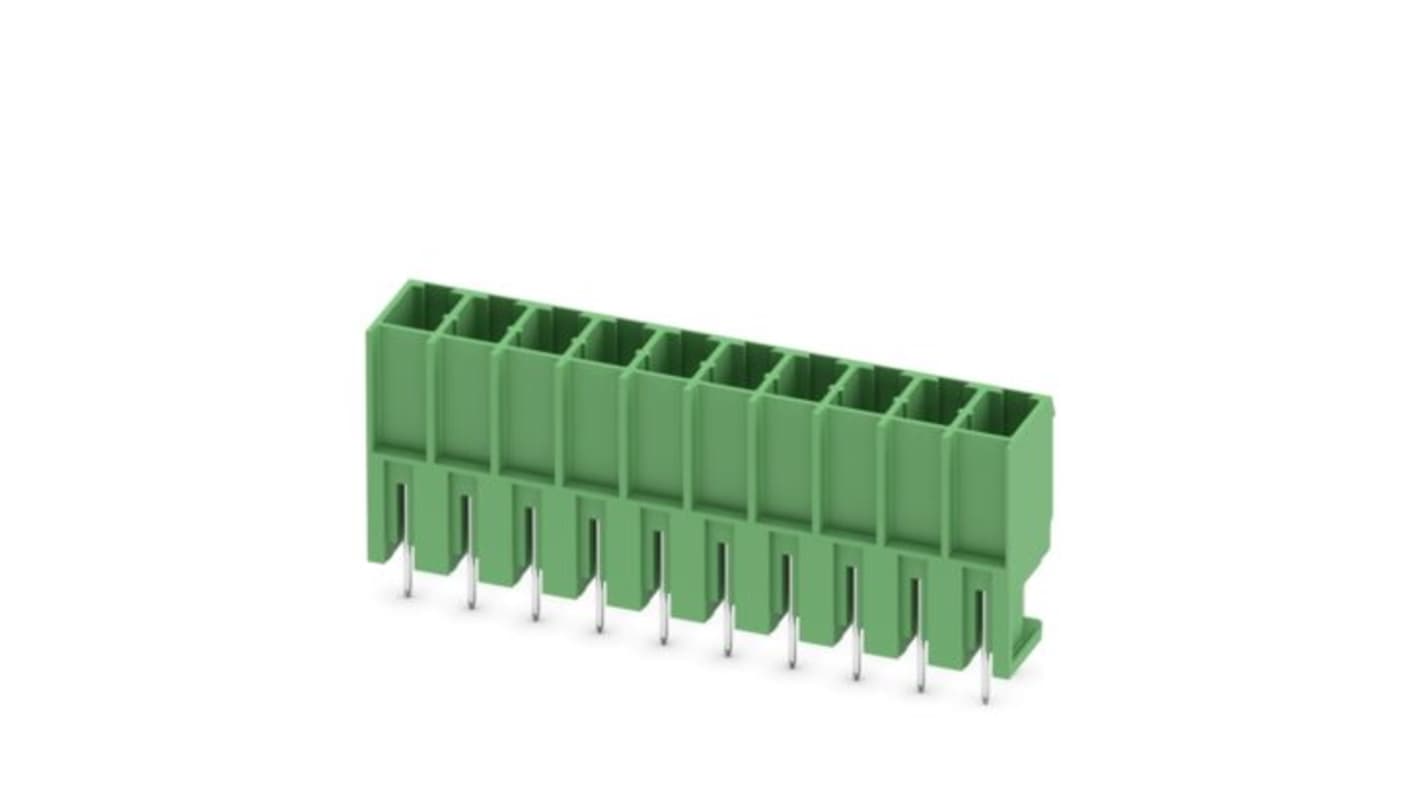

Phoenix Contact PCV Series Straight Wave Soldering Mount PCB Header, 10 Contact(s), 7.62 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£744.14

(exc. VAT)

£892.97

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£744.14£14.883

*price indicative

RS Stock No.:
489-042
Mfr. Part No.:
1804768
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

PCV

Current

2A

Pitch

7.62mm

Number of Contacts

10

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON PC 4 hybrid

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Termination Type

Solder

Row Pitch

7.62mm

Minimum Operating Temperature

-40°C

Contact Gender

Male

Maximum Operating Temperature

100°C

Tail Pin Length

5mm

Standards/Approvals

BV Approval ID: 35433/C0 BV, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19920722, DNV GL Approval ID: TAE00001EZ, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, JEDEC JESD 201, LR Approval ID: LR21308805TA, UL 94 V0

Mating Pin Length

5mm

Voltage

63 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header is designed for flexibility and efficiency in device connections, featuring a robust construction and a user-friendly mounting method. With its nominal cross-section of 4 mm² and a pitch of 7.62 mm, this component ensures secure connections for a variety of applications. The combination of a 20 A nominal current capacity and a rated voltage of 630 V makes it a reliable choice for demanding electrical requirements. Featuring a linear pinning layout, the product facilitates straightforward PCB replacements with plug-in modules, catering to diverse connector technologies. Additionally, it adheres to international standards, ensuring compliance with modern demands for safety and reliability in electrical components.

Provides easy installation with wave soldering mounting type

Offers excellent durability with a flammability rating of V0

Supports a wide temperature range for diverse environmental applications

Constructed with a RoHS-compliant design for eco-friendliness

Allows for maximum design flexibility by accommodating multiple connection technologies

Designed with a green housing for easy identification in assemblies

Ensures high contact reliability with low contact resistance

Offers an effective solution for PCB replacements, minimising downtime
