Phoenix Contact CCV Series Straight Through Hole PCB Header, 21 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 52 units)*

£501.65

(exc. VAT)

£601.98

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£501.65£9.647

*price indicative

RS Stock No.:
488-998
Mfr. Part No.:
1837556
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

CCV

Current

12A

Pitch

5mm

Housing Material

Liquid Crystal Polymer

Number of Contacts

21

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Through Hole

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

5mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Contact Gender

Male

Tail Pin Length

2mm

Mating Pin Length

2mm

Standards/Approvals

CHINA RoHS, cULus Recognised, EU REACH, EU RoHS, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-9-1, ISO 6988:1985-02

Voltage

32 V

COO (Country of Origin):
DE

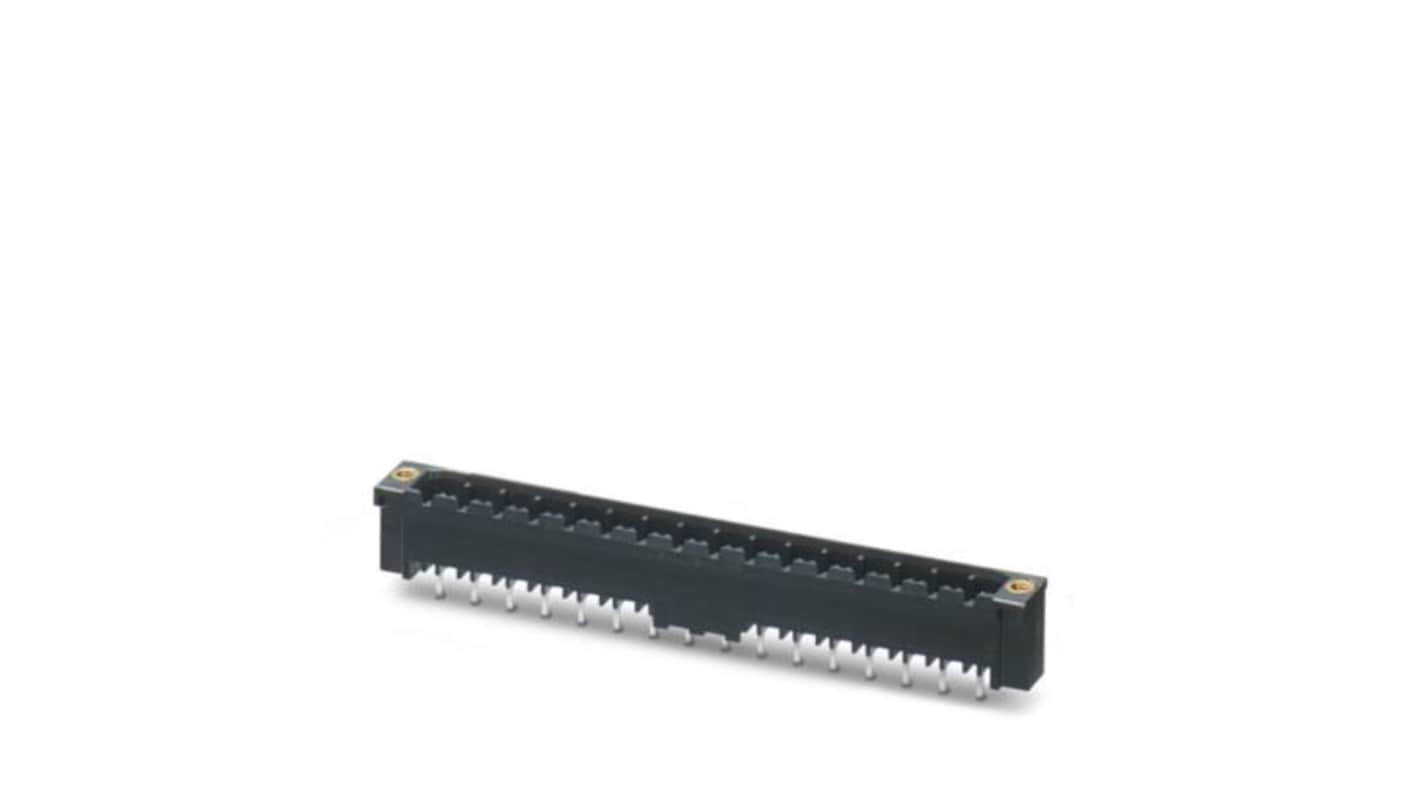

The Phoenix Contact CCV 2.5/21-GF-LR P20 THR PCB header represents a pinnacle in connector technology, specifically designed for seamless integration into modern SMT soldering processes. This robust component features a sleek, black housing and is built to facilitate multiple connection technologies, providing maximum flexibility for device design. Its carefully engineered pin layout ensures reliable connections, while the lock-and-release locking system enhances mechanical stability. With a high nominal current rating and impressive rated voltage specifications, this PCB header is ideal for demanding applications, making it a trusted choice in various electronic assemblies.

Designed for efficient integration into SMT soldering processes

Offers flexibility in device designs with compatibility for various connection technologies

Features a screwable flange for enhanced mechanical stability

Automatic locking mechanism allows for easy and intuitive operation

Manufactured with high-quality materials to ensure durability and reliability

Complies with RoHS standards, making it an environmentally-friendly choice

Suitable for through hole reflow applications, ensuring versatility
