Phoenix Contact MCV Series Vertical Wave Soldering Mount PCB Header, 8 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded

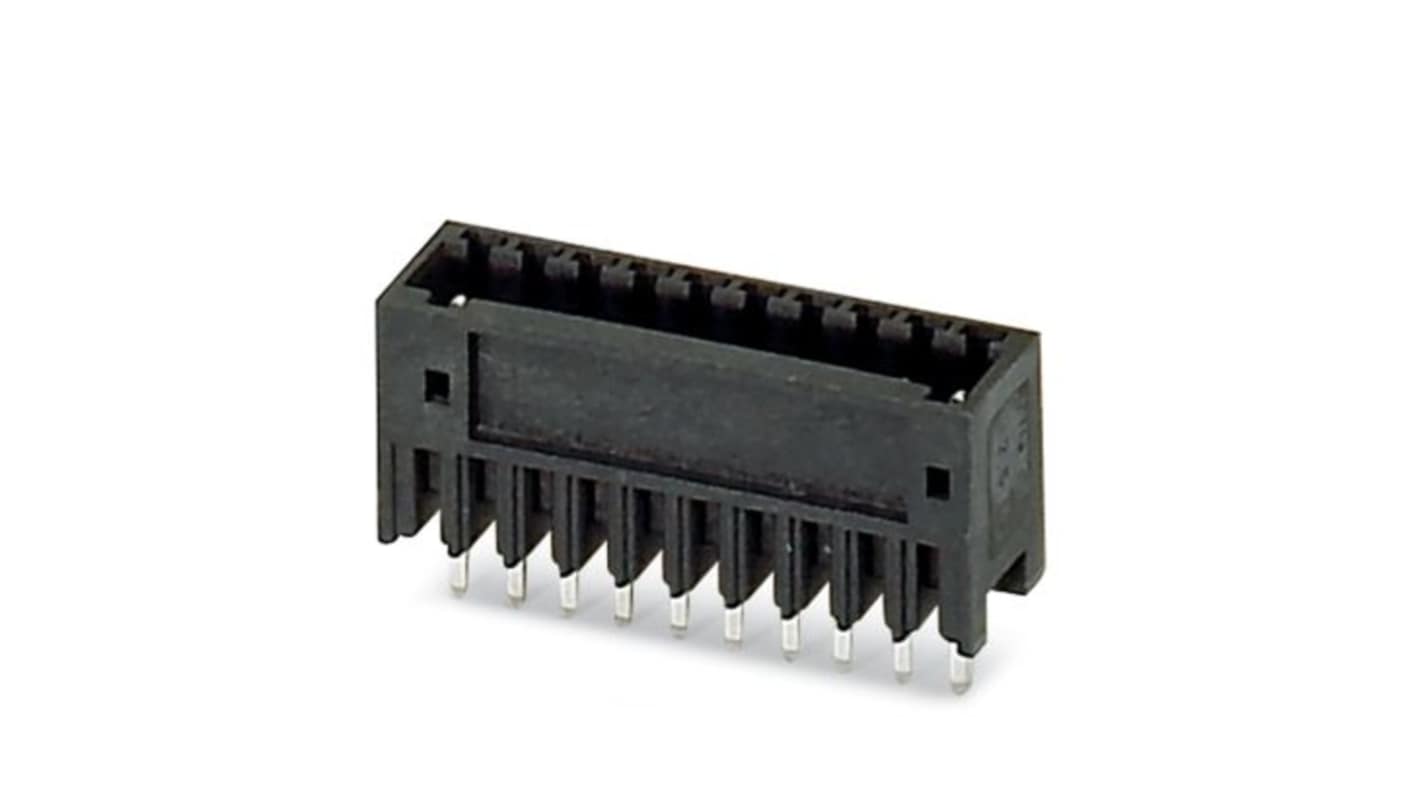

Image representative of range

View all PCB Headers

Subtotal (1 pack of 220 units)*

£416.91

(exc. VAT)

£500.29

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£416.91£1.895

*price indicative

RS Stock No.:
488-038
Mfr. Part No.:
1963816
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MCV

Product Type

PCB Header

Pitch

2.5mm

Current

4A

Number of Contacts

8

Housing Material

Polyamide

Number of Rows

1

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON FK MC 0

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

2.5mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Contact Gender

Male

Maximum Operating Temperature

100°C

Tail Pin Length

3.5mm

Standards/Approvals

cULus Recognised, DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, ISO 6988:1985-02, VDE report

Mating Pin Length

3.5mm

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header represents a reliable solution for efficient electronic connections. Engineered for exceptional performance, this product features a robust design tailored for through-hole reflow soldering, ensuring easy integration into automated production processes. Its vertical connection allows for a multi-row arrangement on the PCB, optimising space and functionality. With a nominal current capacity of 4 A and rated voltage of 160 V, this header is well-suited for demanding applications. Additionally, its user-friendly packaging streamlines handling and inventory management, making it an Ideal choice for modern assembly lines.

Designed for enhanced integration into the SMT soldering process

Compact size facilitates efficient layout design on PCBs

Vertical connection supports multi-row configurations

Constructed for reliability with low contact resistance

Provides excellent mechanical stability during operation

Suitable for high-temperature processing and reflow techniques

Features a colour-coded housing for easy identification

Manufactured with RoHS-compliant materials, ensuring environmental safety

Backed by rigorous testing to meet international standards
