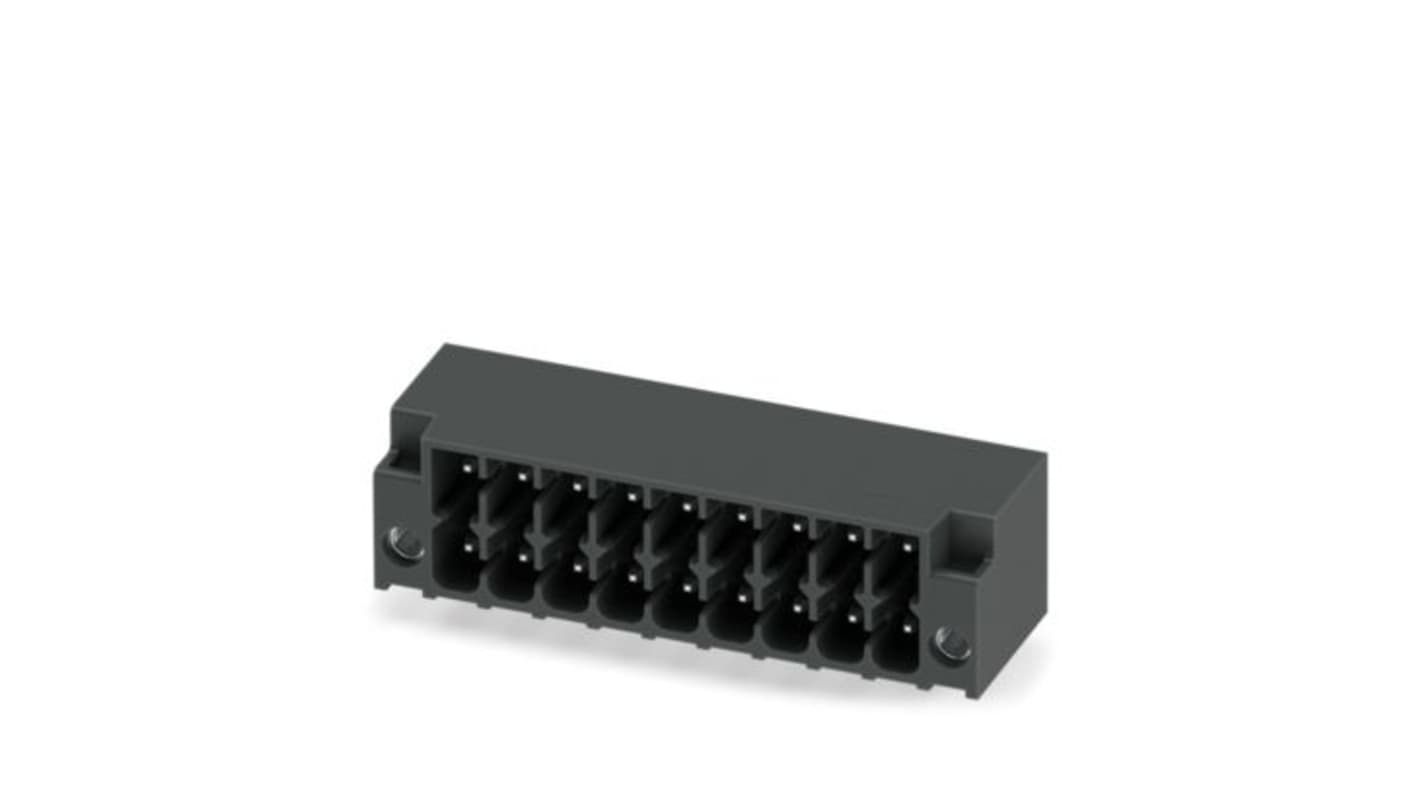

Phoenix Contact DMC Series Through Hole PCB Header, 18 Contact(s), 3.5 mm Pitch, 2 Row(s)

Image representative of range

View all PCB Headers

Subtotal (1 pack of 180 units)*

£556.44

(exc. VAT)

£667.73

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£556.44£3.091

*price indicative

RS Stock No.:
487-706
Mfr. Part No.:
1706055
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

DMC

Product Type

PCB Header

Pitch

3.5mm

Current

8A

Number of Contacts

18

Housing Material

Liquid Crystal Polymer

Number of Rows

2

Mount Type

Through Hole

Connector System

COMBICON

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

3.5mm

Termination Type

Through-Hole Reflow (THR) Soldering

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Contact Gender

Male

Tail Pin Length

2mm

Standards/Approvals

CSA, cULus, IEC 60068-2-70:1995-12, IEC 60068-2-82/JEDEC JESD 201, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, VDE

Mating Pin Length

2mm

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Header is designed with a standard pin connector pattern alignment. It features a lock-and-release locking system for secure connection. The mounting method uses a lock & release threaded flange for stability, with a THR soldering type. The pin layout is linear, ensuring easy integration, and the contact material is MADE of copper alloy for durability. Additionally, the surface characteristics are tin-plated, providing enhanced corrosion resistance.

Designed for integration into the SMT soldering process

Screwable flange for superior mechanical stability

Automatic locking and intuitive release through Lock and Release operating lever in contrasting colour

Conductor connection on several levels enables higher contact density

Small component size for applications where space is at a premium
