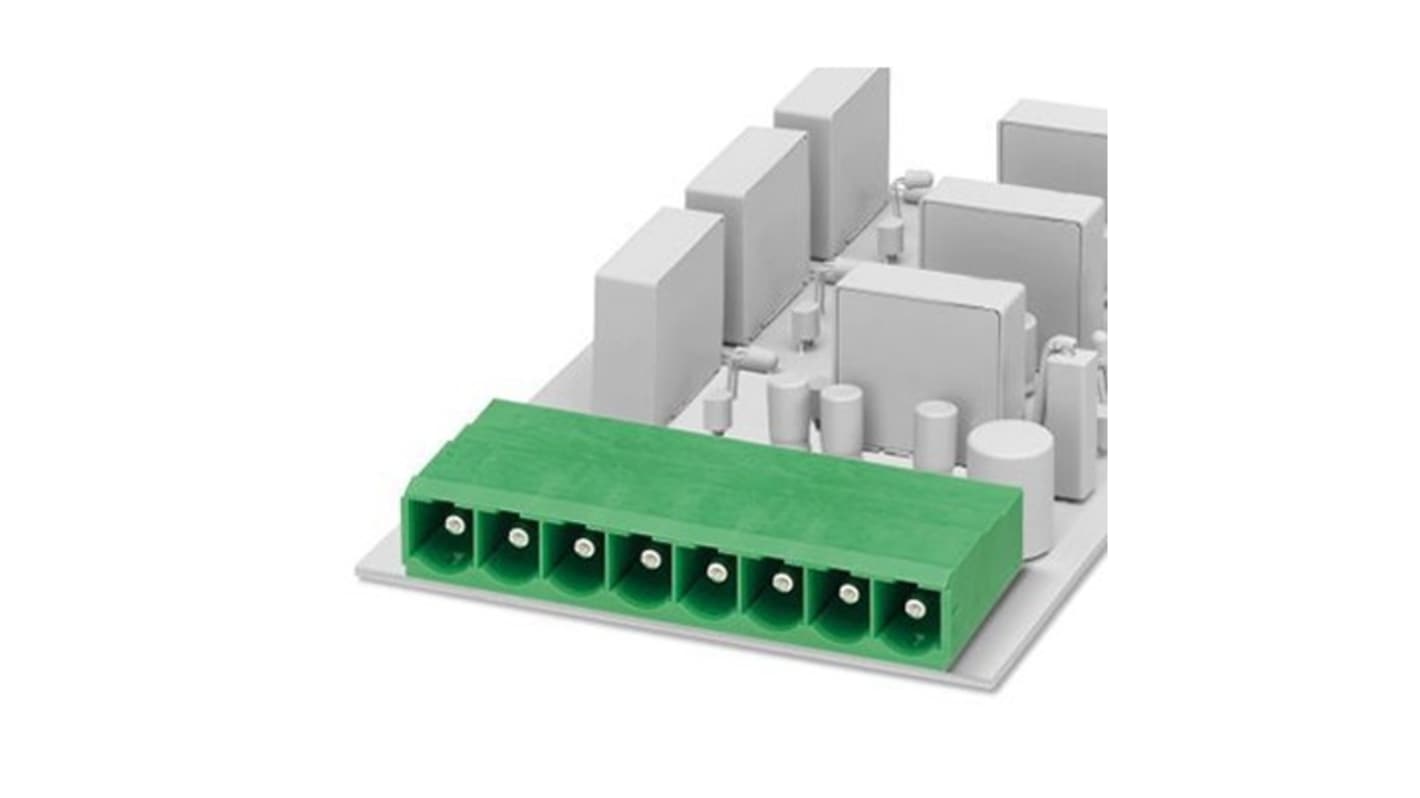

Phoenix Contact PC Series Straight Wave Soldering Mount PCB Header, 8 Contact(s), 10.16 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 483-805
- Mfr. Part No.:
- 1913701
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£1,146.45
(exc. VAT)
£1,375.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,146.45 | £22.929 |
*price indicative
- RS Stock No.:
- 483-805
- Mfr. Part No.:
- 1913701
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | PC | |
| Current | 76A | |
| Pitch | 10.16mm | |
| Number of Contacts | 8 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON PC 6 hybrid | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 10.16mm | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 5mm | |
| Mating Pin Length | 5mm | |
| Standards/Approvals | cULus, IEC 61984, VDE | |
| Voltage | 1000 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series PC | ||
Current 76A | ||
Pitch 10.16mm | ||
Number of Contacts 8 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON PC 6 hybrid | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 10.16mm | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 5mm | ||
Mating Pin Length 5mm | ||
Standards/Approvals cULus, IEC 61984, VDE | ||
Voltage 1000 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact innovative PCB header offers a robust solution for diverse electronic applications. Designed with exceptional flexibility, it accommodates various connection technologies, ensuring seamless integration into your device architecture. The header's engineering prioritises reliability, featuring a well-known mounting principle that encourages its worldwide use. With a nominal current handling of up to 76 A, this product guarantees optimal performance in demanding environments, making it a top choice for professionals in the field. Its smart design enables easy PCB replacement, which significantly enhances device maintenance and efficiency. Additionally, the header is manufactured with environmentally compliant materials, catering to modern sustainability standards.
Versatile compatibility allows integration with multiple connection technologies
Simplifies PCB replacement processes, improving maintenance efficiency
Designed for high current capacity to meet challenging application needs
Crafted from environmentally friendly materials to support sustainable practices
Features a standard pin layout for effortless installation and alignment
