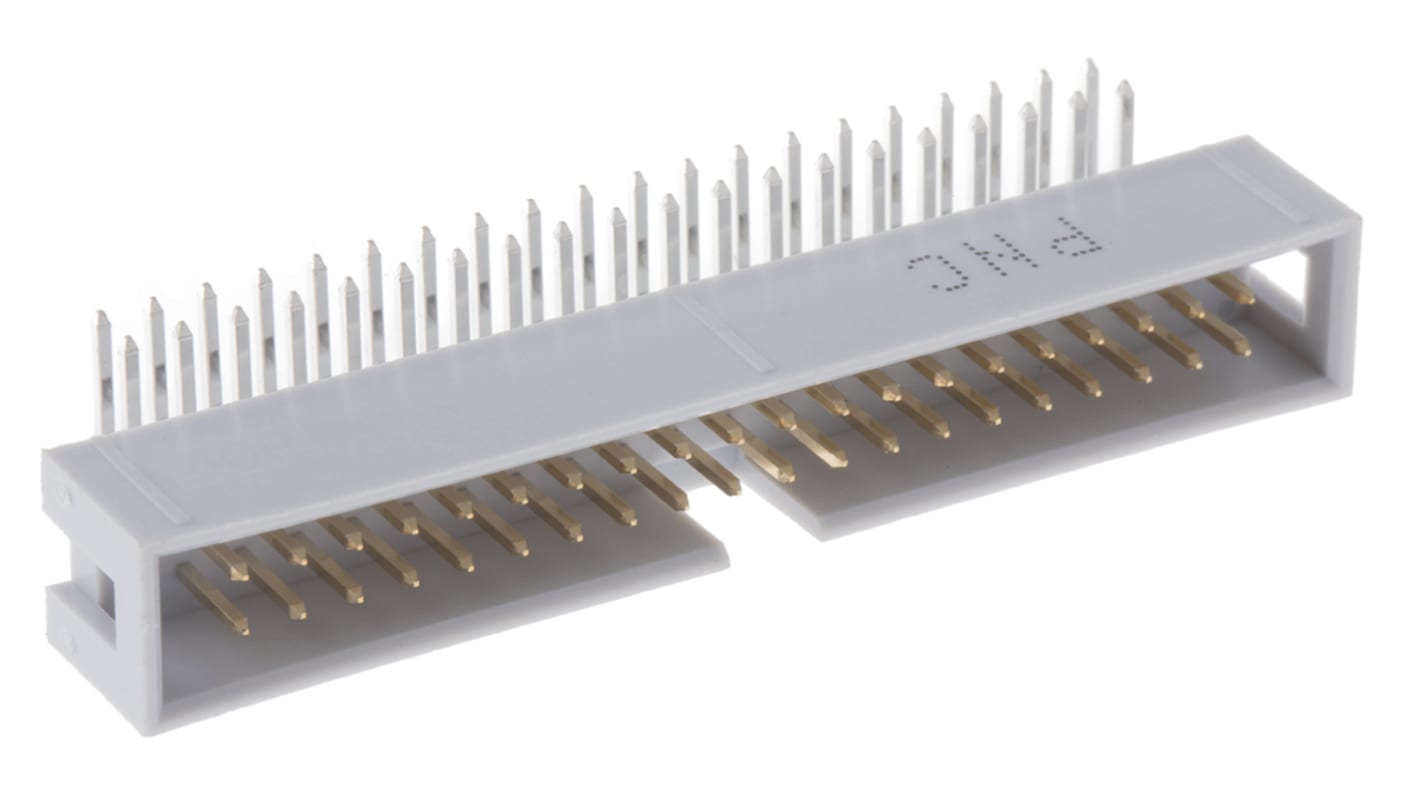

BM Polyco 057 Series Right Angle PCB Header, 40 Contact(s), 2.54mm Pitch, 2 Row(s)
- RS Stock No.:
- 482-250
- Mfr. Part No.:
- 057-040-053
- Brand:
- BM Polyco
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 482-250
- Mfr. Part No.:
- 057-040-053
- Brand:
- BM Polyco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BM Polyco | |
| Series | 057 | |
| Pitch | 2.54mm | |
| Number of Contacts | 40 | |
| Number of Rows | 2 | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Copper | |
| Current Rating | 3A | |
| Voltage Rating | 300.0 V ac | |
| Gender | Male | |
| Select all | ||
|---|---|---|
Brand BM Polyco | ||
Series 057 | ||
Pitch 2.54mm | ||
Number of Contacts 40 | ||
Number of Rows 2 | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Copper | ||
Current Rating 3A | ||
Voltage Rating 300.0 V ac | ||
Gender Male | ||
- COO (Country of Origin):
- US
Boxed Headers
2-row boxed headers compatible with BT224 type bump polarised and universal sockets
Polyester mouldings to UL94-V with gold plated copper alloy contacts
Solder spill connections on a 0.1in grid will be suitable for standard 1.6mm thick PCBs
Polyester mouldings to UL94-V with gold plated copper alloy contacts
Solder spill connections on a 0.1in grid will be suitable for standard 1.6mm thick PCBs
Note
Overall header length = 7.9 + (no. of ways x 2.54) mm
Standards
IDC; BT224
