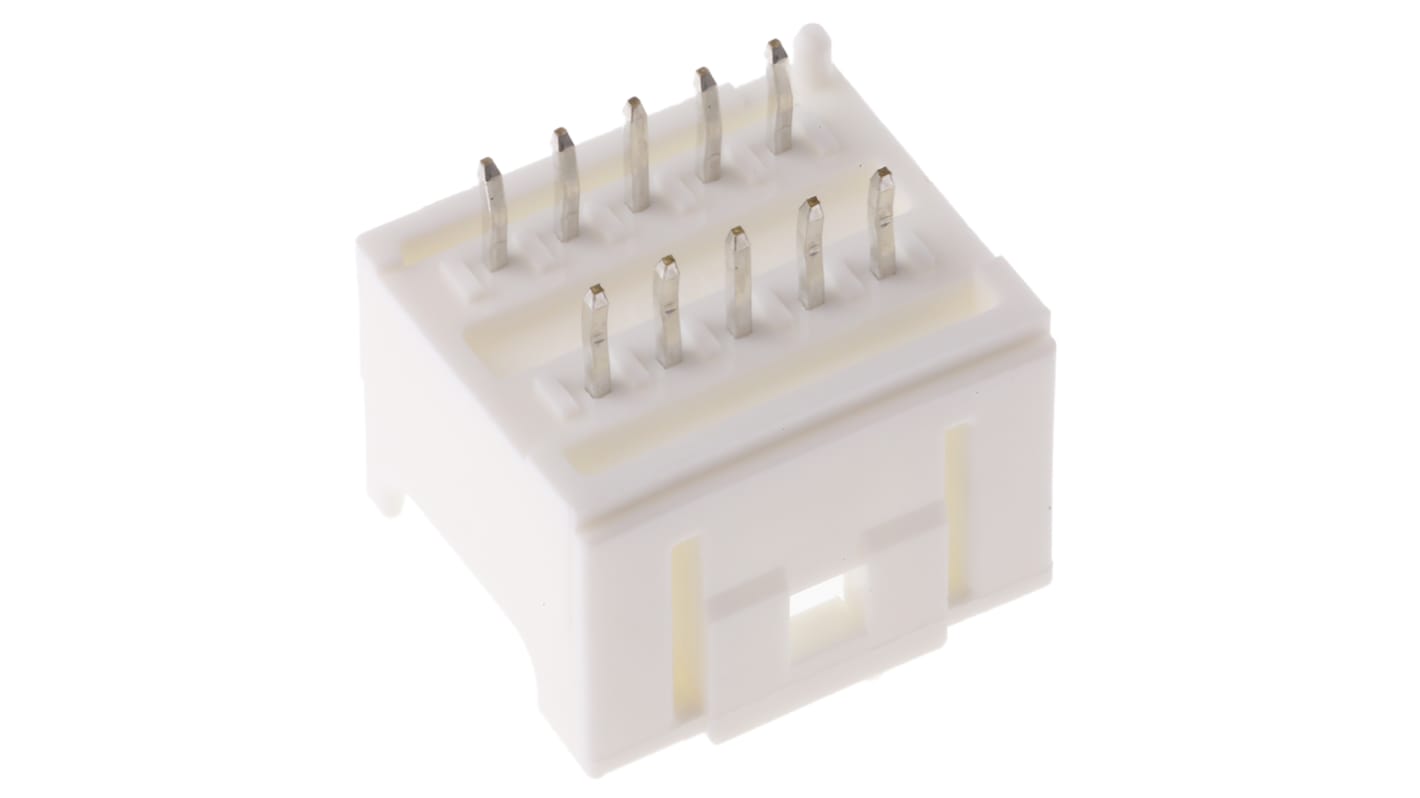

Molex MicroClasp Series Straight Surface Mount PCB Header, 10 Contact(s), 2.0mm Pitch, 2 Row(s), Shrouded

RS Stock No.:: 406-439
Mfr. Part No.:: 55917-1010
Brand:: Molex

Molex MicroClasp Series Straight Surface Mount PCB Header, 10 Contact(s), 2.0mm Pitch, 2 Row(s), Shrouded

690 In stock - FREE next working day delivery available

10 available from Europe for delivery within 1 working day(s).

Added

Price Each (In a Pack of 10)

£0.487

(exc. VAT)

£0.584

(inc. VAT)

Units	Per unit	Per Pack*
10 - 190	£0.487	£4.87
200 - 740	£0.408	£4.08
750 - 2990	£0.366	£3.66
3000 - 5990	£0.325	£3.25
6000 +	£0.312	£3.12
*price indicative

RS Stock No.:: 406-439
Mfr. Part No.:: 55917-1010
Brand:: Molex

Technical Reference

Legislation and Compliance

Product Details

Double Row Vertical Header

2.0mm Wire to Board - Molex MicroClasp™ Range

MicroClasp™ 2.00mm pitch Wire to Board system provides space savings and easy mating/unmating compared to similar 2.00mm and 2.50mm pitch Wire to Board systems. MicroClasp™ includes a unique inner positive lock that provides latch protection, secure retention and an audible mating click. The terminal design of the MicroClasp™ series offers low insertion and withdrawal forces and is able to carry 3.0 A current in a compact 2.00mm pitch design.

2.00mm (0.079”) Pitch
Inner Positive Lock
Low insertion force terminal design
Two-point contact design
High-current contact design
Housing lance system
PCB space savings
Latch protection/secure mating/audible “click”
Easy mating/unmating
Carry up to 3.0A
Terminal protection and secure retention

Specifications

Attribute	Value
Series	MicroClasp
Pitch	2.0mm
Number of Contacts	10
Number of Rows	2
Body Orientation	Straight
Shrouded/Unshrouded	Shrouded
Mounting Type	Surface Mount
Connector System	Wire to Board
Termination Method	Solder
Contact Plating	Tin
Contact Material	Brass
Current Rating	3.0A
Series Number	55917
Voltage Rating	250.0 V
