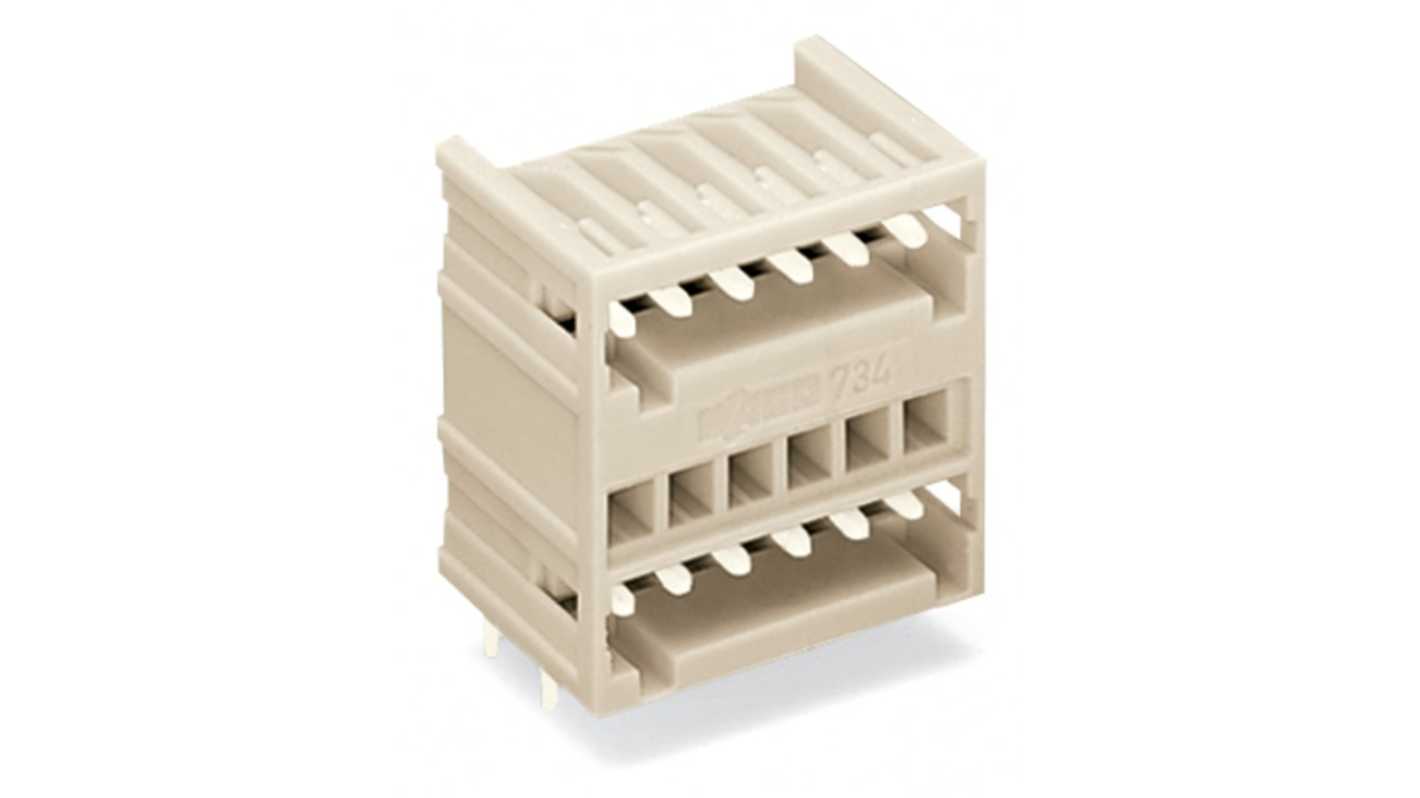

WAGO 734 Series Angled PCB Header, 12 Contact(s), 3.5 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-750
- Mfr. Part No.:
- 734-406
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£382.79
(exc. VAT)
£459.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £382.79 | £3.828 |
*price indicative
- RS Stock No.:
- 223-750
- Mfr. Part No.:
- 734-406
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 734 | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.6mm | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 734 | ||
Pitch 3.5mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.6mm | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Double Deck Male Header is designed to deliver optimal performance with its user friendly features and robust construction. Perfectly suited for a variety of applications, it offers reliable connections with excellent protection against mismating. With advanced features such as anti rotation and variable coding, this header meets the stringent requirements of modern electronic layouts, making it an ideal choice for both industrial and commercial settings.
Designed for both horizontal and vertical PCB mounting options
Robust insulation material ensures safety and durability
Lightweight yet strong construction contributes to the overall efficacy
Compliant with RoHS status aligning with modern environmental standards
Flexible temperature range supports diverse operational settings
