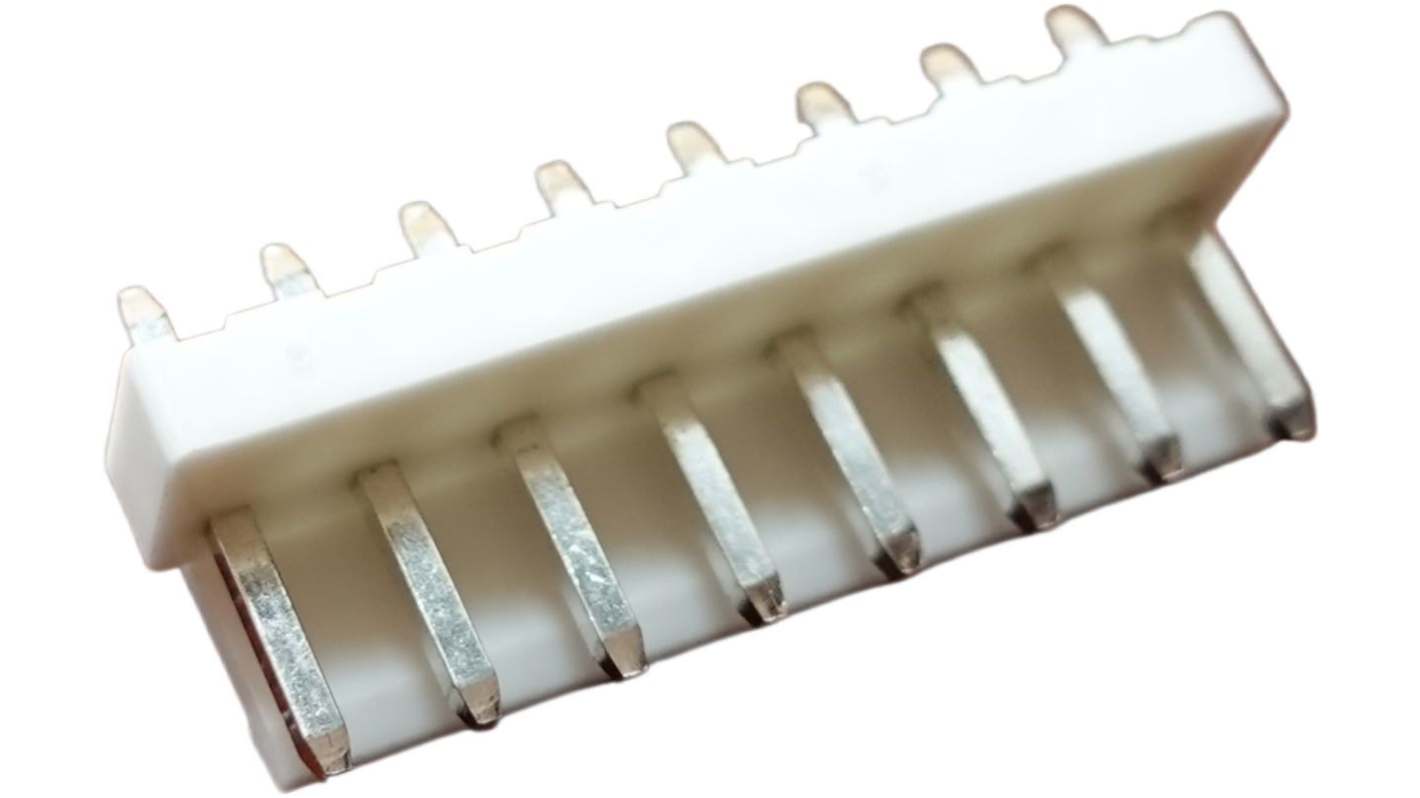

RS PRO Straight Through Hole PCB Header, 8 Contact(s), 3.96mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 147-123
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£1.74
(exc. VAT)
£2.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £1.74 | £0.348 |
5 - 9 | £1.60 | £0.32 |
10 + | £1.44 | £0.288 |
*price indicative
- RS Stock No.:
- 147-123
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pitch | 3.96mm | |
Number of Contacts | 8 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Connector System | Wire to Board | |
Mounting Type | Through Hole | |
Termination Method | Solder | |
Contact Plating | Tin Plated | |
Contact Material | Brass | |
Current Rating | 7A | |
Tail Pin Length | 3.6mm | |
Voltage Rating | 250V | |
Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pitch 3.96mm | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Current Rating 7A | ||
Tail Pin Length 3.6mm | ||
Voltage Rating 250V | ||
Gender Male | ||
- COO (Country of Origin):
- CN
RS PRO PCB Header, 3.96mm Pitch, 8 Way
These RS PRO PCB Headers are designed for wire-to-board connections, offering a reliable solution for signal, power supply, or output circuit applications. With a compact size and secure locking contact, they ensure efficient and stable connections.
Features and Benefits
3.96mm pitch: Provides precise spacing for reliable connections
Voltage Rating: 250V: Suitable for various electrical applications
Current Rating: 7.0A: Supports high current flow for demanding applications
Low insertion force: Eases installation and reduces wear
Reliable contact: Ensures consistent electrical performance
8 Way Top Entry: Offers flexibility in design and application
Voltage Rating: 250V: Suitable for various electrical applications
Current Rating: 7.0A: Supports high current flow for demanding applications
Low insertion force: Eases installation and reduces wear
Reliable contact: Ensures consistent electrical performance
8 Way Top Entry: Offers flexibility in design and application
Applications
Ideal for use in electronic devices, power supply circuits, and signal processing equipment. Suitable for industries such as telecommunications, consumer electronics, and industrial automation.
Additional Information
Contact Material: Brass, Tin Plated for enhanced conductivity and corrosion resistance
Shrouded design for added protection and alignment during mating
Through Hole Mount for secure and stable installation
Shrouded design for added protection and alignment during mating
Through Hole Mount for secure and stable installation
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
