- RS Stock No.:
- 250-0433
- Brand:
- RS PRO
Available to back order for despatch 21/05/2024
Added
Price Each
£1,049.30
(exc. VAT)
£1,259.16
(inc. VAT)
Units | Per unit |
1 + | £1,049.30 |
- RS Stock No.:
- 250-0433
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

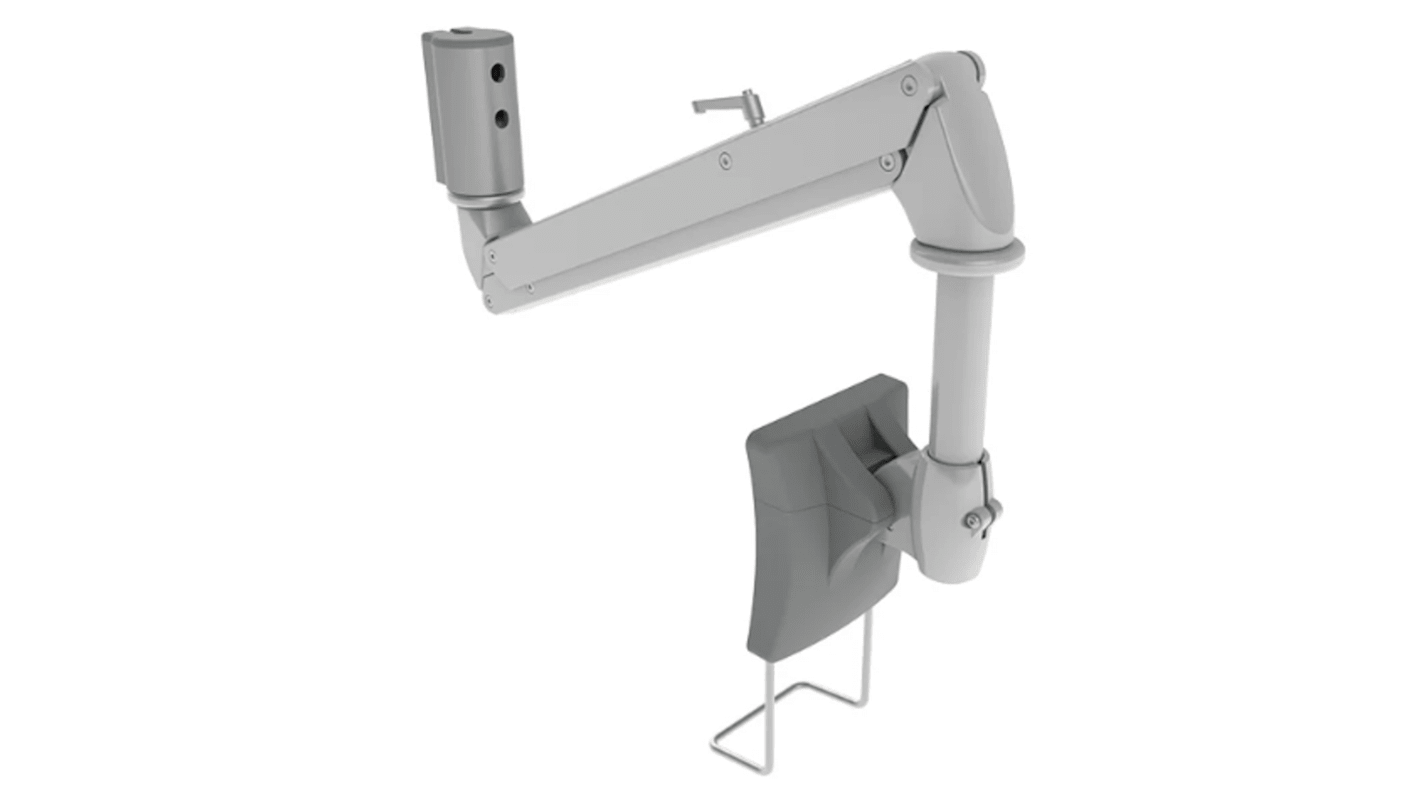

RS PRO Monitor Suspension Arm
Use this RS PRO monitor suspension arm in conjunction with a monitor to provide process information during manufacturing. This monitor arm is the ideal support system that focuses on the needs of the user by offering flexibility and adaptation. Our monitor arm design has been well thought-out and has superb features such as height adjustability, a 360° mounting flange and Integrated cable routing.
Why would you choose this Monitor Suspension Arm?
This monitor arm is made from high-quality materials such as steel, aluminium, and plastic offers adjustability so fluid you can manoeuvre the arm where you want it with a positive feel and lock it into place via the lever. The long suspension arm takes up minimal space when mounted to aluminium profiles and with its friction adjustment within the pivot joints, you can tilt and swivel your monitor for that perfect viewing angle. The monitor arm is supplied pre-assembled so its ready to go straight out the box.
Features and Benefits
- Suitable for mounting of heavy monitors up to 12 kg
- Mounting plate VESA MIS-D 75/100 compatible
- Monitor can be attached lateral or transversely to the profile
- 360° mounting flange
- Adjustable viewing angle and height
- Tilt and swivel
- Integrated cable routing
- Locking lever protects from accidental adjustment
- Supplied pre-assembled
Material
- Monitor suspension arm: Steel / aluminium / plastic
- Cable management cover: Plastic
- Mounting flange: Aluminium die-cast
- Screws: Steel
What do you get
- Monitor suspension arm incl. cable management cover
- Mounting flange incl. bolt and cover cap
- 2 screws DIN 912 - M8 x 30 (for T-slot nut)
- 2 Centering plates - slot 8
- 2 Centering plates - slot 10
- 2 anti-loss washers for screws M8
- 2 T-slot nuts - slot 8 - M8
- 2 T-slot nuts - slot 10 - M8
- Connecting ring
- Washer
- 4 screws DIN 799 - M4 x 16
Applications
- Workstations
- Industrial manufacturing
- Aluminium Structural System
Specifications
Attribute | Value |
---|---|
Type | Monitor Arm |
Extension Arm | Yes |
Maximum Screen Size | 30in |
VESA Configuration | 75 x 75, 100 x 100 |
