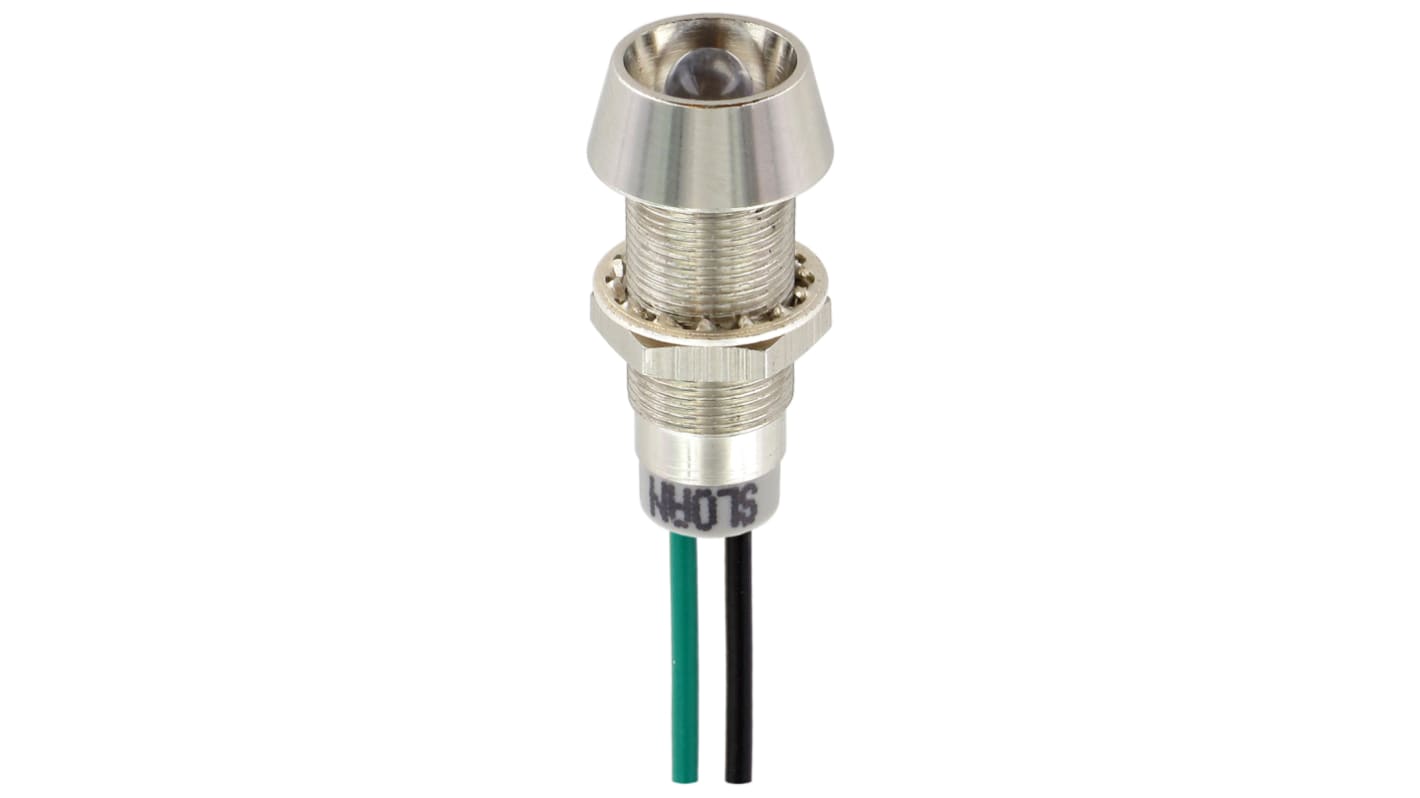

Sloan Green Panel LED, 5 → 28V, 8.2 x 7.6mm Mounting Hole Size, Lead Wires Termination, IP68

View all Panel Mount Indicators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
894-8900
Mfr. Part No.:
338821010G81NCL1
Brand:
Sloan
Find similar products by selecting one or more attributes.
Select all

Brand

Sloan

Voltage Rating

5 → 28V

Light Output Colour

Green

Mounting Hole Size

8.2 x 7.6mm

Lamp Type

LED

Termination Type

Lead Wires

IP Rating

IP68

Bezel Style

Recessed

Current Rating

20mA

Intensity

32500mcd

Length

24mm

COO (Country of Origin):
CH

Sloan 8.2mm Recessed IP68 LED Indicators, 334/338 Series


The 334 and 338 series LED indicators have been designed to suit a wide range of applications from 9 to 28 Vdc. Most LED drivers utilise a resistor in order to limit the supplied current but they are only able to do this for a single voltage. These units have a built-in current driver which is able to limit the supplied current to 20mA across the entire voltage range. The major benefit to this is the LED indicator will always have the same luminosity even if there is a variable voltage supply. This removes the need to store different versions in stock helping to drive down costs and maintenance time.

Recessed bezel
Rotation proof
IP68 rated
Standard wire (338 series) or fast-on 2.8x0.5mm tabs (334 series)
Nickel plated or blackened brass bezel.
Available in a selection of colours and intensities
M8x0.5 threaded body
