RS PRO Orange Indicator, 10.8 → 13.2V dc, 6mm Mounting Hole Size, IP67

View all Panel Mount Indicators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
843-2455
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Voltage Rating

10.8 → 13.2V dc

Light Output Colour

Orange

Mounting Hole Size

6mm

Lamp Type

LED

IP Rating

IP67

Bezel Style

Flush

Bezel Colour

Chrome

Current Rating

20mA

Intensity

10mcd

Length

28mm

COO (Country of Origin):
GB

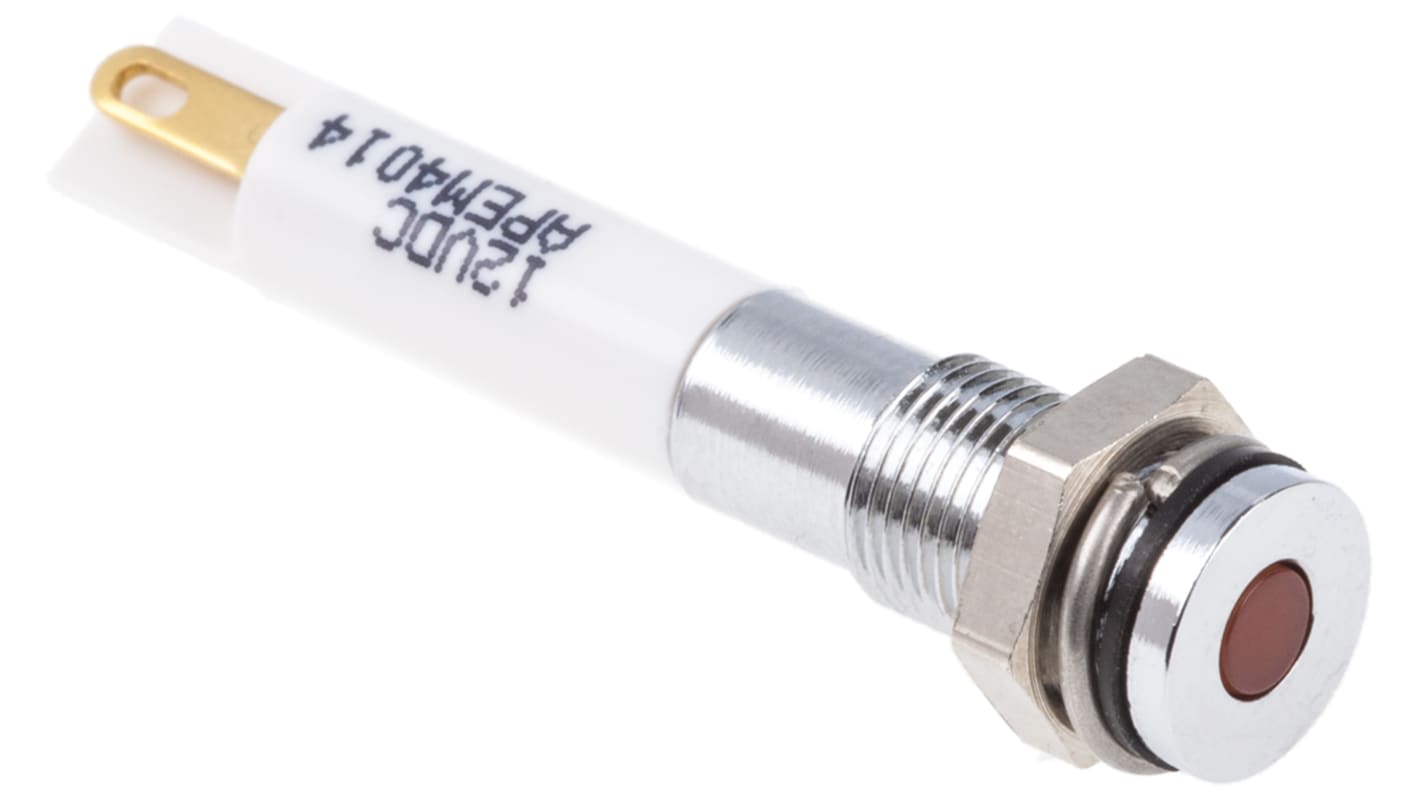

LED Indicators, 6mm Mount, 12 & 24Vdc, Flush Bezel


Brought to you under the trusted RS Pro, these LED indicators have diffused epoxy lenses and a flush chrome bezel. The body features convenient solder lug terminals and is sealed to an ingress protection of IP67, assuring suitability for use in harsh environments and even outdoor applications. LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.

• 3mm coloured diffused epoxy lens
• Maximum panel thickness 7mm
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Bi-colour LEDs, by connecting the gold Faston (+) one colour is produced, by reversing the supply voltage another colour is produced

Approvals

UL

Supplied with

fixing nut, spring washer
