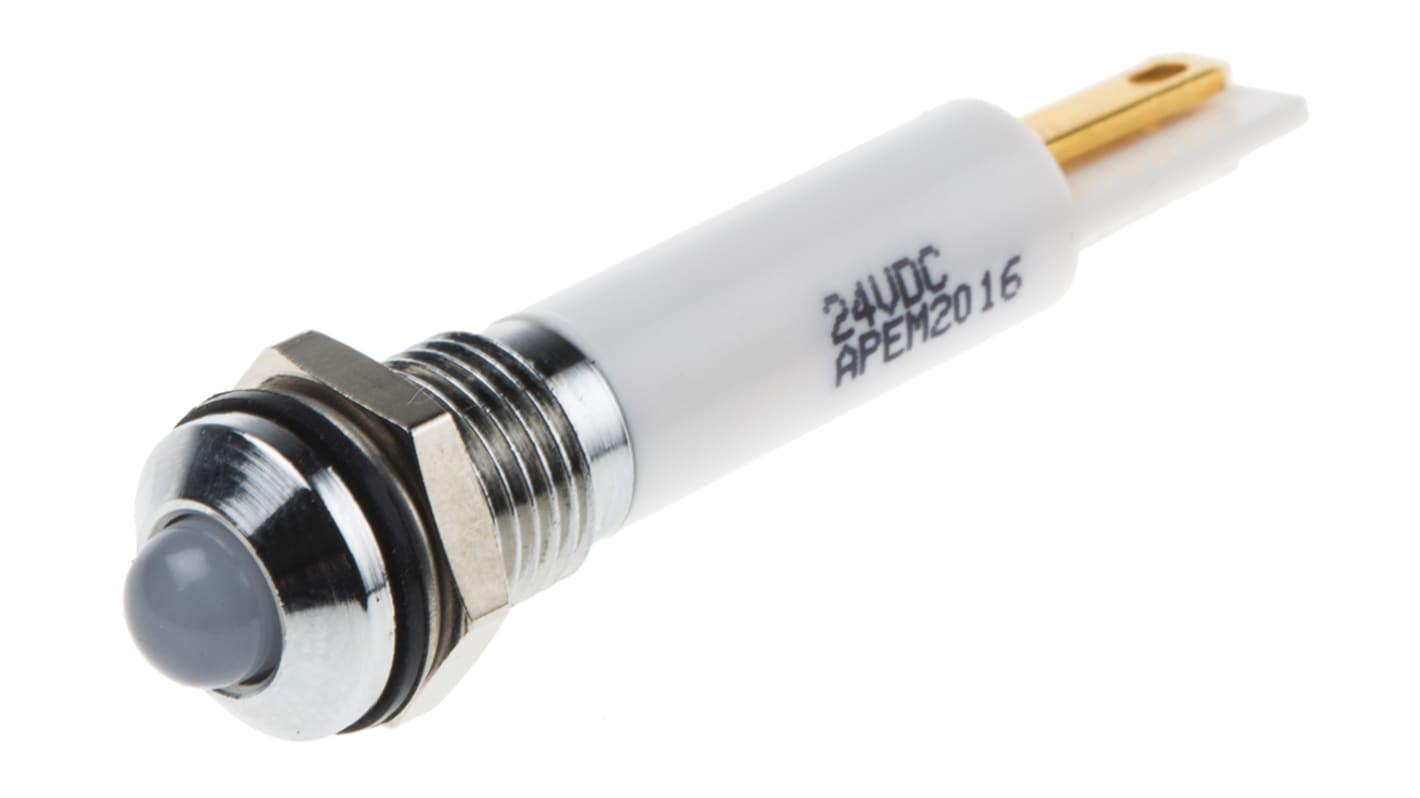

RS PRO White Panel Mount Indicator, 24V dc, 8mm Mounting Hole Size, Faston, Solder Lug Termination, IP67
- RS Stock No.:
- 838-5567
- Brand:
- RS PRO
41 In stock - FREE next working day delivery available
Added
Price Each
£15.64
(exc. VAT)
£18.77
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £15.64 |
| 10 - 24 | £14.06 |
| 25 - 49 | £12.84 |
| 50 - 99 | £10.93 |
| 100 + | £9.37 |
- RS Stock No.:
- 838-5567
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LED Indicators, 8mm Mount, Low Current, Reverse Protection, 12 & 24Vdc
RS 8mm panel mount LED indicators, 5mm coloured diffused epoxy lens, are fitted with a reverse protection diode and flush bright chrome bezel finish. Suitable for a wide variety of applications including medical, telecommunication, engineering, transport systems, special vehicles and agricultural vehicles.
IP67 sealed
Low current: 1mA (approx)
High luminosity
Flush bright chrome bezel
Low current: 1mA (approx)
High luminosity
Flush bright chrome bezel
Supplied with
fixing nut and spring washer
Specifications
Attribute | Value |
|---|---|
| Voltage Rating | 24V dc |
| Light Output Colour | White |
| Mounting Hole Size | 8mm |
| Lamp Type | LED |
| Termination Type | Faston, Solder Lug |
| IP Rating | IP67 |
| Bezel Style | Prominent |
| Bezel Colour | Chrome |
| Current Rating | 20mA |
| Intensity | 150mcd |
| Length | 28.8mm |
