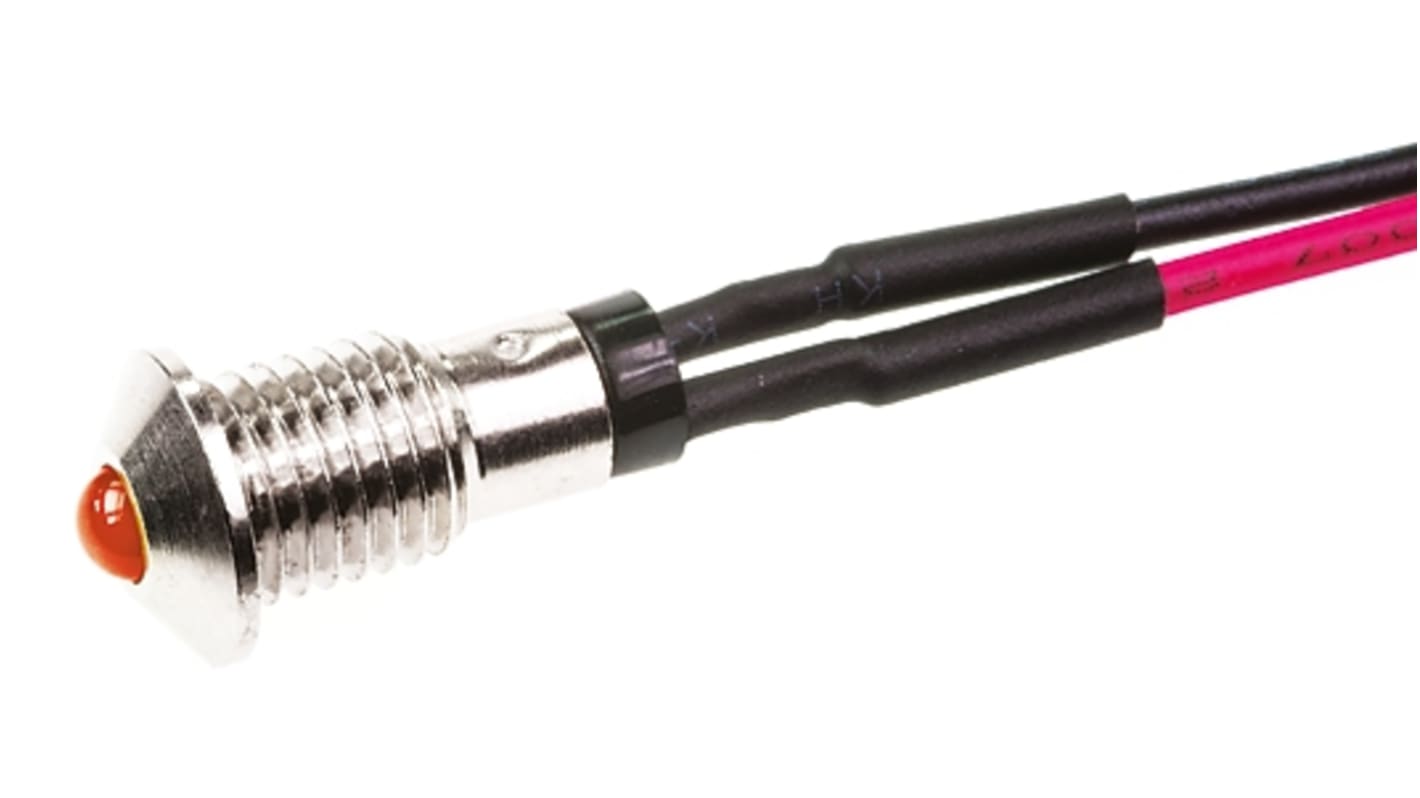

Marl Red Panel Mount Indicator, 2.8V, 6mm Mounting Hole Size, Lead Wires Termination
- RS Stock No.:
- 789-4470
- Mfr. Part No.:
- 570-305-04-40
- Brand:
- Marl
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.39
(exc. VAT)
£5.27
(inc. VAT)
- RS Stock No.:
- 789-4470
- Mfr. Part No.:
- 570-305-04-40
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marl | |
| Voltage Rating | 2.8V | |
| Light Output Colour | Red | |
| Mounting Hole Size | 6mm | |
| Lamp Type | LED | |
| Lamp Size | 3 mm | |
| Termination Type | Lead Wires | |
| Mounting Type | Panel Mount | |
| Bezel Style | Prominent | |
| Current Rating | 20mA | |
| Intensity | 2mcd | |
| Length | 15.1mm | |
| Select all | ||
|---|---|---|
Brand Marl | ||
Voltage Rating 2.8V | ||
Light Output Colour Red | ||
Mounting Hole Size 6mm | ||
Lamp Type LED | ||
Lamp Size 3 mm | ||
Termination Type Lead Wires | ||
Mounting Type Panel Mount | ||
Bezel Style Prominent | ||
Current Rating 20mA | ||
Intensity 2mcd | ||
Length 15.1mm | ||
- COO (Country of Origin):
- CN
Marl 6mm Nickel Plated Brass LED Panel Indicators - 570/572 Series
Marl indicators are available in a range of LED colours and offer a diffused colour 3mm LED. Marl indicators use standard intensity LED's recessed into a Nickel plated housing which requires a 6mm cut out. Ideal for panel indication applications.
Note
These LED indicators should not be operated without a suitable series resistor or other current-limiting device.
10mm - 15.8mm Mounting
All products have a reverse voltage of 5V.
