Marl 356 Series Indicator, Red Panel Mount Indicator, Flying Lead Termination 1.7V dc 20 mA, 5.9 x 4.8 mm
- RS Stock No.:
- 789-4391
- Mfr. Part No.:
- 356-305-04-40
- Brand:
- Marl

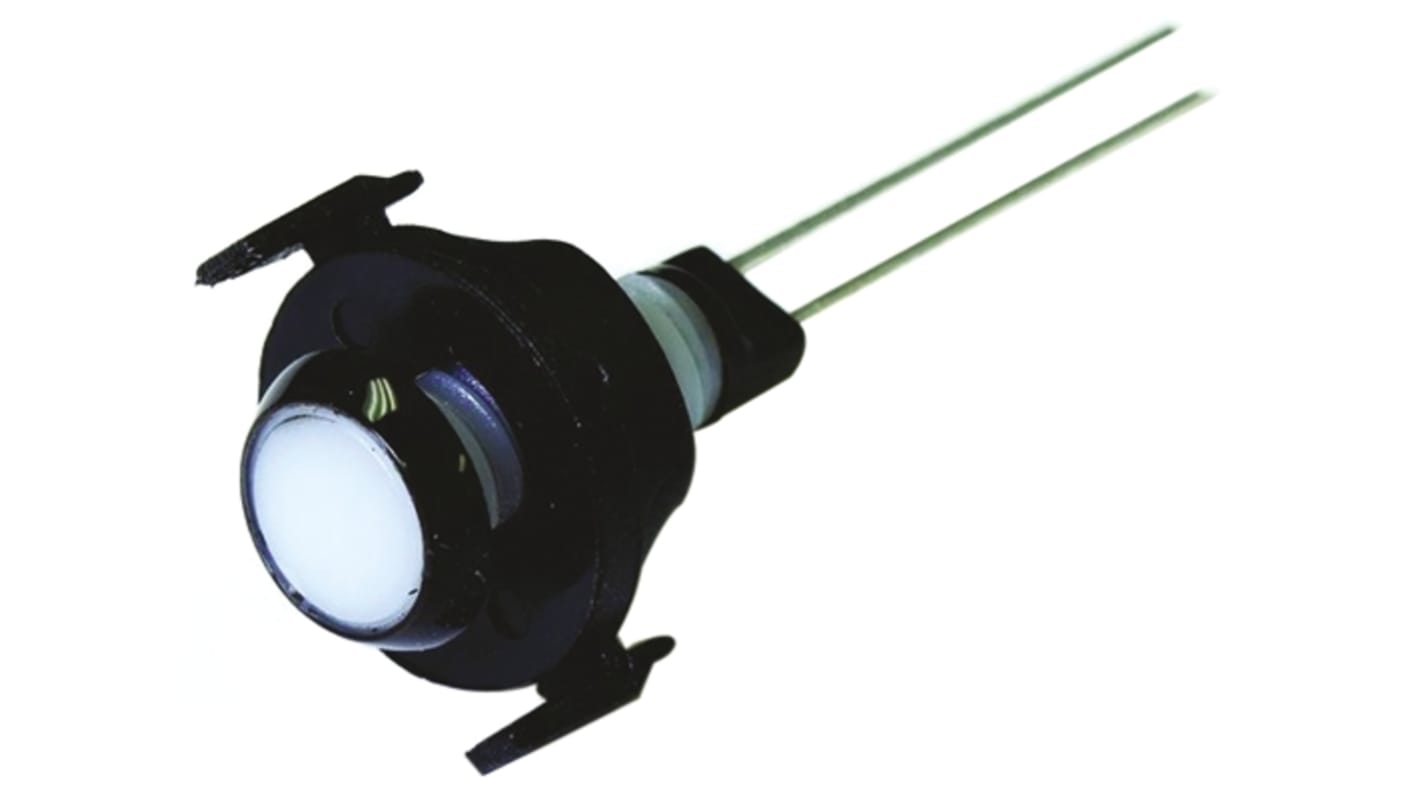

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 789-4391
- Mfr. Part No.:
- 356-305-04-40
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marl | |
| Lens Colour | White | |
| Product Type | Panel Mount Indicator | |
| Maximum Forward Current | 20mA | |
| Sub Type | Indicator | |
| Terminal Type | Flying Lead | |
| LED Colour | Red | |
| Viewing Angle | 120 ° | |
| Mount Hole Size | 5.9 x 4.8 mm | |
| Maximum Supply Voltage | 1.7V dc | |
| Multicolour/Single Colour | Single Colour | |
| Input Voltage Type | DC | |
| Luminous Intensity | 18mcd | |
| Length | 16.9mm | |
| Standards/Approvals | RoHS | |
| Series | 356 | |
| Lens Finish | Diffused | |
| Select all | ||
|---|---|---|
Brand Marl | ||
Lens Colour White | ||
Product Type Panel Mount Indicator | ||
Maximum Forward Current 20mA | ||
Sub Type Indicator | ||
Terminal Type Flying Lead | ||
LED Colour Red | ||
Viewing Angle 120 ° | ||
Mount Hole Size 5.9 x 4.8 mm | ||
Maximum Supply Voltage 1.7V dc | ||
Multicolour/Single Colour Single Colour | ||
Input Voltage Type DC | ||
Luminous Intensity 18mcd | ||
Length 16.9mm | ||
Standards/Approvals RoHS | ||
Series 356 | ||
Lens Finish Diffused | ||
- COO (Country of Origin):
- CN
Marl 6.35mm Quick-Mount LED Panel Indicators - 356 Series
Note
These LED indicators should not be operated without a suitable series resistor or other current-limiting device.
