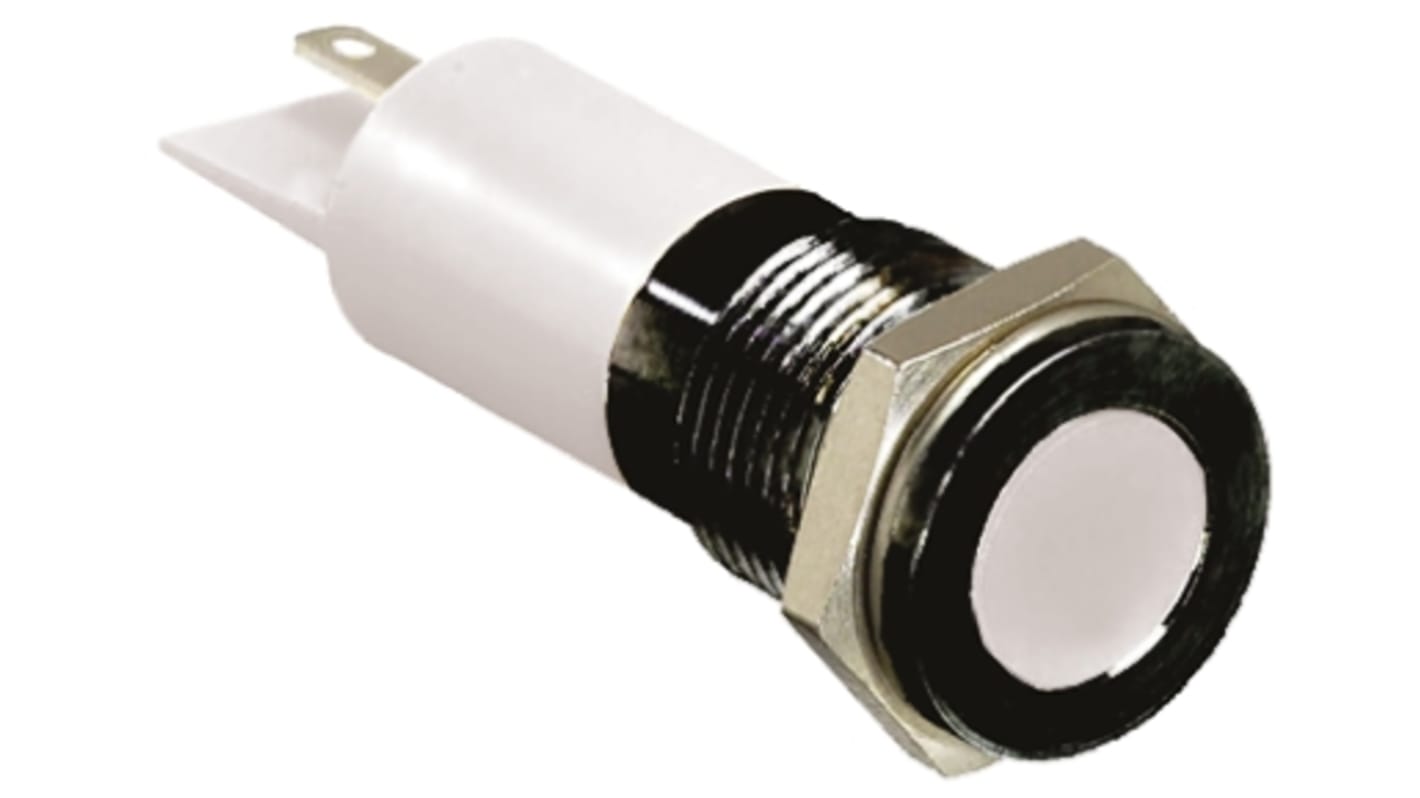

RS PRO White Panel Mount Indicator, 12V dc, 14mm Mounting Hole Size, Solder Tab Termination, IP67
- RS Stock No.:
- 703-8888
- Brand:
- RS PRO
18 In stock - FREE next working day delivery available
Added
Price Each
£10.17
(exc. VAT)
£12.20
(inc. VAT)
| Units | Per unit |
| 1 + | £10.17 |
- RS Stock No.:
- 703-8888
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LED Indicators, 14mm Mount, 12, 24, 6-36Vdc, Flush Bezel
10mm coloured diffused epoxy lens
Maximum panel thickness 11mm
Solder lug/faston terminals
Sealed to IP67
Maximum panel thickness 11mm
Solder lug/faston terminals
Sealed to IP67
Approvals
UL
Supplied with
fixing nut, spring washer
Specifications
Attribute | Value |
|---|---|
| Voltage Rating | 12V dc |
| Light Output Colour | White |
| Mounting Hole Size | 14mm |
| Lamp Type | LED |
| Termination Type | Solder Tab |
| IP Rating | IP67 |
| Bezel Style | Flush |
| Current Rating | 20mA |
| Intensity | 20mcd |
| Length | 35.6mm |
