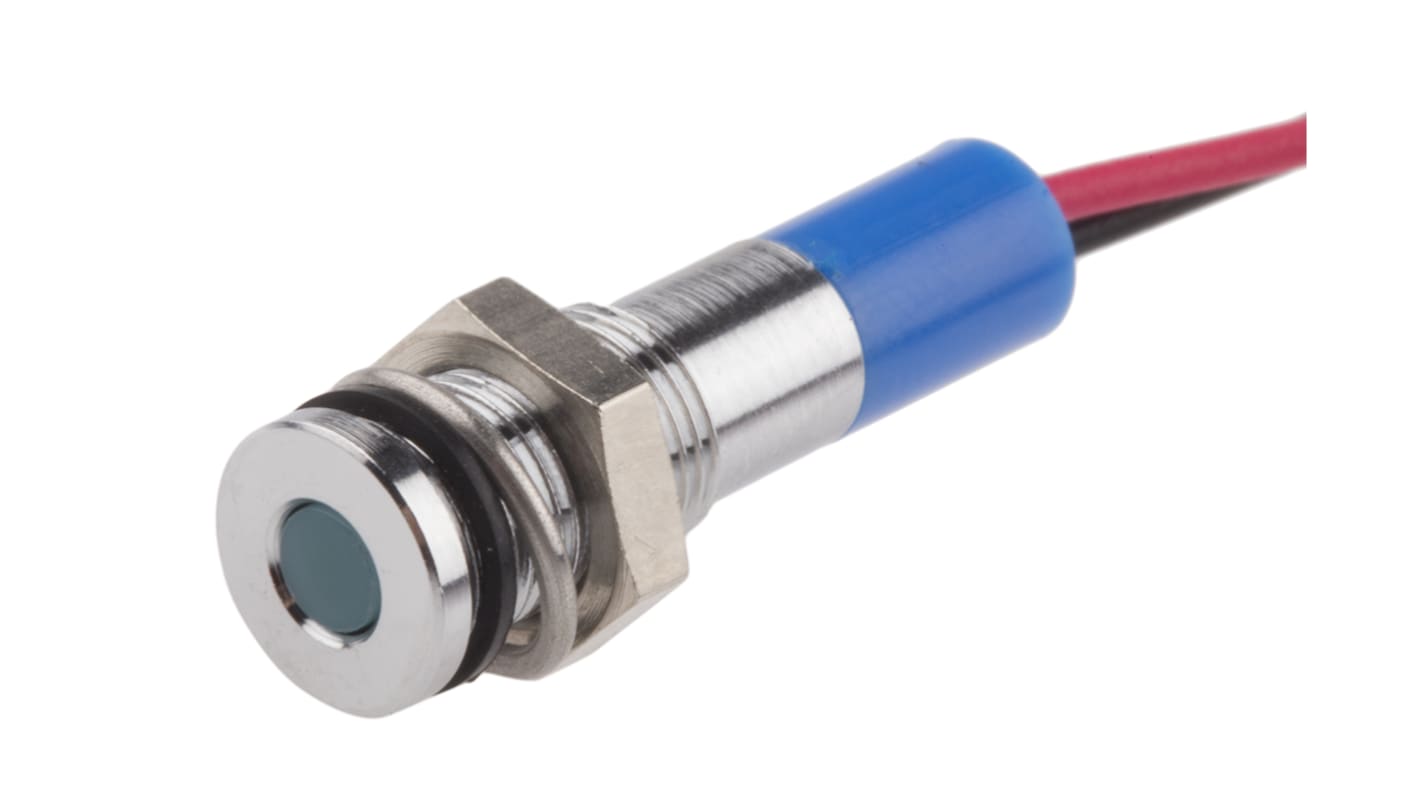

RS PRO Blue Panel Mount Indicator, 24V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67

RS Stock No.:: 700-1839
Brand:: RS PRO

RS PRO Blue Panel Mount Indicator, 24V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67

Available to back order for despatch 07/05/2024

Added

Price Each

£9.69

(exc. VAT)

£11.63

(inc. VAT)

Units	Per unit
1 - 24	£9.69
25 - 49	£8.72
50 - 99	£7.89
100 - 249	£6.99
250 +	£6.11

RS Stock No.:: 700-1839
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

LED Indicators, 6mm Mount, 12 & 24Vdc, Flush Bezel, Wires

Brought to you under the trusted RS Brand, these LED indicators have diffused epoxy lenses and a flush chrome bezel. The body features wire termination and is sealed to an ingress protection of IP67, assuring suitability for use in harsh environments and even outdoor applications. LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.

Feaures and Benefits:

• 3mm coloured diffused epoxy lens
• Maximum panel thickness 7mm
• 200mm Wire terminations
• Sealed to IP67
• 100000h life expectancy

Approvals

Supplied with

fixing nut, spring washer

Specifications

Attribute	Value
Voltage Rating	24V dc
Light Output Colour	Blue
Mounting Hole Size	6mm
Lamp Type	LED
Lamp Size	3 mm
Termination Type	Lead Wires
IP Rating	IP67
Bezel Style	Flush
Bezel Colour	Chrome
Current Rating	20mA
Intensity	8mcd
Length	21mm
