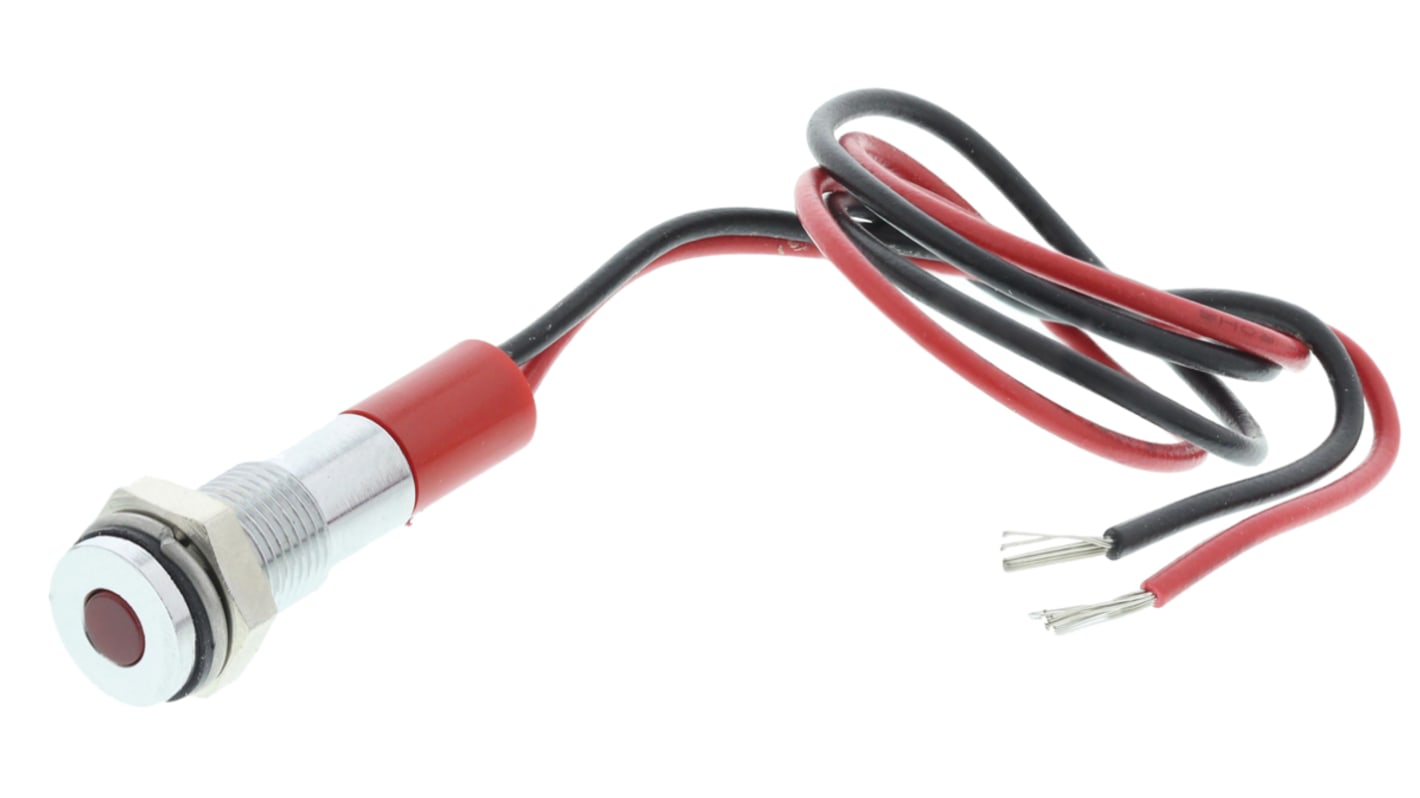

RS PRO Red Panel Mount Indicator, 24V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67
- RS Stock No.:
- 700-1823
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.96
(exc. VAT)
£8.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 424 unit(s) ready to ship
- Plus 73 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £6.96 |
| 25 - 49 | £6.51 |
| 50 - 99 | £6.22 |
| 100 - 249 | £5.97 |
| 250 + | £5.70 |
*price indicative
- RS Stock No.:
- 700-1823
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Voltage Rating | 24V dc | |
| Light Output Colour | Red | |
| Mounting Hole Size | 6mm | |
| Lamp Type | LED | |
| Lamp Size | 3 mm | |
| Termination Type | Lead Wires | |
| IP Rating | IP67 | |
| Bezel Style | Flush | |
| Bezel Colour | Chrome | |
| Current Rating | 20mA | |
| Intensity | 10mcd | |
| Length | 21mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Voltage Rating 24V dc | ||
Light Output Colour Red | ||
Mounting Hole Size 6mm | ||
Lamp Type LED | ||
Lamp Size 3 mm | ||
Termination Type Lead Wires | ||
IP Rating IP67 | ||
Bezel Style Flush | ||
Bezel Colour Chrome | ||
Current Rating 20mA | ||
Intensity 10mcd | ||
Length 21mm | ||
- COO (Country of Origin):
- GB
RS PRO Red Indicator, 24 V DC, 6 mm Mounting Hole Size, Lead Wires Termination, IP67
Need a reliable warning light for harsh industrial environments? The RS PRO red indicator has an IP67 rating, so it's suitable for indoor and outdoor applications where dust and moisture are present. It has an operating temperature of -40ºC to +85°C, making it a good solution in a variety of harsh industrial environments too.
The red indicator has an LED lamp to provide long-lasting light, so it's ideal for warning and signalling systems. Its diffused epoxy lens helps to disperse light and protect the LED. The indicator comes with colour-coded wire terminations, a fixing nut and a spring washer ready to mount on your panel. It also has a flush-style bezel for a neater fitting.
This type of indicator is found on vehicle dashboards and machine safety systems. It's suitable for installation in panels with a maximum thickness of 7 mm.
The red indicator has an LED lamp to provide long-lasting light, so it's ideal for warning and signalling systems. Its diffused epoxy lens helps to disperse light and protect the LED. The indicator comes with colour-coded wire terminations, a fixing nut and a spring washer ready to mount on your panel. It also has a flush-style bezel for a neater fitting.
This type of indicator is found on vehicle dashboards and machine safety systems. It's suitable for installation in panels with a maximum thickness of 7 mm.
Features and Benefits
• Voltage rating of 24 V DC
• Mounting hole size of 6 mm
• Lamp size of 3 mm
• Current rating of 20 mA
• Intensity of 10 mcd
• Length of 21 mm
• Chrome-coloured bezel
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• Mounting hole size of 6 mm
• Lamp size of 3 mm
• Current rating of 20 mA
• Intensity of 10 mcd
• Length of 21 mm
• Chrome-coloured bezel
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
