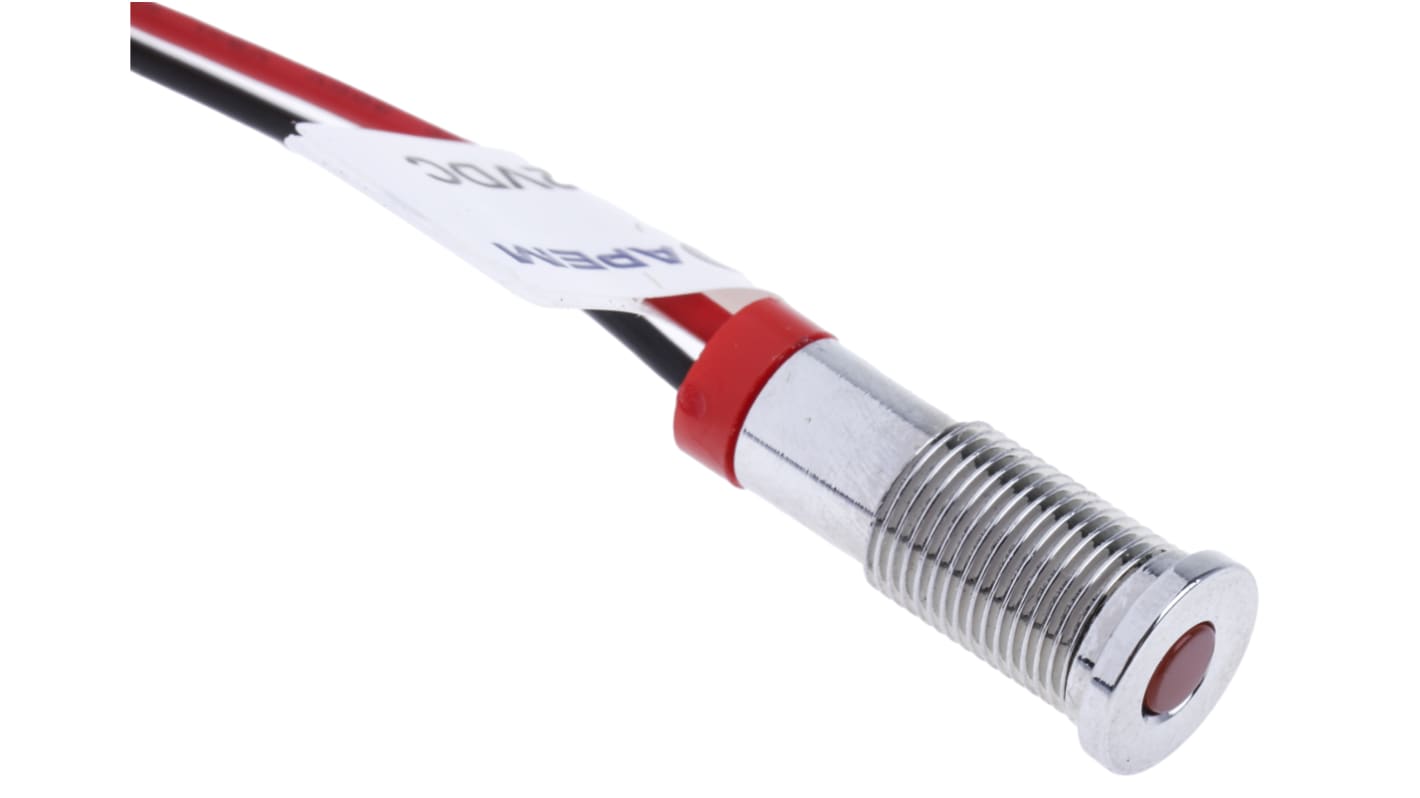

RS PRO Red Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67
- RS Stock No.:
- 700-1791
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£7.95
(exc. VAT)
£9.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 45 unit(s) ready to ship from another location
- Plus 148 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £7.95 |
| 25 - 49 | £7.10 |
| 50 - 99 | £6.30 |
| 100 - 249 | £5.46 |
| 250 + | £4.65 |
*price indicative
- RS Stock No.:
- 700-1791
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Voltage Rating | 2V dc | |
| Light Output Colour | Red | |
| Mounting Hole Size | 6mm | |
| Lamp Type | LED | |
| Lamp Size | 3 mm | |
| Termination Type | Lead Wires | |
| IP Rating | IP67 | |
| Bezel Style | Flush | |
| Bezel Colour | Chrome | |
| Current Rating | 20mA | |
| Intensity | 10mcd | |
| Length | 15.9mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Voltage Rating 2V dc | ||
Light Output Colour Red | ||
Mounting Hole Size 6mm | ||
Lamp Type LED | ||
Lamp Size 3 mm | ||
Termination Type Lead Wires | ||
IP Rating IP67 | ||
Bezel Style Flush | ||
Bezel Colour Chrome | ||
Current Rating 20mA | ||
Intensity 10mcd | ||
Length 15.9mm | ||
- COO (Country of Origin):
- GB
RS PRO Red Indicator, 2 V DC, 6 mm Mounting Hole Size, Lead Wires Termination, IP67
Need to indicate a fault in an electrical circuit and looking for an LED indicator to act as a signal? This RS PRO red indicator lamp is a practical option. Its flush bezel makes it perfect for panel mounting, as it's no more than 7 mm thick.
This component has an IP67 (Ingress Protection) rating, meaning that it's fully protected against solid objects like dust and sand and can be submerged in water for short periods of time. Its wide operating temperature range of -40°C to +85°C makes it highly versatile so that you can use it in a range of harsh environmental conditions.
This RS PRO red indicator has many uses ranging from vehicle indicators to printed circuit boards (PCBs), and it's also frequently found mounted on switches and push buttons. It comes with a fixing nut and spring asher that make it easy to mount.
This component has an IP67 (Ingress Protection) rating, meaning that it's fully protected against solid objects like dust and sand and can be submerged in water for short periods of time. Its wide operating temperature range of -40°C to +85°C makes it highly versatile so that you can use it in a range of harsh environmental conditions.
This RS PRO red indicator has many uses ranging from vehicle indicators to printed circuit boards (PCBs), and it's also frequently found mounted on switches and push buttons. It comes with a fixing nut and spring asher that make it easy to mount.
Features and Benefits
• Current rating of 20 mA
• Voltage rating of 2 V DC
• Intensity of 10 mcd
• Lens lamp size of 3 mm
• LED length of 15.9 mm
• Chrome coloured bezel
• Mounting hole size of 6 mm
• Lead wire termination type
• Fixed light illumination
• RoHS (Restriction of Hazardous Substances) compliant
• Voltage rating of 2 V DC
• Intensity of 10 mcd
• Lens lamp size of 3 mm
• LED length of 15.9 mm
• Chrome coloured bezel
• Mounting hole size of 6 mm
• Lead wire termination type
• Fixed light illumination
• RoHS (Restriction of Hazardous Substances) compliant
