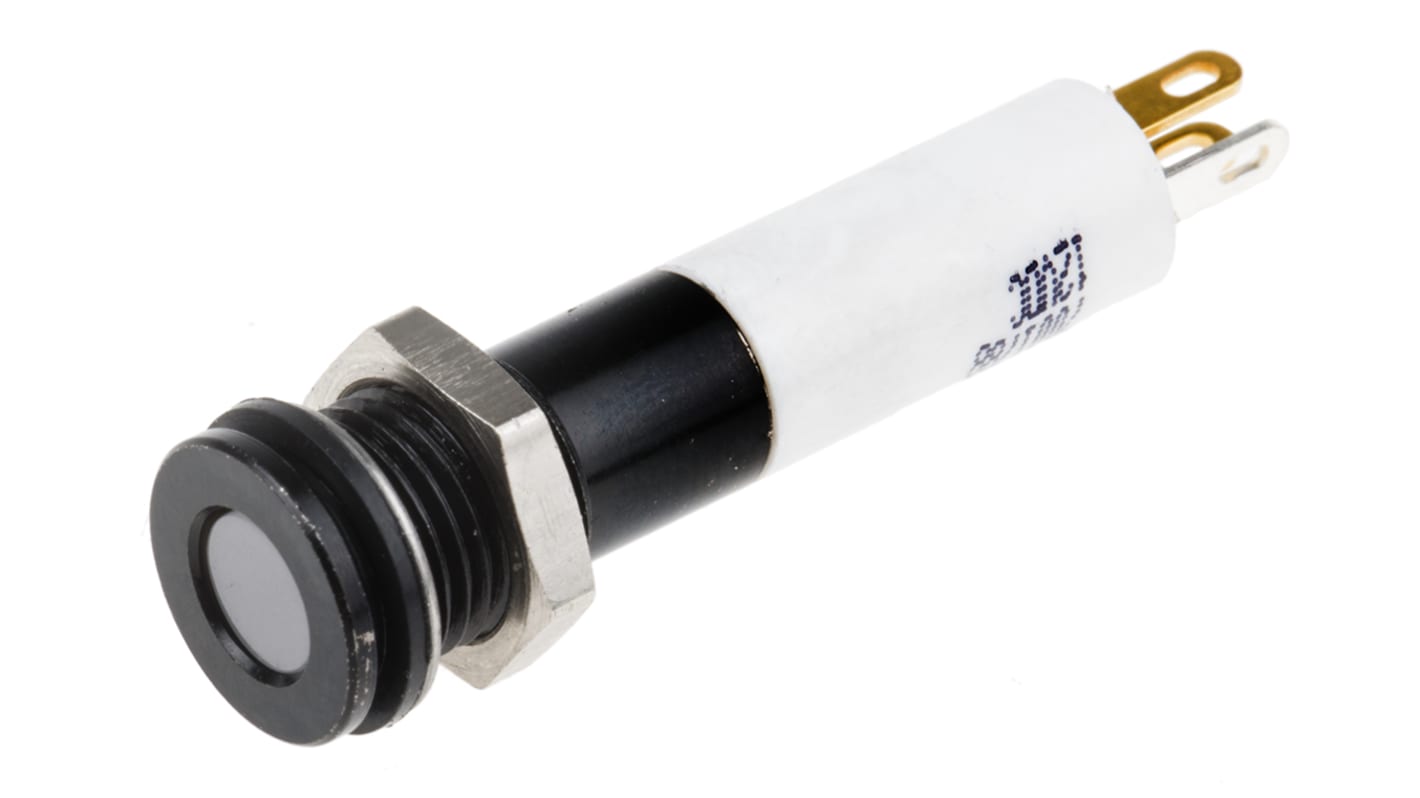

RS PRO Panel Mount Indicator, 12V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67

RS Stock No.:: 700-1788
Brand:: RS PRO

RS PRO Panel Mount Indicator, 12V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67

27 In stock - FREE next working day delivery available

Added

Price Each

£9.00

(exc. VAT)

£10.80

(inc. VAT)

Units	Per unit
1 - 24	£9.00
25 - 49	£8.00
50 - 99	£7.12
100 - 249	£6.25
250 +	£6.01

RS Stock No.:: 700-1788
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

LED Indicators, 8mm Mount, 12/24Vdc & 220Vac, Flush Black Chrome Bezel

Brought to you under the trusted RS Pro, these LED indicators have diffused epoxy lenses and a flush black chrome bezel. The body features solder lug terminals and is sealed to an ingress protection of IP67, assuring suitability for use in harsh environments and even outdoor applications. LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.

Features and Benefits:

• 5mm coloured diffused epoxy lens
• Maximum panel thickness 7mm
• Solder lug/faston terminals
• Sealed to IP67
• Life expectancy of 100000

Approvals

Supplied with

fixing nut, spring washer

Specifications

Attribute	Value
Voltage Rating	12V dc
Mounting Hole Size	8mm
Lamp Type	LED
Termination Type	Solder Tab
IP Rating	IP67
Bezel Style	Flush
Current Rating	20mA
Length	33.9mm
