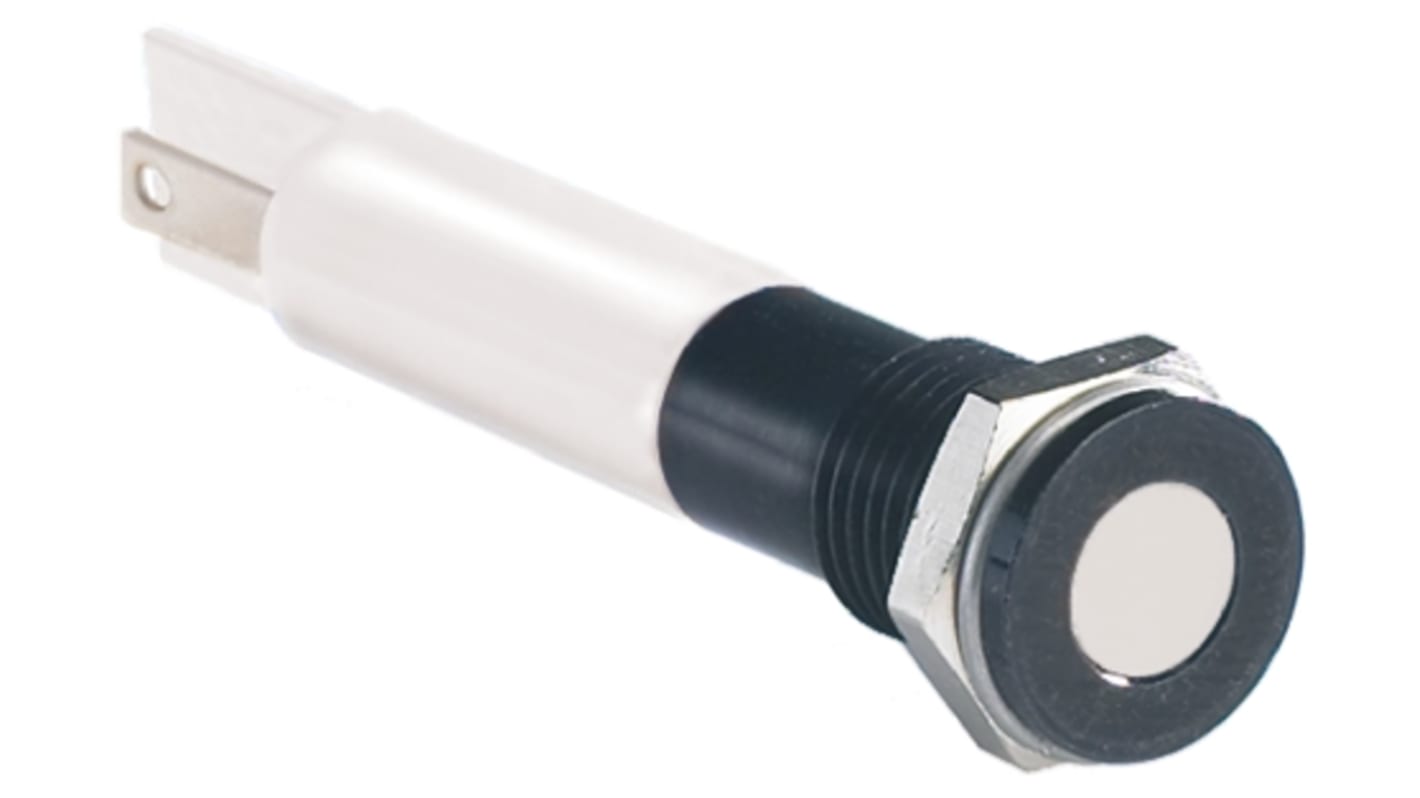

RS PRO White Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, IP67
- RS Stock No.:
- 700-1603
- Brand:
- RS PRO
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£5.88
(exc. VAT)
£7.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 179 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £5.88 |
| 25 - 49 | £5.24 |
| 50 - 99 | £4.62 |
| 100 - 249 | £4.01 |
| 250 + | £3.41 |
*price indicative
- RS Stock No.:
- 700-1603
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Voltage Rating | 2V dc | |
| Light Output Colour | White | |
| Mounting Hole Size | 6mm | |
| Lamp Type | LED | |
| Lamp Size | 3 mm | |
| IP Rating | IP67 | |
| Bezel Style | Flush | |
| Current Rating | 20mA | |
| Intensity | 15mcd | |
| Length | 15.9mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Voltage Rating 2V dc | ||
Light Output Colour White | ||
Mounting Hole Size 6mm | ||
Lamp Type LED | ||
Lamp Size 3 mm | ||
IP Rating IP67 | ||
Bezel Style Flush | ||
Current Rating 20mA | ||
Intensity 15mcd | ||
Length 15.9mm | ||
- COO (Country of Origin):
- GB
RS PRO White Indicator, 2 V DC, 6 mm Mounting Hole Size, Lead Pins Termination, IP67
This white LED indicator from RS PRO is an ideal choice for signalling and guidance applications in industrial processes and equipment. It uses a diffused epoxy lens to ensure the light is visible from wide viewing angles. The unit comes with a short body lead pin terminal that makes it easy to mount onto pin strips for electronics devices.
Its IP67 rating means the indicator is well-protected from water and dust, so you can use it in outdoor applications as well as in harsh industrial environments. This unit features a flush-type bezel that fits neatly on flat panels and its black chrome finish ensures a good contrast with the white light for extra visibility.
This product conforms to RoHS (Restriction of Hazardous Substances) directives so it contains only minimal levels of hazardous substances. This white indicator is suitable for use in electrical equipment, transportation systems and process control units.
Its IP67 rating means the indicator is well-protected from water and dust, so you can use it in outdoor applications as well as in harsh industrial environments. This unit features a flush-type bezel that fits neatly on flat panels and its black chrome finish ensures a good contrast with the white light for extra visibility.
This product conforms to RoHS (Restriction of Hazardous Substances) directives so it contains only minimal levels of hazardous substances. This white indicator is suitable for use in electrical equipment, transportation systems and process control units.
Features and Benefits
• Current rating of 20 mA
• Intensity of 15 mcd
• Lamp size of 3 mm
• Length of 15.9 mm
• Mounting hole size of 6 mm
• Voltage rating of 2 V DC
• Life expectancy of 100,000 hours
• Intensity of 15 mcd
• Lamp size of 3 mm
• Length of 15.9 mm
• Mounting hole size of 6 mm
• Voltage rating of 2 V DC
• Life expectancy of 100,000 hours
