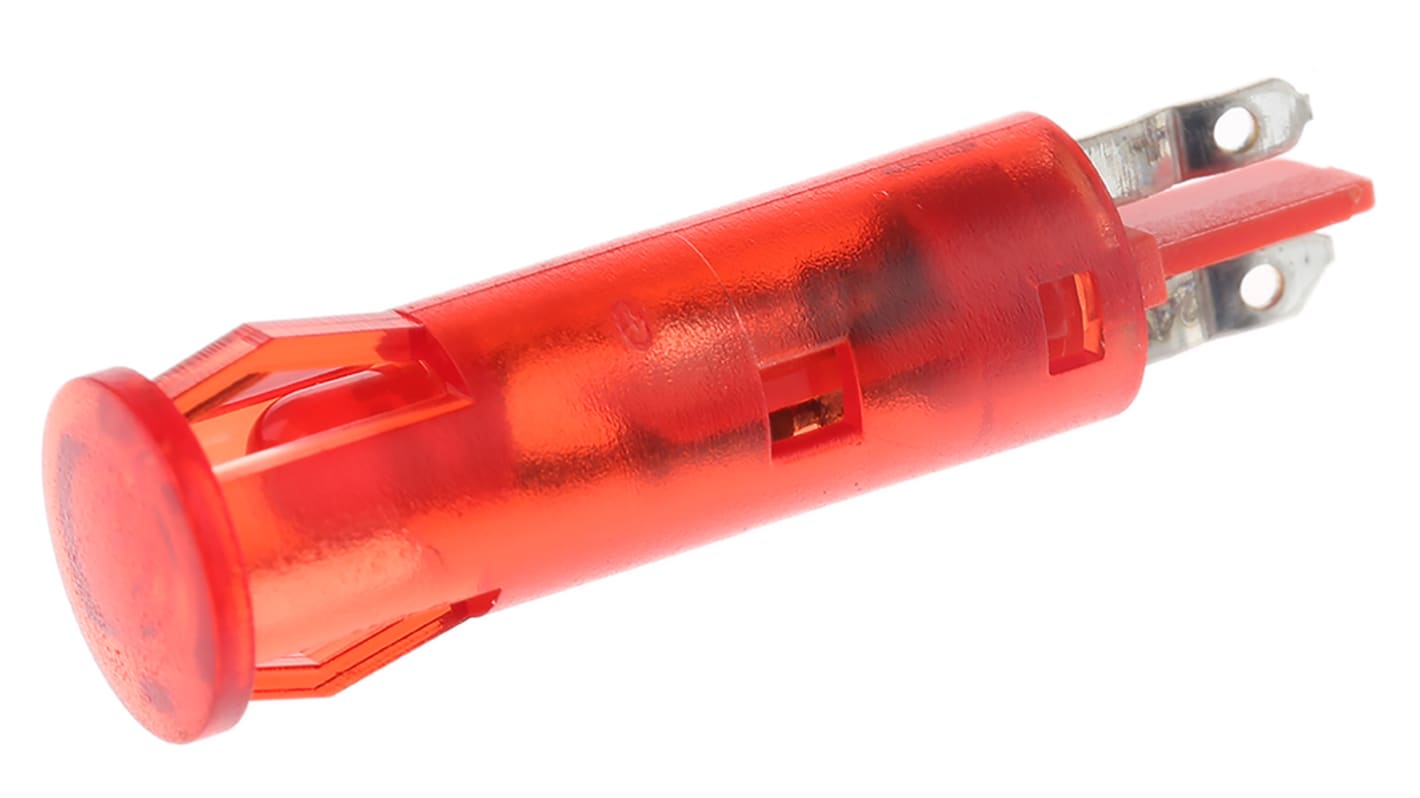

Signal Construct Red Panel Mount Indicator, 24 → 28V, 6mm Mounting Hole Size, Solder Tab Termination
- RS Stock No.:
- 369-3324
- Mfr. Part No.:
- SKGD06004
- Brand:
- Signal Construct
192 In stock - FREE next working day delivery available
40 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.17
(exc. VAT)
£5.00
(inc. VAT)
Units | Per unit |
1 - 24 | £4.17 |
25 - 49 | £3.74 |
50 - 99 | £3.36 |
100 - 249 | £2.95 |
250 + | £2.69 |
- RS Stock No.:
- 369-3324
- Mfr. Part No.:
- SKGD06004
- Brand:
- Signal Construct
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LED Indicators, 6mm Mounting, 12 & 24Vdc
Snap-in fixing, requires no additional hardware
7mm coloured diffused low profile super-flat polycarbonate fresnel lens
Tri-colour contains a red and a green LED, when both are on yellow is produced
Solder lug connections
Tri-colour types have pins for connections (longest pin cathode)
7mm coloured diffused low profile super-flat polycarbonate fresnel lens
Tri-colour contains a red and a green LED, when both are on yellow is produced
Solder lug connections
Tri-colour types have pins for connections (longest pin cathode)
Specifications
Attribute | Value |
---|---|
Voltage Rating | 24 → 28V |
Light Output Colour | Red |
Mounting Hole Size | 6mm |
Lamp Type | LED |
Lamp Size | 3 mm |
Termination Type | Solder Tab |
Mounting Type | Panel Mount |
Bezel Style | Flush |
Current Rating | 10mA |
Intensity | 10mcd |
Length | 26.3mm |
