APEM Q8 Series LED, Green Panel Mount Indicator 220V ac, IP67, 8 mm
- RS Stock No.:
- 287-3769
- Distrelec Article No.:
- 133-07-188
- Mfr. Part No.:
- Q8R1CXXG220E
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£6.26
(exc. VAT)
£7.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 141 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.26 |
| 10 - 24 | £6.02 |
| 25 - 49 | £5.78 |
| 50 - 99 | £5.56 |
| 100 + | £5.37 |
*price indicative
- RS Stock No.:
- 287-3769
- Distrelec Article No.:
- 133-07-188
- Mfr. Part No.:
- Q8R1CXXG220E
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Panel Mount Indicator | |
| Number of LEDs | 1 | |
| Maximum Forward Current | 20mA | |
| Sub Type | LED | |
| LED Colour | Green | |
| IP Rating | IP67 | |
| Mount Hole Size | 8 mm | |
| Viewing Angle | 100 ° | |
| Minimum Supply Voltage | 207V ac | |
| Maximum Supply Voltage | 220V ac | |
| Multicolour/Single Colour | Multicolour | |
| Input Voltage Type | AC | |
| Luminous Intensity | 60mcd | |
| Standards/Approvals | REACH & RoHS, LVD (BS EN 60838 :2017+A11 :2021), UL Recognition, Parc tested | |
| Length | 28.75mm | |
| Series | Q8 | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Panel Mount Indicator | ||
Number of LEDs 1 | ||
Maximum Forward Current 20mA | ||
Sub Type LED | ||
LED Colour Green | ||
IP Rating IP67 | ||
Mount Hole Size 8 mm | ||
Viewing Angle 100 ° | ||
Minimum Supply Voltage 207V ac | ||
Maximum Supply Voltage 220V ac | ||
Multicolour/Single Colour Multicolour | ||
Input Voltage Type AC | ||
Luminous Intensity 60mcd | ||
Standards/Approvals REACH & RoHS, LVD (BS EN 60838 :2017+A11 :2021), UL Recognition, Parc tested | ||
Length 28.75mm | ||
Series Q8 | ||
- COO (Country of Origin):
- GB

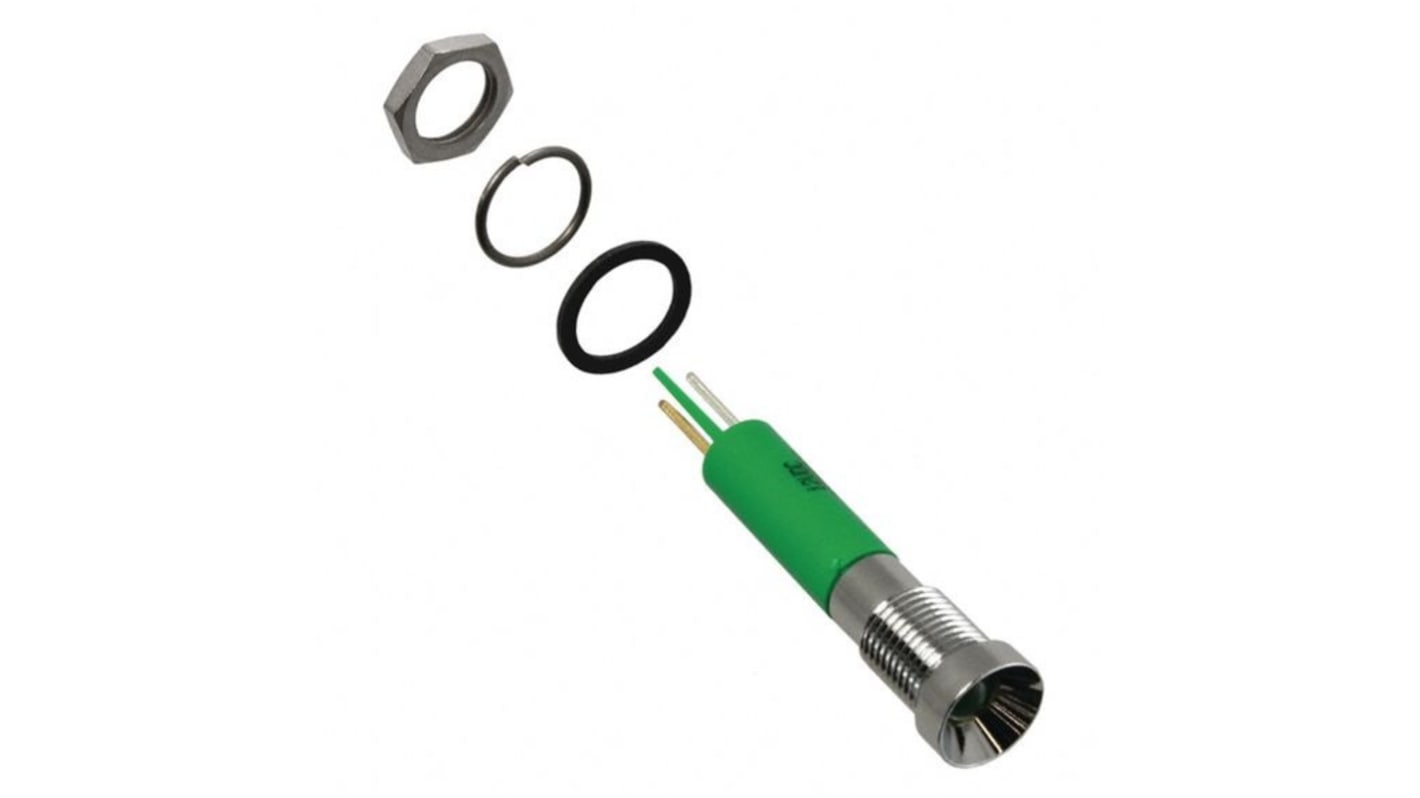

The APEM professional grade panel mount LED indicator features a 5mm green diffused epoxy lens with a voltage of 220 VAC. With a recessed bezel style and IP67 sealing, this LED indicator is designed for durability and reliability in various applications.
Prominent, recessed bezel style with bright chrome finish
5mm green diffused epoxy lens for fixed light illumination
Voltage rating of 220 VAC for consistent performance
IP67 sealing for protection against harsh environments
Solder lug/fastons (2.8 x 0.8) terminals for easy installation
Long life expectancy of 100,000 hours for extended use
Wide temperature range of -40 to +85 °C for versatility
