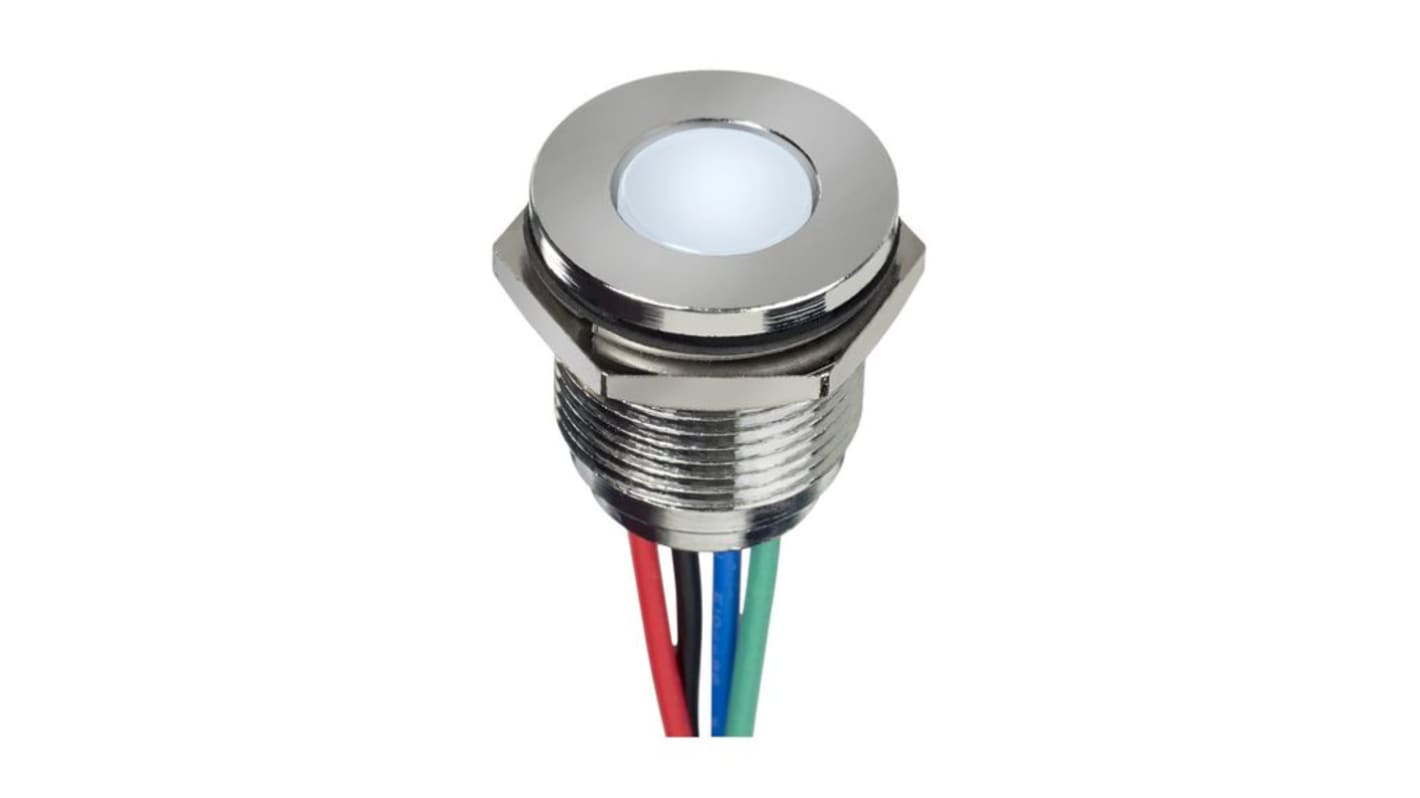

APEM Q22 Series Panel Mount LED Indicator, Blue, Red, Green Panel Mount Indicator, Wire Termination 28V dc, IP67, 22 mm
- RS Stock No.:
- 287-3746
- Distrelec Article No.:
- 301-54-687
- Mfr. Part No.:
- Q22F5CZZRGB28E-CA
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
£34.66
(exc. VAT)
£41.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 55 unit(s) shipping from 16 March 2026
- Plus 75 unit(s) shipping from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £34.66 |
| 2 - 4 | £33.28 |
| 5 - 9 | £32.00 |
| 10 - 24 | £30.81 |
| 25 + | £29.71 |
*price indicative
- RS Stock No.:
- 287-3746
- Distrelec Article No.:
- 301-54-687
- Mfr. Part No.:
- Q22F5CZZRGB28E-CA
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Lens Colour | Diffused | |
| Product Type | Panel Mount Indicator | |
| Number of LEDs | 3 | |
| Maximum Forward Current | 40mA | |
| Sub Type | Panel Mount LED Indicator | |
| Terminal Type | Wire | |
| LED Colour | Blue, Red, Green | |
| IP Rating | IP67 | |
| Minimum Supply Voltage | 3.3V | |
| Mount Hole Size | 22 mm | |
| Viewing Angle | 30 to 100 ° | |
| Maximum Supply Voltage | 28V dc | |
| Multicolour/Single Colour | Multicolour | |
| Input Voltage Type | AC/DC | |
| Length | 50.15mm | |
| Standards/Approvals | RoHS, EN60529 | |
| Series | Q22 | |
| Lens Finish | Water Clear, Diffused | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Lens Colour Diffused | ||
Product Type Panel Mount Indicator | ||
Number of LEDs 3 | ||
Maximum Forward Current 40mA | ||
Sub Type Panel Mount LED Indicator | ||
Terminal Type Wire | ||
LED Colour Blue, Red, Green | ||
IP Rating IP67 | ||
Minimum Supply Voltage 3.3V | ||
Mount Hole Size 22 mm | ||
Viewing Angle 30 to 100 ° | ||
Maximum Supply Voltage 28V dc | ||
Multicolour/Single Colour Multicolour | ||
Input Voltage Type AC/DC | ||
Length 50.15mm | ||
Standards/Approvals RoHS, EN60529 | ||
Series Q22 | ||
Lens Finish Water Clear, Diffused | ||
- COO (Country of Origin):
- GB
The APEM Ø22 mm panel mount LED indicator is a versatile and durable product designed for various applications. With distinctive features such as a colored diffused epoxy lens, custom engraving, and RGB options, this LED indicator offers high performance and reliability for your needs.
IP67 sealing option for added protection
Available in RGB for versatile applications
Long life expectancy of 100,000 hours for durability
Wide operating temperature range for flexibility
Distinctive design with secret until lit polycarbonate decals
