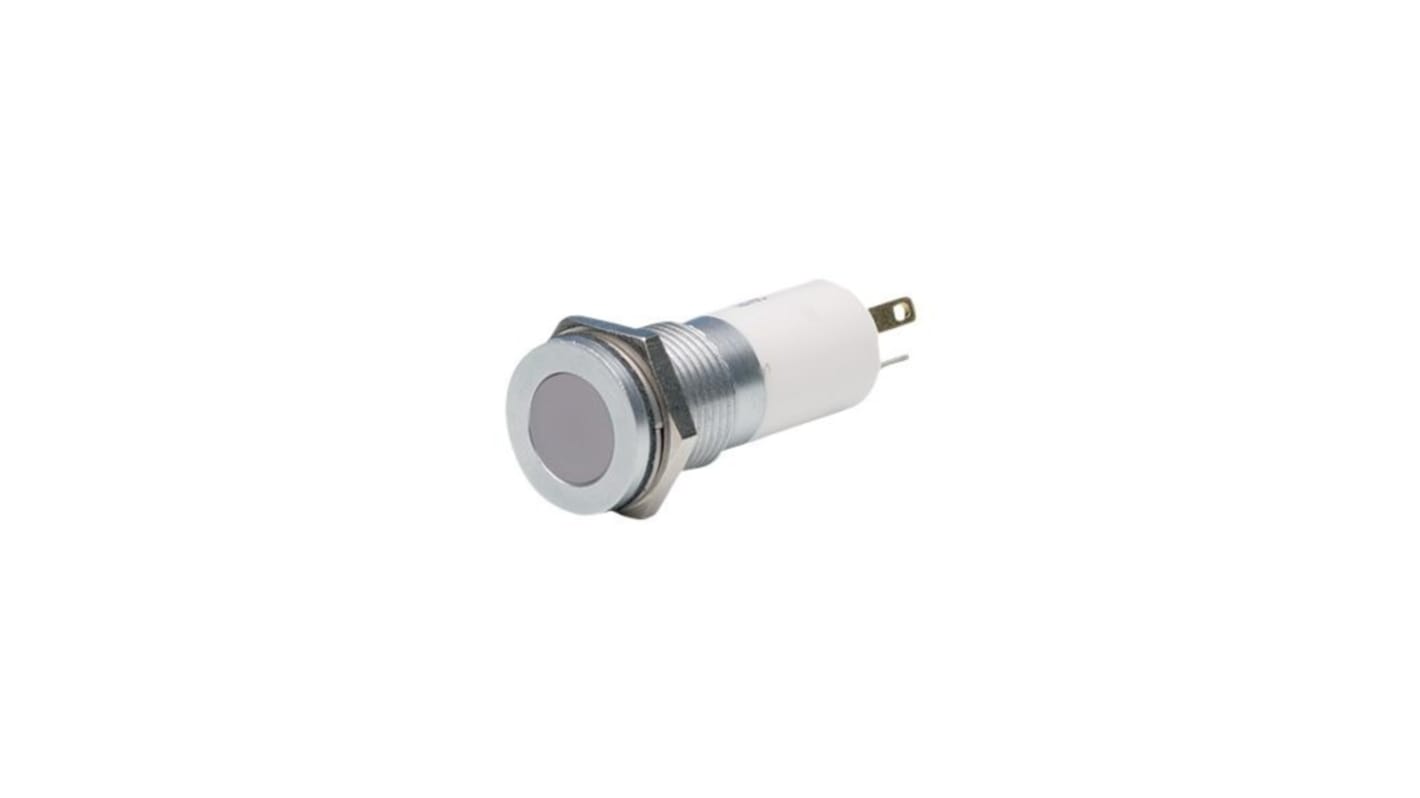

APEM Panel Mount LED Indicator, Green, Yellow, Red Panel Mount Indicator Q16 Series, 16 mm, IP67 12V dc
- RS Stock No.:
- 287-3731
- Mfr. Part No.:
- Q16F1GZZRYG12E
- Brand:
- APEM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.32
(exc. VAT)
£8.78
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 15 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.32 |
| 10 - 24 | £7.02 |
| 25 - 49 | £6.75 |
| 50 - 99 | £6.50 |
| 100 + | £6.27 |
*price indicative
- RS Stock No.:
- 287-3731
- Mfr. Part No.:
- Q16F1GZZRYG12E
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Panel Mount Indicator | |
| Lens Colour | Diffused | |
| Number of LEDs | 3 | |
| Maximum Forward Current | 20mA | |
| Sub Type | Panel Mount LED Indicator | |
| LED Colour | Green, Yellow, Red | |
| IP Rating | IP67 | |
| Viewing Angle | 30 to 100 ° | |
| Mount Hole Size | 16 mm | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 12V dc | |
| Input Voltage Type | AC/DC | |
| Multicolour/Single Colour | Multicolour | |
| Length | 47.85mm | |
| Standards/Approvals | RoHS, EN60529 | |
| Series | Q16 | |
| Lens Finish | Diffused, Water Clear | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Panel Mount Indicator | ||
Lens Colour Diffused | ||
Number of LEDs 3 | ||
Maximum Forward Current 20mA | ||
Sub Type Panel Mount LED Indicator | ||
LED Colour Green, Yellow, Red | ||
IP Rating IP67 | ||
Viewing Angle 30 to 100 ° | ||
Mount Hole Size 16 mm | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 12V dc | ||
Input Voltage Type AC/DC | ||
Multicolour/Single Colour Multicolour | ||
Length 47.85mm | ||
Standards/Approvals RoHS, EN60529 | ||
Series Q16 | ||
Lens Finish Diffused, Water Clear | ||
- COO (Country of Origin):
- GB
The APEM panel mount LED indicator is a high-quality product designed for professional-grade applications. With a 10 mm colored diffused epoxy lens and fixed light, flashing, and RGB options, this LED indicator is reliable and versatile for various industrial control needs.
10 mm colored diffused epoxy lens or 10 mm water clear super bright LEDs
Solder Lug/ Fastons (2.8 x 0.8) terminals for easy installation
IP67 sealing for protection against harsh environments
Red/Yellow/ Green LED color options for clear indication
Flush bezel style with satin grey finish for a sleek look
Tri-color illumination for versatile usage
