- RS Stock No.:
- 113-4306
- Brand:
- RS PRO
64 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.50
(exc. VAT)
£5.40
(inc. VAT)
Units | Per unit |
1 - 24 | £4.50 |
25 - 99 | £4.29 |
100 - 249 | £4.08 |
250 - 499 | £3.89 |
500 + | £3.73 |
- RS Stock No.:
- 113-4306
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

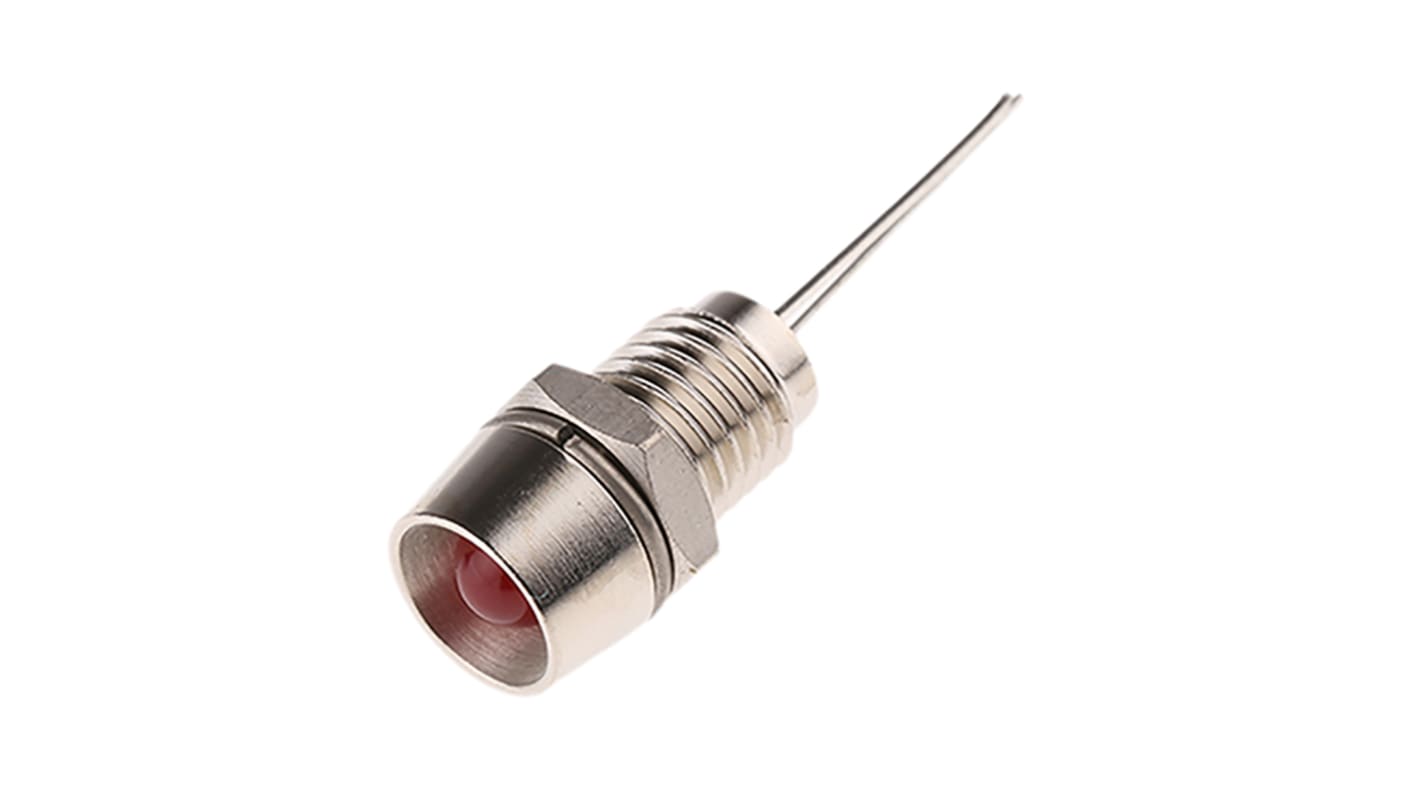

LEDs with metal support, 34 type, board hole 8 mm
Brought to you under the trusted RS Brand, this LED indicator features a recessed lens behind a prominent bezel that not only protects the lens but offers a sixty degree angle of diffusion. Equipped with lead pins, this panel mounted indicator is easy to install, and has a robust nickel plated brass body.
LED indicators for panel mounting.
The support is equipped with a standard 5 mm LED.
Supplied with nuts and washers.
The support is equipped with a standard 5 mm LED.
Supplied with nuts and washers.
Features and Benefits:
Specifications
Attribute | Value |
---|---|
Voltage Rating | 2V dc |
Light Output Colour | Red |
Mounting Hole Size | 8mm |
Lamp Type | LED |
Bezel Style | Recessed |
Bezel Colour | Chrome |
Current Rating | 20mA |
Intensity | 1.8mcd |
Length | 17mm |
