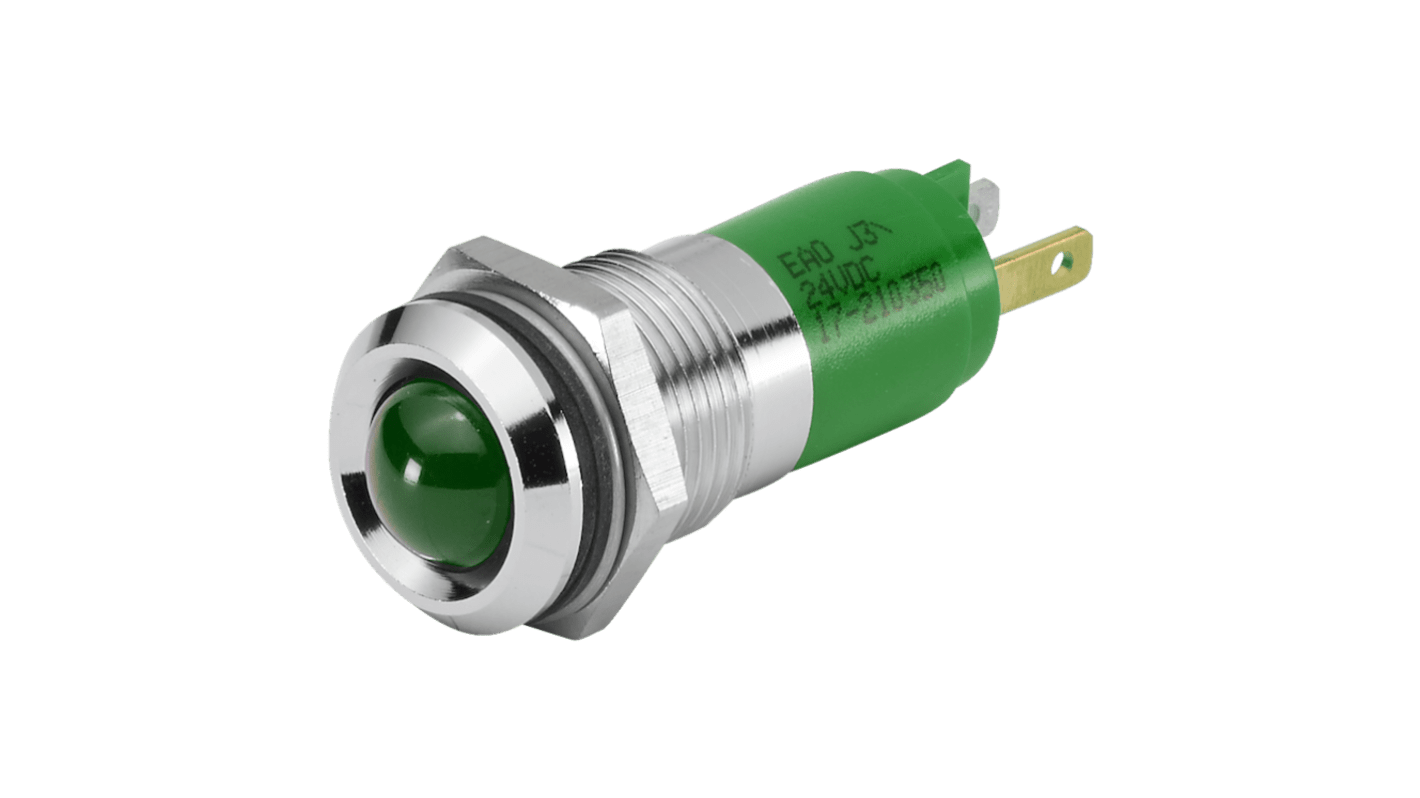

EAO 17-21 Series Indicator, Green Panel Mount Indicator, Plug-In Termination 24V 20 mA, IP65, IP40, 14
- RS Stock No.:
- 442-812
- Mfr. Part No.:
- 17-210351
- Brand:
- EAO
Subtotal (1 unit)*
£9.97
(exc. VAT)
£11.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 65 unit(s) shipping from 01 June 2026
- Plus 80 unit(s) shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.97 |
*price indicative
- RS Stock No.:
- 442-812
- Mfr. Part No.:
- 17-210351
- Brand:
- EAO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EAO | |
| Lens Colour | Green | |
| Product Type | Panel Mount Indicator | |
| Number of LEDs | 1 | |
| Maximum Forward Current | 20mA | |
| Sub Type | Indicator | |
| LED Colour | Green | |
| Terminal Type | Plug-In | |
| IP Rating | IP65, IP40 | |
| Mount Hole Size | 14 | |
| Minimum Supply Voltage | 24V | |
| Maximum Supply Voltage | 24V | |
| Input Voltage Type | DC | |
| Multicolour/Single Colour | Single Colour | |
| Luminous Intensity | 70mcd | |
| Length | 50.5mm | |
| Standards/Approvals | RoHS, UL 2011/65/EC(RoHS), 2014/35/EU, REACH | |
| Series | 17-21 | |
| Lens Finish | Polished Chromium Plated | |
| Select all | ||
|---|---|---|
Brand EAO | ||
Lens Colour Green | ||
Product Type Panel Mount Indicator | ||
Number of LEDs 1 | ||
Maximum Forward Current 20mA | ||
Sub Type Indicator | ||
LED Colour Green | ||
Terminal Type Plug-In | ||
IP Rating IP65, IP40 | ||
Mount Hole Size 14 | ||
Minimum Supply Voltage 24V | ||
Maximum Supply Voltage 24V | ||
Input Voltage Type DC | ||
Multicolour/Single Colour Single Colour | ||
Luminous Intensity 70mcd | ||
Length 50.5mm | ||
Standards/Approvals RoHS, UL 2011/65/EC(RoHS), 2014/35/EU, REACH | ||
Series 17-21 | ||
Lens Finish Polished Chromium Plated | ||
- COO (Country of Origin):
- CH
The EAO Indicator is designed for versatility and reliability, making it an essential component for panel mounting applications. Its round front form and polished chromium-plated reflector not only contribute to a sleek aesthetic but also ensure optimal visibility in various lighting conditions. Built to operate efficiently at a 24 V DC voltage, the indicator combines functionality with an appealing design, easily fitting with existing installations. Moreover, it boasts a robust IP40 protection rating for the front side and IP65 rated for enhanced durability. This indicator is perfect for those requiring a dependable visual sign of operation, showcasing a vibrant green illumination while maintaining high functionality in diverse environments.
Sleek design complements modern control panels
Robust construction suitable for demanding environments
Vibrant green illumination enhances visibility
Efficiently operates within a wide voltage range
IP65 rating ensures protection against dust and water ingress
Plug-in terminals simplify wiring and connections
Lightweight design allows for easy installation
Sealed construction provides additional chemical resistance
